Check the quality of the anatomical coregistration

The following code makes a number of figures that can be used as quality control for the procedure to coregister the MRI with the MEG.

Please note that this is an example where the coregistration was not completely correct. The head is tilted to the left.

%% load the required data

load headmodel_mri.mat
load headshapeMEG.mat % from the fiff file
load mri_resliced.mat % resliced
load mri_segmented.mat
load sens.mat

%% figure 1

figure
ft_plot_sens(sens, 'unit', 'mm')
ft_plot_headshape(headshapeMEG, 'unit', 'mm')
ft_plot_vol(headmodel_mri, 'unit', 'mm')
ft_plot_axes([], 'unit', 'mm');

%% figure 2, MRI anatomy and brain segmentation

cfg = [];
cfg.anaparameter = 'anatomy';
cfg.funparameter = 'brain';
cfg.location = [0 0 60];
ft_sourceplot(cfg, mri_segmented)

%% figure 3 and 4, MRI anatomy and headmodel

location = [0 0 60];
figure
ft_plot_ortho(mri_resliced.anatomy, 'transform', mri_resliced.transform, 'location', location, 'intersectmesh', headmodel_mri.bnd)

figure
ft_plot_montage(mri_resliced.anatomy, 'transform', mri_resliced.transform, 'intersectmesh', headmodel_mri.bnd)

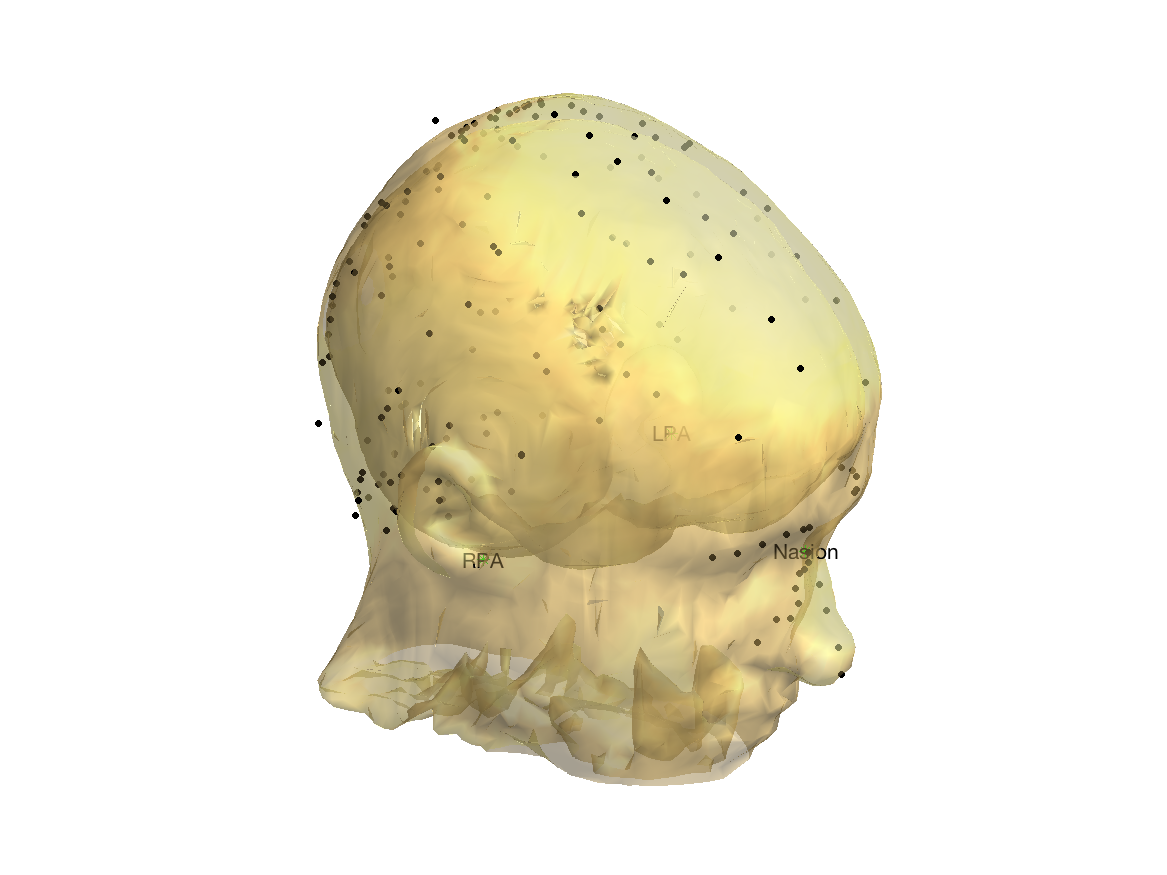

%% figure 5, MRI scalp surface and polhemus headshape

cfg = [];
cfg.tissue = 'scalp';
cfg.method = 'isosurface';
cfg.numvertices = 10000;
scalp = ft_prepare_mesh(cfg, mri_segmented);

figure
ft_plot_mesh(scalp, 'facecolor', 'skin')
lighting phong
camlight left
camlight right
material dull
alpha 0.5
ft_plot_headshape(headshapeMEG, 'vertexcolor', 'k');

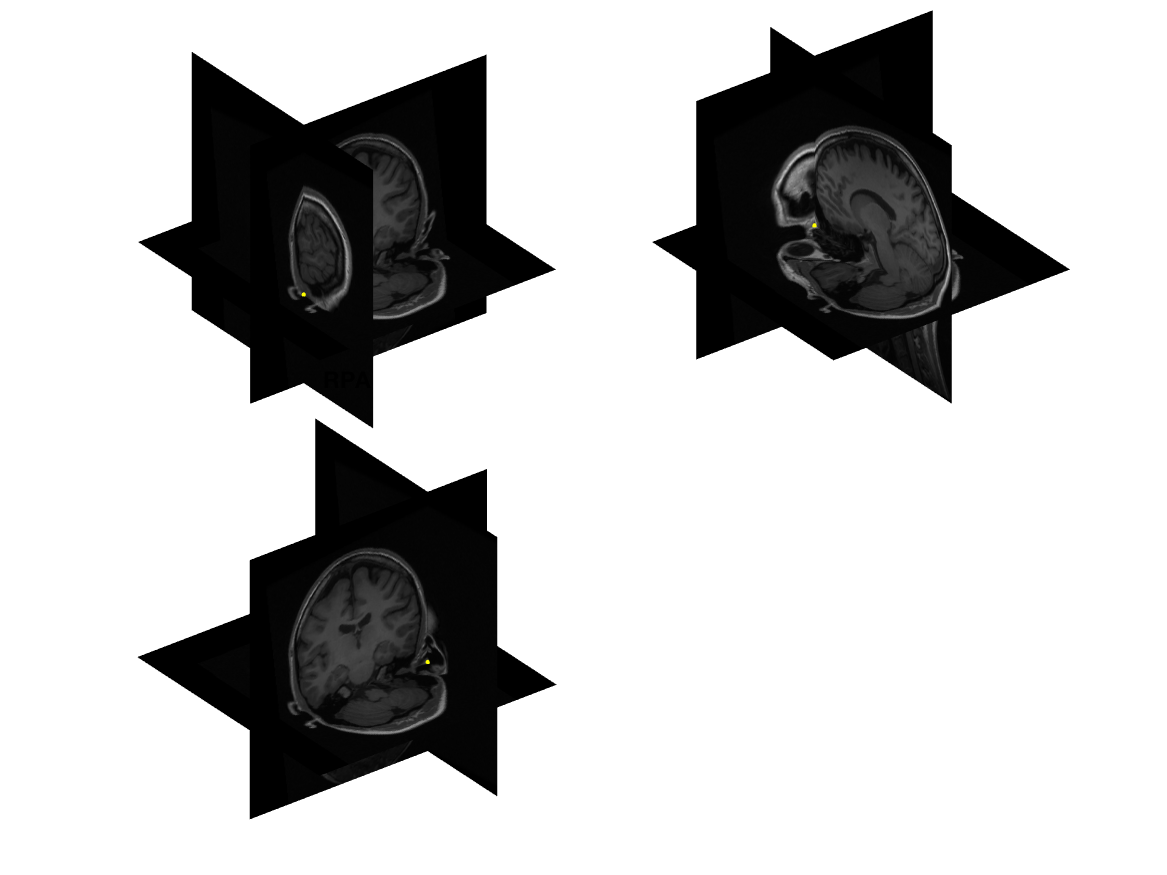

%% figure 6, MRI and anatomical landmarks

figure
for i=1:3
  subplot(2,2,i)
  title(headshapeMEG.fid.label{i});
  location = headshapeMEG.fid.pos(i,:);
  ft_plot_ortho(mri_resliced.anatomy, 'transform', mri_resliced.transform, 'style', 'intersect', 'location', location, 'plotmarker', location, 'markersize', 5, 'markercolor', 'y')
end

%% figure 7, MRI scalp surface and anatomical landmarks

figure
ft_plot_mesh(scalp, 'facecolor', 'skin')
lighting phong
camlight left
camlight right
material dull
alpha 0.3
ft_plot_mesh(headshapeMEG.fid, 'vertexcolor', 'k', 'vertexsize', 10);
