Creation of headmodels and sourcemodels for source reconstruction

This tutorial was written specifically for the PracticalMEEG workshop in Paris in December 2019, and is an adjusted version of the MEG headmodel tutorial.

Introduction

This tutorial describes how to construct a volume conduction model of the head (headmodel) and a sourcemodel, based on an individual subject’s MRI. These two geometrical objects are necessary ingredients (in combination with a specification of the MEG/EEG sensor array) for the construction of a forward model.

We will use the anatomical images that belong to the same subject whose data were analyzed in the previous tutorials (From raw data to ERP, Time-frequency analysis using Hanning window, multitapers and wavelets), thus using anatomical data of subject 15 of the multimodal face recognition dataset.

This tutorial will not show how to perform the source reconstruction itself. If you are interested in source reconstruction methods, you can go to the Localizing oscillatory sources using beamformer techniques and to the Source reconstruction of event-related fields using minimum-norm estimate tutorials.

The volume conduction model created here is MEG specific and cannot be used for EEG source reconstruction. If you are interested in EEG source reconstruction methods, you can go to the corresponding EEG headmodel tutorial.

Background

The forward model is a prerequisite for source reconstruction. It is a model that describes, for a given set of putative source locations (defined in the sourcemodel), the spatial distribution of the signals picked up by the sensor array. Each of the sources is modeled as an equivalent current dipole (ECD), which serve as elementary building blocks of arbitrarily complex source configurations. The headmodel is needed to account for the effect of volume currents.

There are different approaches to creating a forward model, each of which require a specific type of headmodel. Some examples of different MEG-based headmodels are given here. Typically, invdidual headmodels required for accurate EEG forward modelling (for example a boundary element model (BEM), or finite element model (FEM)) require a more sophisticated anatomical processing than sufficiently good headmodels for MEG. For the latter case, typically a single shell boundary that describes the inner surface of the skull provides good results.

Coregistration of anatomical MRI image with MEG sensor array

The ingredients for a forward model (i.e. geometrical information about the sensor array, the headmodel, and the sourcemodel) are all defined in space, i.e. the location of their constituting elements can be described with spatial coordinates. It may sound trivial, but before anything meaningful can be done in combining these geometrical objects, we need to ensure that all spatial coordinates are expressed in the same coordinate system, and that the metrical units are the same. That is, the objects need to be coregistered to each other.

In our experience, the realm of coordinate systems is a murky one. Typically, software packages try to hide as much as possible the murky details, often by adopting rigid conventions about the coordinate systems in which the data is to be represented. This usually results in relatively robust behavior, yet, when things go wrong, they typically go very wrong. FieldTrip aims at being lenient with respect to the exact specification of the coordinate system, and should work fine, as long as the objects are properly coregistered. This requires some basic understanding about coordinate systems and coordinate system transforms, in order to be able to diagnose any potential problems encountered.

The coordinate system in which the MEG sensors are expressed is defined based on three anatomical landmarks that can be identified on a subject’s head (i.e. the nasion, and the left and right preauricular points (lpa and rpa)). In FieldTrip, we typically coregister the anatomical image to the sensor array, which will be done with ft_volumerealign. For the current dataset, the locations of the nasion, lpa and rpa (expressed in voxel coordinates of the corresponding MRI image) are already available, so the coregistration is straightforward. Alternatively, the researcher needs to interactively determine the location of the anatomical landmarks in the MRI image, which is possible using cfg.method='interactive'. Here, we will use the ‘fiducial’ method. First, we extract the positions of the landmarks from the subject’s MRI metadata .json file:

subj = datainfo_subject(15);

file_id = fopen(subj.fidfile);
line = fgetl(file_id);
LPA = [];
RPA = [];
NAS = [];
while ~isequal(line, -1)
  if contains(line, 'LPA')
    tok = split(line, '[');
    tok = split(tok{2}, ']');
    vals = split(tok{1}, ',');
    LPA  = str2double(vals);
  end
  if contains(line, 'RPA')
    tok = split(line, '[');
    tok = split(tok{2}, ']');
    vals = split(tok{1}, ',');
    RPA  = str2double(vals);
    end
    if contains(line, 'Nasion')
    tok = split(line, '[');
    tok = split(tok{2}, ']');
    vals = split(tok{1}, ',');
    NAS  = str2double(vals);
    end
    line = fgetl(file_id);
  end
  fclose(file_id);

Next, we can inspect the location of the landmarks in the anatomical image.

  mri_orig = ft_read_mri(subj.mrifile);

  cfg = [];
  cfg.locationcoordinates = 'voxel'; % treat the location as voxel coordinates
  cfg.location = NAS;
  ft_sourceplot(cfg, mri_orig);

If the contrast of the image is a bit low, you can use the ‘shift+’ key to increase the contrast. Also, on some windows computers, the file cannot be read (you may get an error when calling ft_read_mri). If this happens, you need to manually unzip the file, and load in the unzipped file:

    gunzip(subj.mrifile);
    mri_orig = ft_read_mri(subj.mrifile(1:end-3)); % assuming the filename of the unzipped file is the same as the original one, with the .gz extension removed

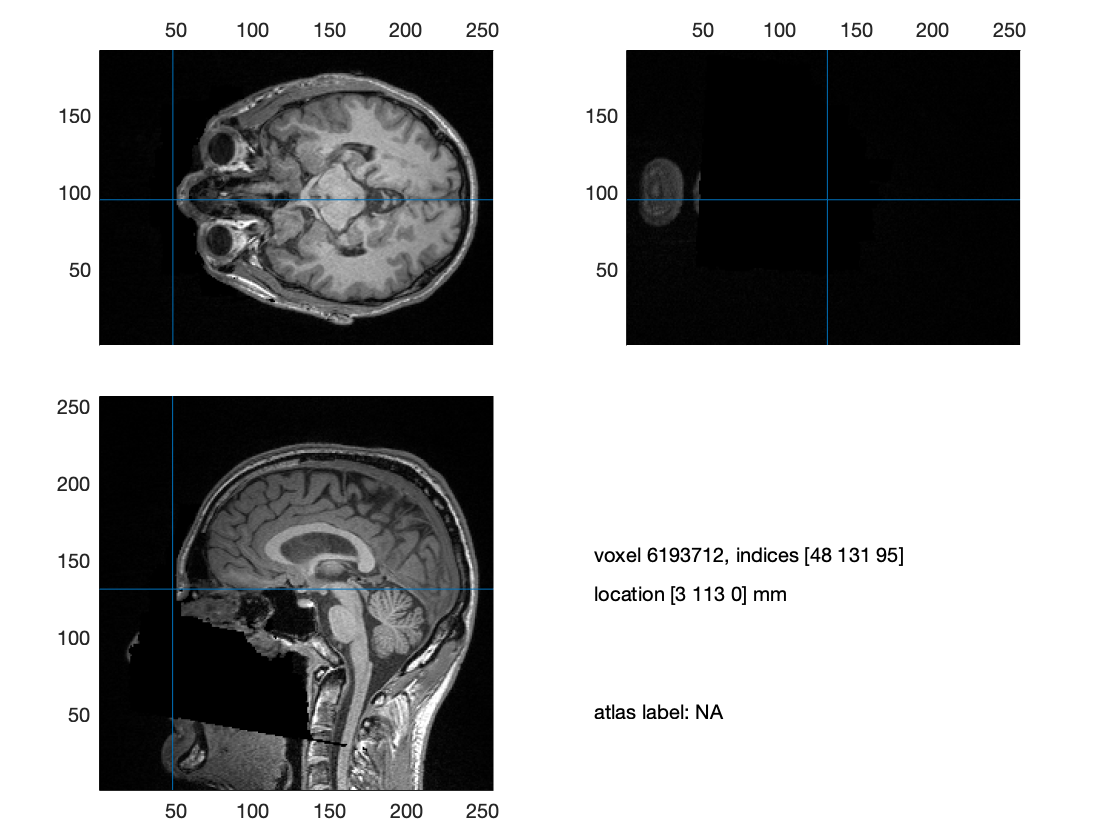

Figure: The location of the NAS indicated by the crosshair in the anatomical MRI image

Exercise 1

Inspect the location of the LPA and RPA.

Now, we can coregister the MRI image to the coordinate system as used for the MEG sensor positions:

cfg              = [];
cfg.method       = 'fiducial';
cfg.fiducial.nas = NAS(:)';
cfg.fiducial.lpa = LPA(:)';
cfg.fiducial.rpa = RPA(:)';
cfg.coordsys     = 'neuromag';
mri              = ft_volumerealign(cfg, mri_orig);

Exercise 2

Inspect the location of the NAS, LPA and RPA of the coregistered MRI. Pay special attention to the location coordinates, as compared to the location coordinates of the original MRI.

Creation of the single shell head model

Now, to create a single-shell model of the inner surface of the skull, we need a segmentation of the MRI image, which can be achieved with the function ft_volumesegment. This function uses SPM for segmentation, and in its default behavior returns a probabilistic segmentation of the grey, white and csd compartments. Here, we only need a description of the surface of the brain, which is obtained by thresholding the probabilistic combined grey/white/csf image,

thr = 0.5;

% segment the coregistered mri
cfg                = [];
cfg.output         = 'brain';
cfg.brainthreshold = thr;
seg = ft_volumesegment(cfg, mri);

% create the mesh
cfg        = [];
cfg.method = 'singleshell';
headmodel  = ft_prepare_headmodel(cfg, seg);
save(fullfile(subj.outputpath, 'anatomy', subj.name, sprintf('%s_headmodel', subj.name)), 'headmodel');

You can now visualise the headmodel in combination with the anatomical image:

cfg = [];
cfg.intersectmesh = headmodel.bnd;
ft_sourceplot(cfg, mri);

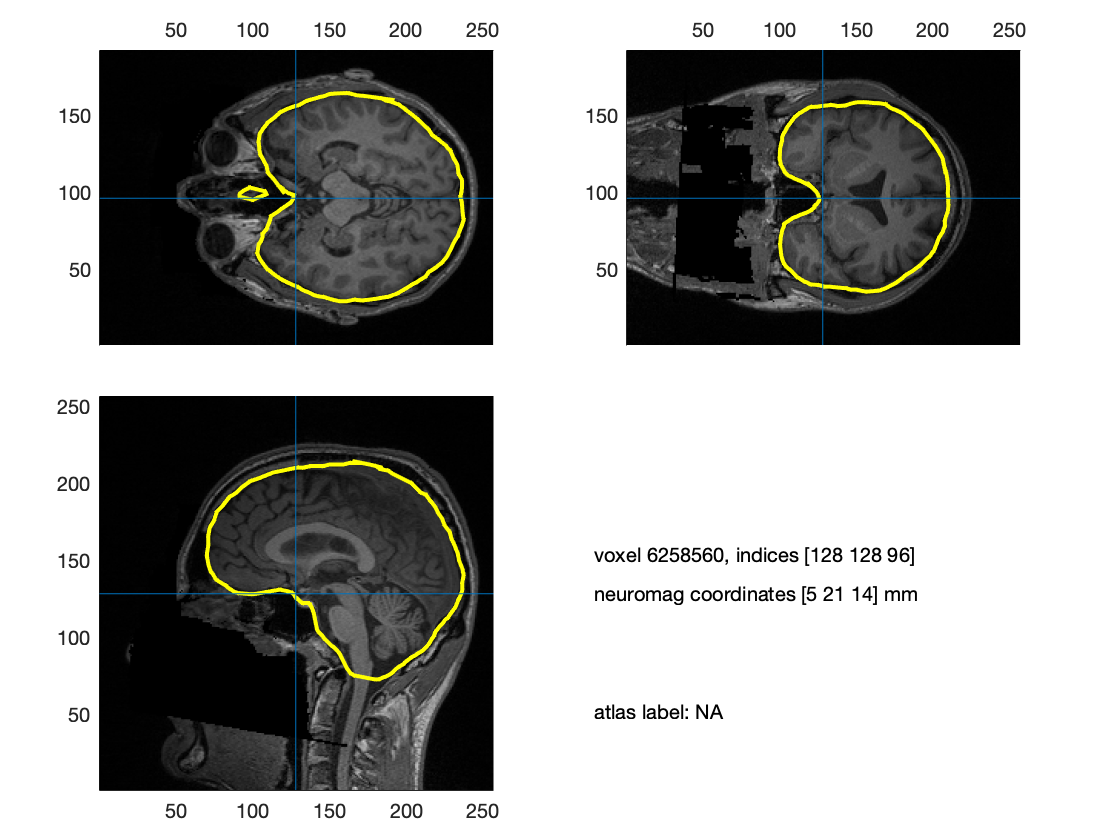

Figure: The headmodel visualised on top of the volulmetric anatomical image

Creation of a cortex based source model

To creation of a state-of-the-art sourcemodel that is based on an accurate individual cortical segmentation is described in a dedicated tutorial. Source reconstruction algorithms that assume distributed sources (for instance Minimum Norm Estimates MNEs) require these cortical models, whereas for beamformers are not absolutely necessary. The generation of cortically constrained sourcemodels, defined on a triangulated surface mesh can be rather time consuming, so we are not going to do that here.

Instead, the sourcemodels have already been computed, according to a slightly modified version of the recipe described in the aforementioned tutorial. Below, the code is referenced that was used to generate the sourcemodels. It serves as an illustrative example, because it was executed on the Donders Institute’s compute cluster, which uses a specific way to execute computational jobs (qsub). The overall idea would be however to tweak a set of shell scripts (ft_freesurferscript.sh and ft_postfreesurferscript.sh), which are located in fieldtrip/bin, and execute those on your own computer. This requires a Linux or MatOS environment, with installed freesurfer and workbench).

In contrast to the referenced tutorial, the input MRI image that serves as the starting point for the freesurfer pipeline is the image coregistered to the MEG coordinate system. This coordinate system is sufficently similar to the conventional coordinate system expected by freesurfer, so that the overall (post)freesurfer pipeline runs through fine. If, by contrast, the MEG coordinate system is according to the CTF system’s convention, an intermediate (temporary) coregistration is required.

% this part creates a freesurfer output base directory and fills it with
% an anatomical image that is going to be used by freesurfer
mkdir(fullfile(subj.outputpath, 'anatomy', subj.name, 'freesurfer'));
cfg              = [];
cfg.filename     = fullfile(subj.outputpath, 'anatomy', subj.name, 'freesurfer',       subj.name);
cfg.filetype     = 'mgz'; % not sure whether this is supported in Windows
cfg.parameter    = 'anatomy';
ft_volumewrite(cfg, mri);

% this part runs a standard automatic freesurfer pipeline, that is not
% guaranteed to work out-of-the-box. It may require some manual tweaks along
% along the how_are_the_different_head_and_mri_coordinate_systems_defined
[dum, ft_path] = ft_version;
scriptname = fullfile(ft_path,'bin','ft_freesurferscript.sh');
subj_dir   = fullfile(subj.outputpath, 'anatomy', subj.name, 'freesurfer');
cmd_str    = sprintf('echo "%s %s %s" | qsub -l walltime=20:00:00,mem=8gb -N sub-%02d', scriptname, subj_dir, subj.name, subj.id);
system(cmd_str);

% this part runs a set of postprocessing steps, and requires hcp-workbench
% to be available
[dum, ft_path] = ft_version;
scriptname = fullfile(ft_path,'bin','ft_postfreesurferscript.sh');
subj_dir   = fullfile(subj.outputpath, 'anatomy', subj.name, 'freesurfer');
templ_dir  = '/home/language/jansch/projects/Pipelines/global/templates/standard_mesh_atlases';
cmd_str    = sprintf('echo "%s %s %s %s" | qsub -l walltime=20:00:00,mem=8gb -N sub-%02d', scriptname, subj_dir, subj.name, templ_dir, subj.id);

The result of the ft_freesurferscript.sh is a ‘standard’ set of freesurfer generated files, which in this case are stored in the freesurfer/sub-15 directory. Relevant for our subsequent endeavours are the files located in the freesurfer/sub-15/surf folder. Checking the content of such a surf folder, which can be done by typing:

ls

on the MATLAB command line, you see something like this:

>> ls
lh.area            lh.inflated         lh.smoothwm         lh.smoothwm.nofix  lh.white.preaparc.H  rh.defect_chull    rh.pial             rh.smoothwm.K2.crv  rh.white
lh.area.mid        lh.inflated.H       lh.smoothwm.BE.crv  lh.sphere          lh.white.preaparc.K  rh.defect_labels   rh.qsphere.nofix    rh.smoothwm.S.crv   rh.white.preaparc
lh.area.pial       lh.inflated.K       lh.smoothwm.C.crv   lh.sphere.reg      rh.area              rh.inflated        rh.smoothwm         rh.smoothwm.nofix   rh.white.preaparc.H
lh.avg_curv        lh.inflated.nofix   lh.smoothwm.FI.crv  lh.sulc            rh.area.mid          rh.inflated.H      rh.smoothwm.BE.crv  rh.sphere           rh.white.preaparc.K
lh.curv            lh.jacobian_white   lh.smoothwm.H.crv   lh.thickness       rh.area.pial         rh.inflated.K      rh.smoothwm.C.crv   rh.sphere.reg
lh.curv.pial       lh.orig             lh.smoothwm.K.crv   lh.volume          rh.avg_curv          rh.inflated.nofix  rh.smoothwm.FI.crv  rh.sulc
lh.defect_borders  lh.orig.nofix       lh.smoothwm.K1.crv  lh.w-g.pct.mgh     rh.curv              rh.jacobian_white  rh.smoothwm.H.crv   rh.thickness
lh.defect_chull    lh.pial             lh.smoothwm.K2.crv  lh.white           rh.curv.pial         rh.orig            rh.smoothwm.K.crv   rh.volume
lh.defect_labels   lh.qsphere.nofix    lh.smoothwm.S.crv   lh.white.preaparc  rh.defect_borders    rh.orig.nofix      rh.smoothwm.K1.crv  rh.w-g.pct.mgh

That is, a bunch of files, which exist in an ‘rh’, and ‘lh’ version. Each of the cortical hemispheres is represented in a separate file. We can load these surface based representations in FieldTrip, and visualise them in the following way:

pial = ft_read_headshape({'lh.pial' 'rh.pial'});
figure;
ft_plot_mesh(pial, 'vertexcolor', pial.sulc);
h1 = light('position',[-1 0 0]);
h2 = light('position',[1 0 0]);
material dull
lighting gouraud; set(gcf,'color','w');

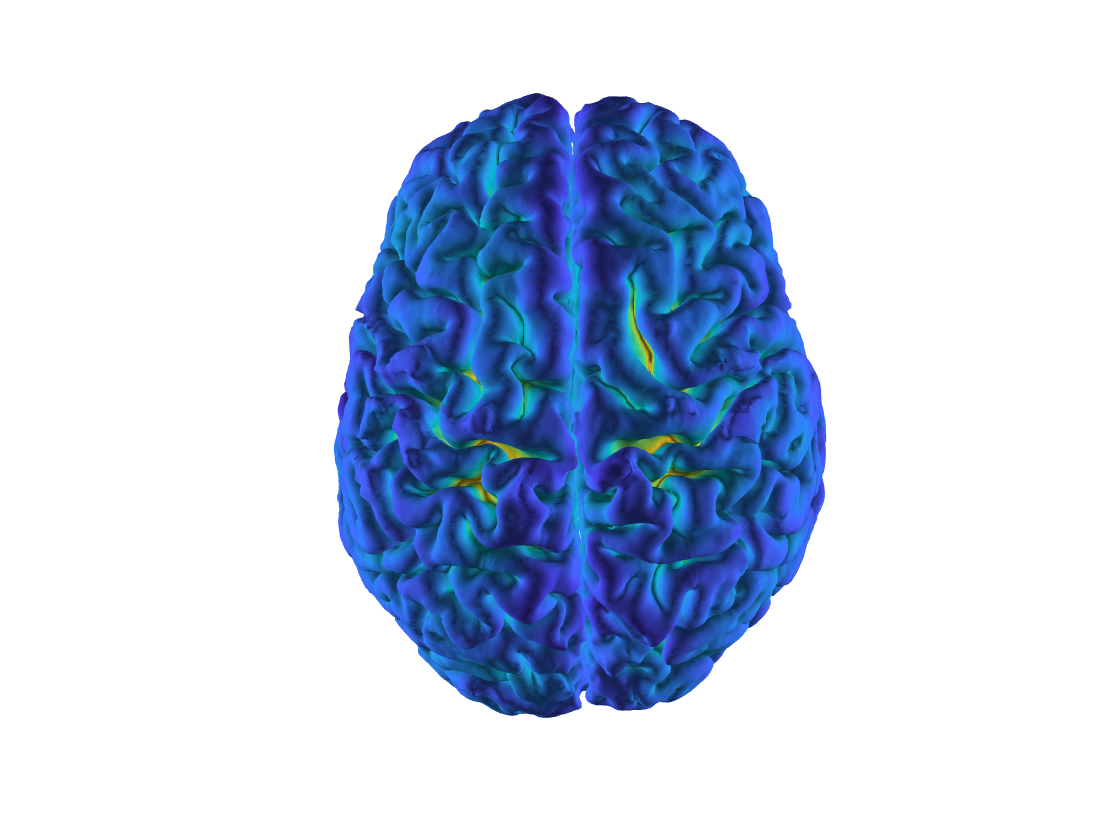

Figure: The pial surface extracted by freesurfer

Inspecting the variable ‘pial’, you will see something like this:

>> pial

pial =

struct with fields:

                pos: [259215x3 double]
                tri: [518422x3 double]
               sulc: [259215x1 double]
               curv: [259215x1 double]
               area: [259215x1 double]
          thickness: [259215x1 double]
     brainstructure: [259215x1 double]
brainstructurelabel: {2x1 cell}

The relevant topological information is represented in the ‘pos’ and ‘tri’ fields, where the 259215x3 pos-matrix contains a set of coordinates in 3D space of the vertices of a triangulated mesh, and the 518422x3 tri-matrix contains on each row the indices of the points that make up the individual triangles. The 259215x1 vectors in the sulc/curv/area/thickness/brainstructure reflect scalar parameters corresponding to local properties of the cortical sheet, at each of the vertices.

For the purpose of MEG-based source reconstruction, the freesurfer based surface needs to be downsampled a lower number of vertices, since the large number of vertices is just an overkill, given the limited spatial resolution of MEG. Moreover, each individual cortical sheet (and hemisphere) has a different number of vertex location, which makes it easy to combine these native cortical meshes across subjects. The ft_postfreesurferscript.sh does a surface-based registration to a template surface, reorganising the meshes to have a fixed number of ~164000 vertices per hemisphere, followed by a downsampling step, resulting in meshes that are topologically equivalent to the high resolution meshes, but with a lower number of vertices per hemisphere (~32k, ~8k, ~4k). The idea now is, that each of the vertices of the resulting meshes are registered to a standardised template, so they can be easily compared across subjects, facilitating group level analysis later on.

The software needed for this step is connectome workbench. The output of this step is stored here in the freesurfer/workbench directory. Checking the content of such a workbench folder, you see something like this:

>> ls
fsaverage                                          sub-15.L.midthickness.164k_fs_LR.surf.gii    sub-15.L.white.8k_fs_LR.surf.gii                  sub-15.R.midthickness.8k_fs_LR.surf.gii
sub-15.164k_fs_LR.wb.spec                          sub-15.L.midthickness.32k_fs_LR.surf.gii     sub-15.L.white.native.surf.gii                    sub-15.R.midthickness.native.surf.gii
sub-15.32k_fs_LR.wb.spec                           sub-15.L.midthickness.4k_fs_LR.surf.gii      sub-15.R.ArealDistortion_FS.164k_fs_LR.shape.gii  sub-15.R.pial.164k_fs_LR.surf.gii
sub-15.4k_fs_LR.wb.spec                            sub-15.L.midthickness.8k_fs_LR.surf.gii      sub-15.R.ArealDistortion_FS.32k_fs_LR.shape.gii   sub-15.R.pial.32k_fs_LR.surf.gii
sub-15.8k_fs_LR.wb.spec                            sub-15.L.midthickness.native.surf.gii        sub-15.R.ArealDistortion_FS.4k_fs_LR.shape.gii    sub-15.R.pial.4k_fs_LR.surf.gii
sub-15.L.ArealDistortion_FS.164k_fs_LR.shape.gii   sub-15.L.pial.164k_fs_LR.surf.gii            sub-15.R.ArealDistortion_FS.8k_fs_LR.shape.gii    sub-15.R.pial.8k_fs_LR.surf.gii
sub-15.L.ArealDistortion_FS.32k_fs_LR.shape.gii    sub-15.L.pial.32k_fs_LR.surf.gii             sub-15.R.ArealDistortion_FS.native.shape.gii      sub-15.R.pial.native.surf.gii
sub-15.L.ArealDistortion_FS.4k_fs_LR.shape.gii     sub-15.L.pial.4k_fs_LR.surf.gii              sub-15.R.aparc.164k_fs_LR.label.gii               sub-15.R.refsulc.164k_fs_LR.shape.gii
sub-15.L.ArealDistortion_FS.8k_fs_LR.shape.gii     sub-15.L.pial.8k_fs_LR.surf.gii              sub-15.R.aparc.32k_fs_LR.label.gii                sub-15.R.roi.native.shape.gii
sub-15.L.ArealDistortion_FS.native.shape.gii       sub-15.L.pial.native.surf.gii                sub-15.R.aparc.4k_fs_LR.label.gii                 sub-15.R.sphere.164k_fs_LR.surf.gii
sub-15.L.aparc.164k_fs_LR.label.gii                sub-15.L.refsulc.164k_fs_LR.shape.gii        sub-15.R.aparc.8k_fs_LR.label.gii                 sub-15.R.sphere.32k_fs_LR.surf.gii
sub-15.L.aparc.32k_fs_LR.label.gii                 sub-15.L.roi.native.shape.gii                sub-15.R.aparc.a2009s.164k_fs_LR.label.gii        sub-15.R.sphere.4k_fs_LR.surf.gii
sub-15.L.aparc.4k_fs_LR.label.gii                  sub-15.L.sphere.164k_fs_LR.surf.gii          sub-15.R.aparc.a2009s.32k_fs_LR.label.gii         sub-15.R.sphere.8k_fs_LR.surf.gii
sub-15.L.aparc.8k_fs_LR.label.gii                  sub-15.L.sphere.32k_fs_LR.surf.gii           sub-15.R.aparc.a2009s.4k_fs_LR.label.gii          sub-15.R.sphere.native.surf.gii
sub-15.L.aparc.a2009s.164k_fs_LR.label.gii         sub-15.L.sphere.4k_fs_LR.surf.gii            sub-15.R.aparc.a2009s.8k_fs_LR.label.gii          sub-15.R.sphere.reg.native.surf.gii
sub-15.L.aparc.a2009s.32k_fs_LR.label.gii          sub-15.L.sphere.8k_fs_LR.surf.gii            sub-15.R.aparc.a2009s.native.label.gii            sub-15.R.sphere.reg.reg_LR.native.surf.gii
sub-15.L.aparc.a2009s.4k_fs_LR.label.gii           sub-15.L.sphere.native.surf.gii              sub-15.R.aparc.native.label.gii                   sub-15.R.sulc.164k_fs_LR.shape.gii
sub-15.L.aparc.a2009s.8k_fs_LR.label.gii           sub-15.L.sphere.reg.native.surf.gii          sub-15.R.atlasroi.164k_fs_LR.shape.gii            sub-15.R.sulc.32k_fs_LR.shape.gii
sub-15.L.aparc.a2009s.native.label.gii             sub-15.L.sphere.reg.reg_LR.native.surf.gii   sub-15.R.atlasroi.32k_fs_LR.shape.gii             sub-15.R.sulc.4k_fs_LR.shape.gii
sub-15.L.aparc.native.label.gii                    sub-15.L.sulc.164k_fs_LR.shape.gii           sub-15.R.atlasroi.4k_fs_LR.shape.gii              sub-15.R.sulc.8k_fs_LR.shape.gii
sub-15.L.atlasroi.164k_fs_LR.shape.gii             sub-15.L.sulc.32k_fs_LR.shape.gii            sub-15.R.atlasroi.8k_fs_LR.shape.gii              sub-15.R.sulc.native.shape.gii
sub-15.L.atlasroi.32k_fs_LR.shape.gii              sub-15.L.sulc.4k_fs_LR.shape.gii             sub-15.R.atlasroi.native.shape.gii                sub-15.R.thickness.164k_fs_LR.shape.gii
sub-15.L.atlasroi.4k_fs_LR.shape.gii               sub-15.L.sulc.8k_fs_LR.shape.gii             sub-15.R.curvature.164k_fs_LR.shape.gii           sub-15.R.thickness.32k_fs_LR.shape.gii
sub-15.L.atlasroi.8k_fs_LR.shape.gii               sub-15.L.sulc.native.shape.gii               sub-15.R.curvature.32k_fs_LR.shape.gii            sub-15.R.thickness.4k_fs_LR.shape.gii
sub-15.L.atlasroi.native.shape.gii                 sub-15.L.thickness.164k_fs_LR.shape.gii      sub-15.R.curvature.4k_fs_LR.shape.gii             sub-15.R.thickness.8k_fs_LR.shape.gii
sub-15.L.curvature.164k_fs_LR.shape.gii            sub-15.L.thickness.32k_fs_LR.shape.gii       sub-15.R.curvature.8k_fs_LR.shape.gii             sub-15.R.thickness.native.shape.gii
sub-15.L.curvature.32k_fs_LR.shape.gii             sub-15.L.thickness.4k_fs_LR.shape.gii        sub-15.R.curvature.native.shape.gii               sub-15.R.very_inflated.164k_fs_LR.surf.gii
sub-15.L.curvature.4k_fs_LR.shape.gii              sub-15.L.thickness.8k_fs_LR.shape.gii        sub-15.R.flat.164k_fs_LR.surf.gii                 sub-15.R.very_inflated.32k_fs_LR.surf.gii
sub-15.L.curvature.8k_fs_LR.shape.gii              sub-15.L.thickness.native.shape.gii          sub-15.R.flat.32k_fs_LR.surf.gii                  sub-15.R.very_inflated.4k_fs_LR.surf.gii
sub-15.L.curvature.native.shape.gii                sub-15.L.very_inflated.164k_fs_LR.surf.gii   sub-15.R.inflated.164k_fs_LR.surf.gii             sub-15.R.very_inflated.8k_fs_LR.surf.gii
sub-15.L.flat.164k_fs_LR.surf.gii                  sub-15.L.very_inflated.32k_fs_LR.surf.gii    sub-15.R.inflated.32k_fs_LR.surf.gii              sub-15.R.very_inflated.native.surf.gii
sub-15.L.flat.32k_fs_LR.surf.gii                   sub-15.L.very_inflated.4k_fs_LR.surf.gii     sub-15.R.inflated.4k_fs_LR.surf.gii               sub-15.R.white.164k_fs_LR.surf.gii
sub-15.L.inflated.164k_fs_LR.surf.gii              sub-15.L.very_inflated.8k_fs_LR.surf.gii     sub-15.R.inflated.8k_fs_LR.surf.gii               sub-15.R.white.32k_fs_LR.surf.gii
sub-15.L.inflated.32k_fs_LR.surf.gii               sub-15.L.very_inflated.native.surf.gii       sub-15.R.inflated.native.surf.gii                 sub-15.R.white.4k_fs_LR.surf.gii
sub-15.L.inflated.4k_fs_LR.surf.gii                sub-15.L.white.164k_fs_LR.surf.gii           sub-15.R.midthickness.164k_fs_LR.surf.gii         sub-15.R.white.8k_fs_LR.surf.gii
sub-15.L.inflated.8k_fs_LR.surf.gii                sub-15.L.white.32k_fs_LR.surf.gii            sub-15.R.midthickness.32k_fs_LR.surf.gii          sub-15.R.white.native.surf.gii
sub-15.L.inflated.native.surf.gii                  sub-15.L.white.4k_fs_LR.surf.gii             sub-15.R.midthickness.4k_fs_LR.surf.gii           sub-15.native.wb.spec

The important thing to note is that the majority of files here are gifti files (with the .gii extension), rather than the legacy fileformat used by freesurfer. Gifti files are versatile files that are used to represent geometric data that are defined as tessellated meshes. Next to a specific naming scheme of the files, connectome workbench uses a specific convention for representing the different types of data. Let’s dissect the file naming in some detail:

  subjectname.<hemisphere>.<somename>.<number>k_fs_LR.<someothername>.gii

Starting off with , which here is 4, 8, 32, or 164. This refers to the resolution of the corresponding mesh. All files with the same number 'belong' together. The can be either L or R, reflecting the left or right hemispheres respectively. Then, the gives an idea of what is represented in the file. If this is 'surf', the file actually contains topological information, i.e. a combination of vertex positions and triangle definitions. For a given hemisphere and resolution, the triangle definitions will be the same for all corresponding surf.gii files, only the positions differ. gives an indication of what is represented. For the surf.gii files, can be white, midthickness, pial, inflated, very_inflated, and sphere. Relevant for our further purposes are the midthickness meshes, which will be used as the sourcemodels (reflecting the halway point between the grey-white matter boundary and the pial surface), and the inflated meshes, which allow for nice visualisation in some situations.

Next to the surf.gii files, there are shape.gii and label.gii files, which contain scalar information about local properties (for instance curvature) or contain parcellation information (i.e. the anatomical parcel to which a given vertex belongs).

We can have a look at some files in a bit more detail:

white         = ft_read_headshape('sub-15.L.white.8k_fs_LR.surf.gii');
midthickness  = ft_read_headshape('sub-15.L.midthickness.8k_fs_LR.surf.gii');
pial          = ft_read_headshape('sub-15.L.pial.8k_fs_LR.surf.gii');
inflated      = ft_read_headshape('sub-15.L.inflated.8k_fs_LR.surf.gii');
very_inflated = ft_read_headshape('sub-15.L.very_inflated.8k_fs_LR.surf.gii');
sphere        = ft_read_headshape('sub-15.L.sphere.8k_fs_LR.surf.gii');

figure;
h1=subplot(2,3,1); ft_plot_mesh(white,'vertexcolor',white.thickness); lighting gouraud; material dull;light
h2=subplot(2,3,2); ft_plot_mesh(midthickness,'vertexcolor',white.thickness); lighting gouraud; material dull;light
h3=subplot(2,3,3); ft_plot_mesh(pial,'vertexcolor',white.thickness); lighting gouraud; material dull;light
h4=subplot(2,3,4); ft_plot_mesh(inflated,'vertexcolor',white.thickness); lighting gouraud; material dull;light
h5=subplot(2,3,5); ft_plot_mesh(very_inflated,'vertexcolor',white.thickness); lighting gouraud; material dull;light
h6=subplot(2,3,6); ft_plot_mesh(sphere,'vertexcolor',white.thickness); lighting gouraud; material dull;light
linkprop([h1 h2 h3 h4 h5 h6],'cameraposition');

The line with linkprop allows for simultaneous rotation of all objects, when switching on the rotate3d option in the figure.

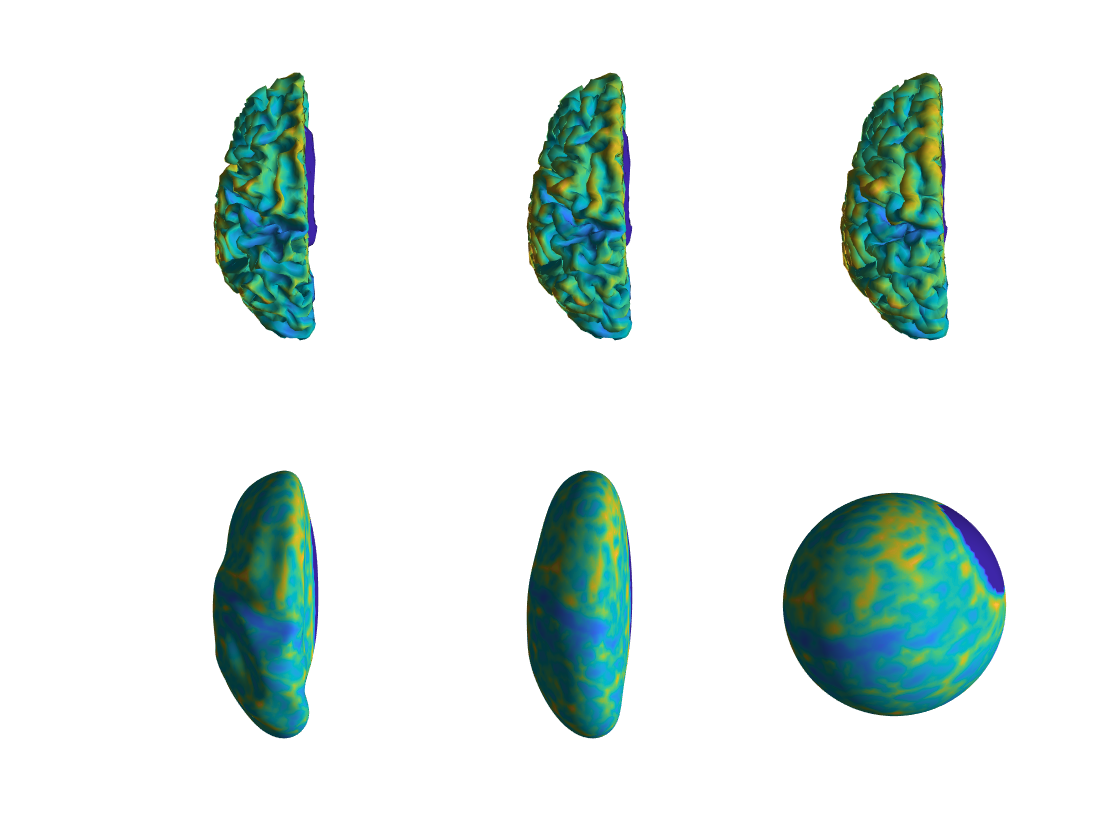

Figure: The different surfaces generated by connectome workbench

For later reference, we can now create a sourcemodel in MATLAB’s .mat format, to be easily used when performing source reconstruction later on.

wb_dir = fullfile(subj.outputpath, 'anatomy', subj.name, 'freesurfer', subj.name, 'workbench');
filename = fullfile(wb_dir, sprintf('%s.L.midthickness.8k_fs_LR.surf.gii', subj.name));
sourcemodel = ft_read_headshape({filename strrep(filename, '.L.', '.R.')});
sourcemodel = ft_determine_units(sourcemodel);
sourcemodel.coordsys = 'neuromag';
save(fullfile(subj.outputpath, 'anatomy', subj.name, sprintf('%s_sourcemodel', subj.name)), 'sourcemodel');

Importantly, before proceeding, we first need to check whether the headmodel and sourcemodel are nicely aligned to each other, and whether they are aligned to the sensor array:

subj = datainfo_subject(15);
hdr  = ft_read_header(subj.megfile{1}, 'coilaccuracy', 0);
grad = ft_convert_units(hdr.grad, 'mm');

load(fullfile(subj.outputpath, 'anatomy', sprintf('%s_headmodel', subj.name)));
load(fullfile(subj.outputpath, 'anatomy', sprintf('%s_sourcemodel', subj.name)));
headmodel   = ft_convert_units(headmodel,   'mm');
sourcemodel = ft_convert_units(sourcemodel, 'mm');

figure;hold on;
ft_plot_mesh(sourcemodel, 'facecolor', [0.8 0.2 0.2]);
ft_plot_headmodel(headmodel, 'edgecolor', 'none', 'facealpha', 0.3);
ft_plot_sens(grad);
h = light; lighting gouraud; material dull;

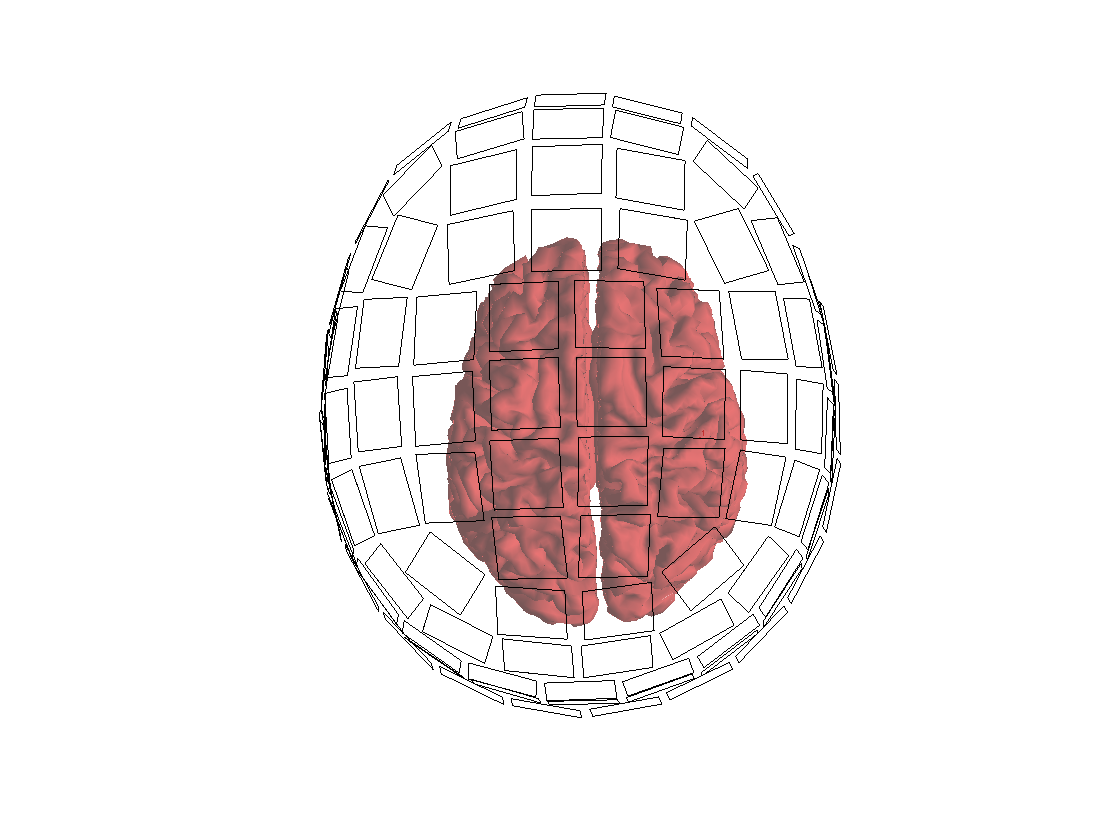

Figure: Coregistration between headmodel, sourcemodel and sensors
