OPM helmet design

Introduction

Measuring MEG with OPMs allows for flexible sensor placement. This is a significant departure from the rigidity of traditional SQUID-based systems, which confine participants within a fixed sensor array. With OPMs, researchers can now tailor the magnetometer configuration to an individual’s unique head shape and size, a benefit that is particularly impactful when studying children or patient populations. The flexible placement allows sensors to be positioned close to the scalp and to brain regions expected to be activated.

The flexible OPM sensor placement opens the door for a range of novel experimental paradigms, as subjects are no longer tethered to a single, bulky dewar; they can potentially move, interact, and perform tasks in a much more naturalistic environment, thereby capturing brain activity that is more representative of real-world cognition. It should be noted, however, that OPMs in a helmet or cap that moves along with the participant will pick up considerable artifacts due to the OPMs moving and/or rotating through the residual magnetic field in the MSR. Extra shielding of the MSR with 3 instead of 2 layers of mu metal, and/or the use of nulling coils can reduce, but not completely eliminate these movement-related artifacts. Although denoising algorithms like HFC and AMM can help to clean the data from the artifacts caused by the movements, it should also always be considered whether the measurement is not better done with a head-fixed setup.

This tutorial aims to design OPM arrays with relatively uniform whole-head coverage. It does not include forward simulations of how a hypothetical dipole in the brain is visible on the OPM sensor array, and also does not cover how to place (a limited set of) OPMs to specifically target activity in a particular brain area. Furthermore, this tutorial will not discuss how OPM recordings are processed.

Background

OPMs differ in size, depending on the manufacturer, but in general can be conceived as a rectangular box with a cable attached. For the FieldLine system, for example, the individual sensors are 13x15x35 mm. The OPMs are placed in holders which can in principle be mounted on a flexible cap just like EEG electrodes, but this comes with the potential disadvantage that the sensor orientations are not fixed and might vary depending on the head orientation and movements. With a fixed/rigid helmet as demonstrated in this tutorial, the position and orientation of all sensors is well-defined.

The tutorial demonstrates the placement of FieldLine sensors, but is equally applicable to the sensors from QuSpin, Mag4health, or other companies. The OPM sensors and the holders are modeled (outside of MATLAB) as STL files; these sensors and holders are then distributed over the shell that forms the helmet. Furthermore, additional geometrical objects can be modeled as STL files and can be used as “tools” in the fabrication process to make holes in the helmet, or to add a small rim to facilitate gluing the sensor holder to the shell.

Procedure

In this tutorial we separate the design of the complete OPM helmet into two parts: the shell, i.e. the basic helmet-shaped outline that fits around the head, and the sensor holders that are printed separately and that are glued into place. We will cover the process of designing custom OPM helmets for well-defined geometries (like a sphere), for individual participants, and to accommodate specific populations. Furthermore, it demonstrates how a given number of OPM sensors can be distributed over the helmet and how sensor orientations/rotations can be optimized. Finally, it discusses how the STL design files can be combined to make a model that can be 3D printed.

In part 1 we use different approaches to make the overall helmet shape.

• from a regular geometrical shape, like a sphere
• from an individual anatomical MRI
• from an individual 3D scan
• from a large sample of MRIs to make a population-optimized helmet

In part 2 we demonstrate different procedures to distribute the OPM sensors over the helmet:

• based on the 10-20 placement scheme for EEG electrodes
• based on an equidistant sensor distribution
• by interactively clicking to specify the sensor positions

In part 3 we look at the sensor orientation, i.e., how the sensors are rotated around their own axes. This is not too relevant for mono-axial and tri-axial sensors, but is highly relevant for bi-axial OPMs like the FieldLine v3 and Mag4Health sensors.

In part 4 we will discuss how the STL design files that have been generated are combined into a complete helmet design that can be 3D printed.

Part 1 - different helmet shapes

Spherical helmet

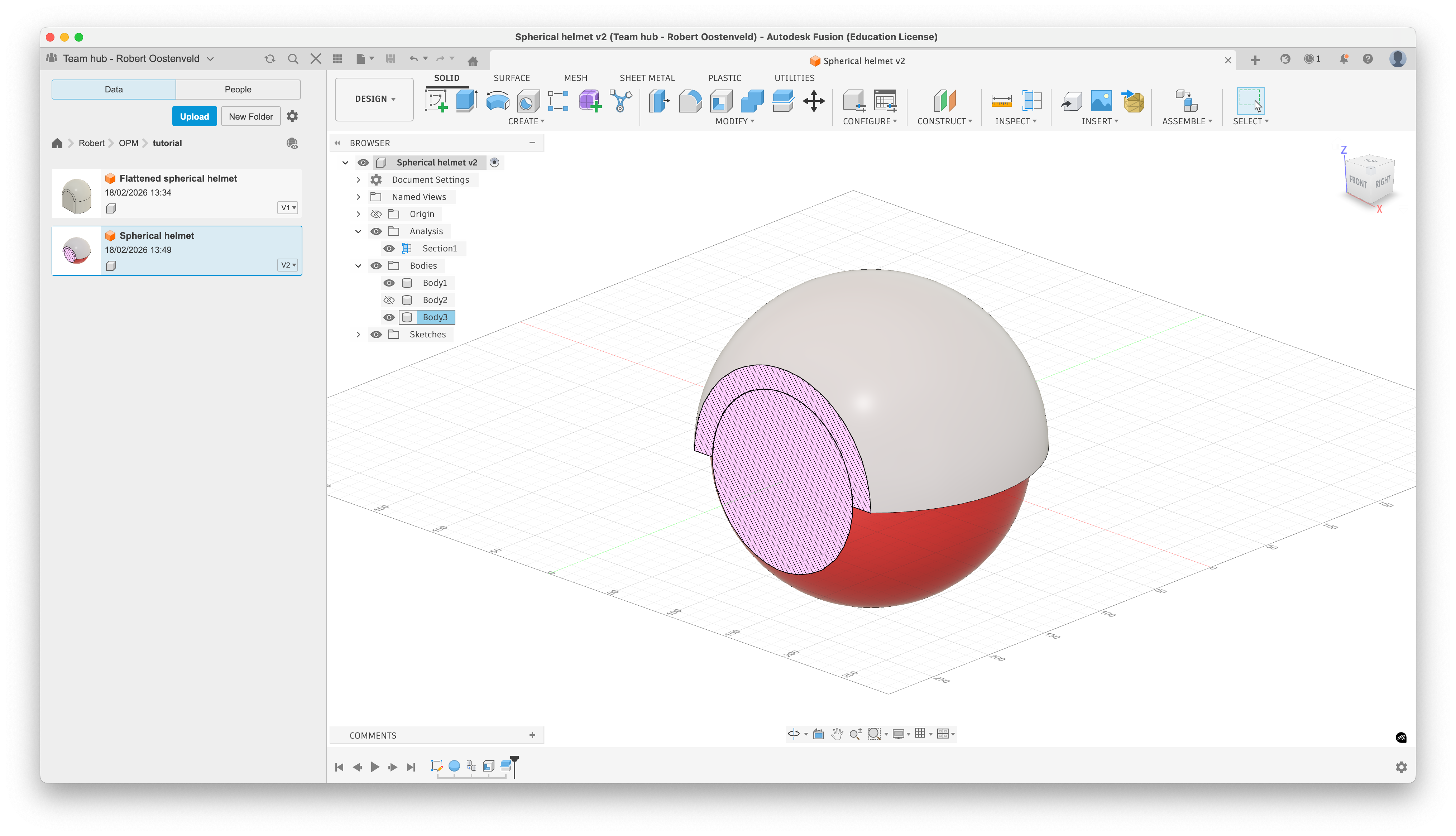

For this helmet design we start with a sphere designed in Fusion. The center of the sphere is at the origin, and the radius is 100 mm. Furthermore, we have created a hemisphere shell that has an inner radius of 100 mm and a thickness of 10 mm. The sphere represents the head and the hemisphere shell that fits exactly around it acts as the helmet.

The figure below shows the sphere/head (red) with the hemisphere/helmet (grey), with a cut-out cross section so that you can see that they perfectly align.

The STL file of the spherical head and hemisphere shell are available from our download server.

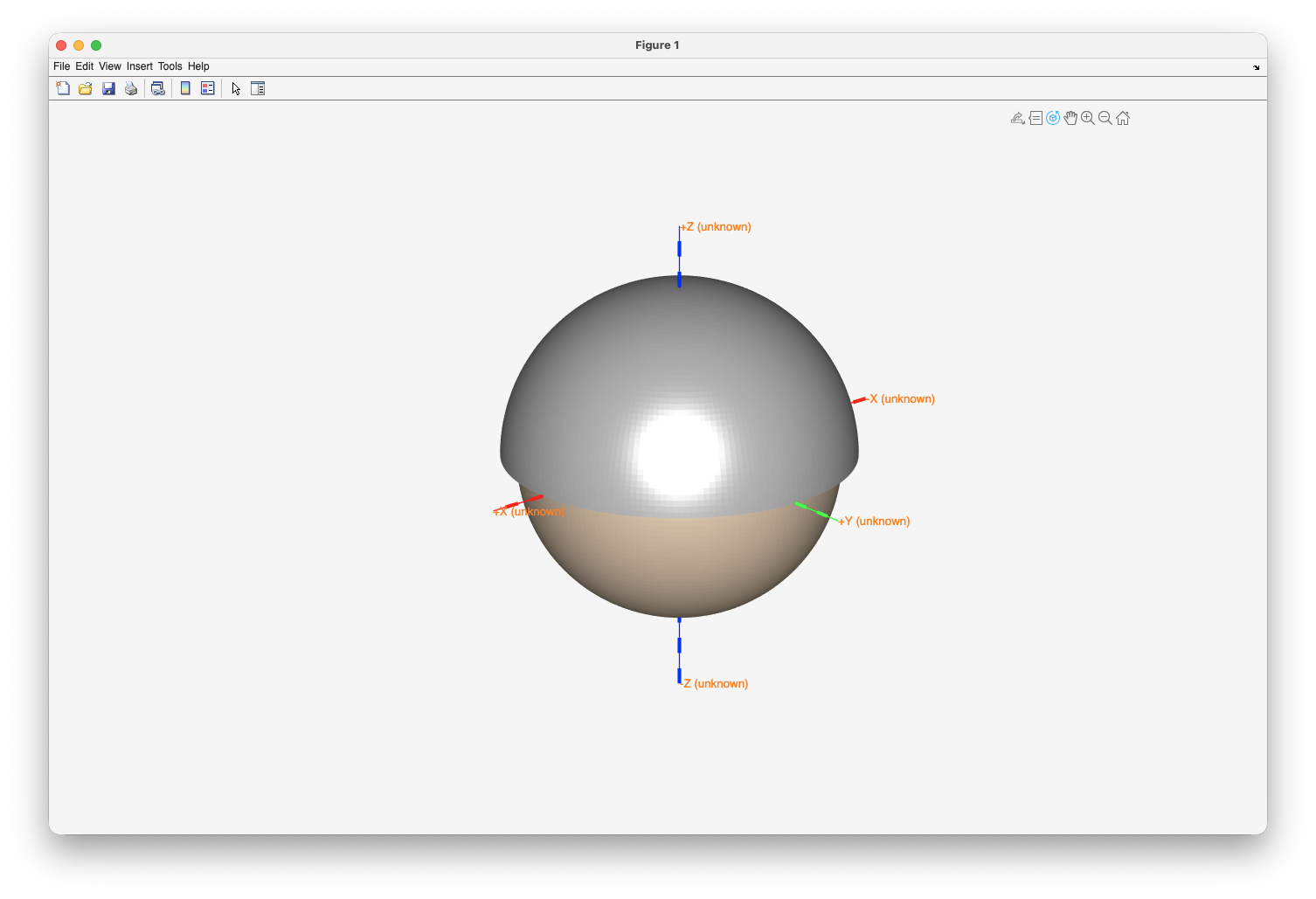

We read the two STL files into MATLAB and plot them together with the axes of the coordinate system. For this we use ft_read_headshape which is a general function to read meshes, point clouds, 3D scans, etcetera.

headshape = ft_read_headshape('spherical-head.stl')
helmet = ft_read_headshape('spherical-helmet.stl')

figure
ft_plot_mesh(headshape, 'facecolor', 'skin_light', 'axes', true)
ft_plot_mesh(helmet, 'facecolor', [0.7 0.7 0.7]) % grey
ft_headlight % or lighting phong; camlight

The units of the geometrical objects are correctly recognized as ‘mm’. We can also specify in which head coordinate system they are specified, which will ensure the correct labels along the axes.

% the CTF coordinate system has X towards the nose and Y towards the left
headshape.coordsys = 'ctf';
helmet.coordsys = 'ctf';

We proceed with determining the sensor positions. In part 2 of this tutorial we will explore different placement schemes, but for now we will distribute the OPM sensors following the (extended) 10-20 electrode placement scheme. See the 2001 paper by Oostenveld & Praamstra The five percent electrode system for high-resolution EEG and ERP measurements for details.

For the automatic placement we have to define positions on the headshape surface. Here the head is a sphere with 100 mm radius, so that is easy.

nas = [+100 0 0];
ini = [-100 0 0];
lpa = [0 +100 0];
rpa = [0 -100 0];

We can add the anatomical landmarks (often referred to as fiducials) to the headshape structure, and use ft_plot_headshape instead of ft_plot_mesh. The two functions are very similar, but the first automatically plots the fiducials (if present), whereas the second has more low-level options to optimize the figure.

headshape.fid.pos = [
    nas
    ini
    lpa
    rpa
];

headshape.fid.label = {
    'nas'
    'ini'
    'lpa'
    'rpa'
};

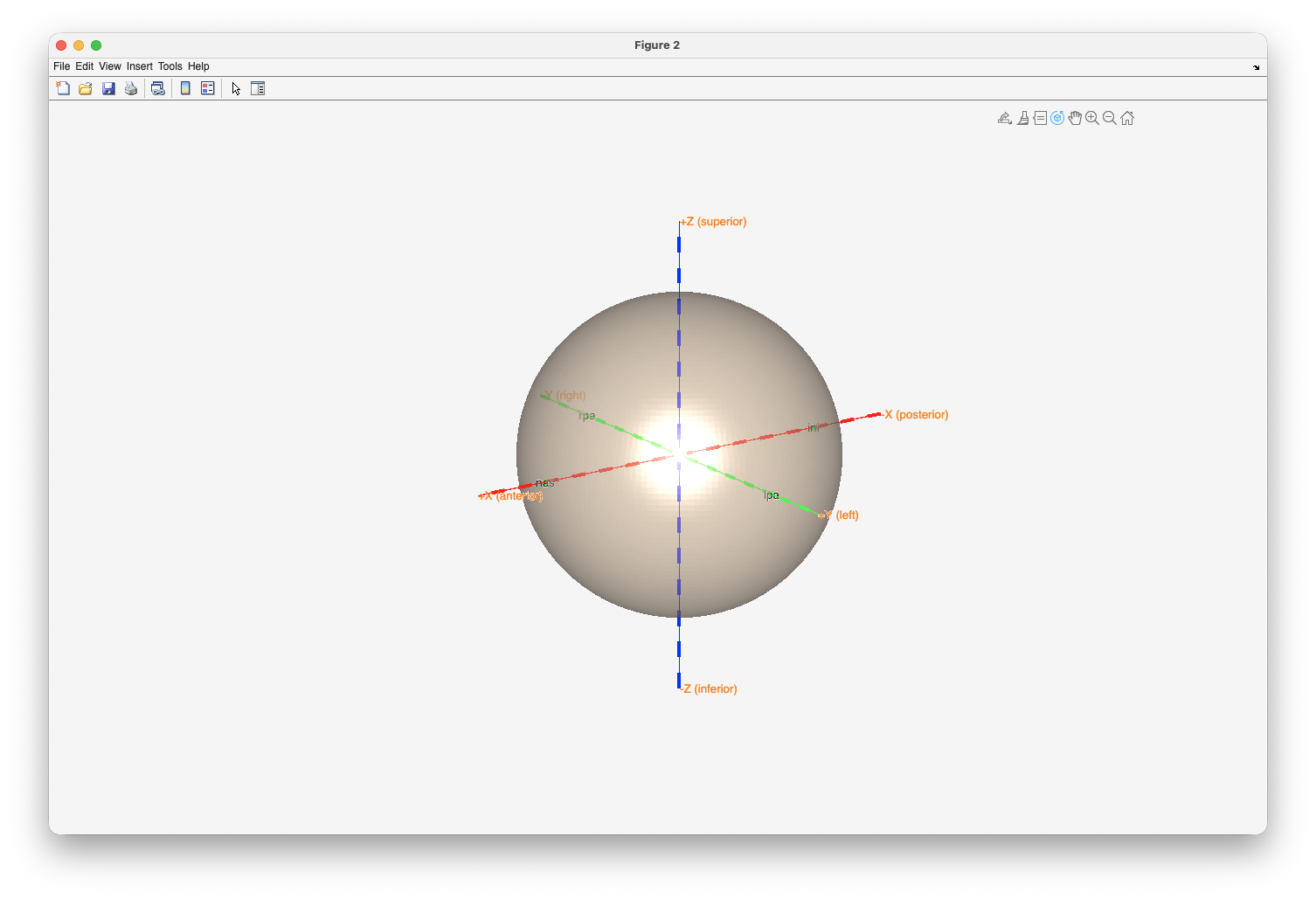

figure
ft_plot_headshape(headshape, 'facecolor', 'skin_light', 'axes', true)
alpha 0.5 % slightly transparent
ft_headlight

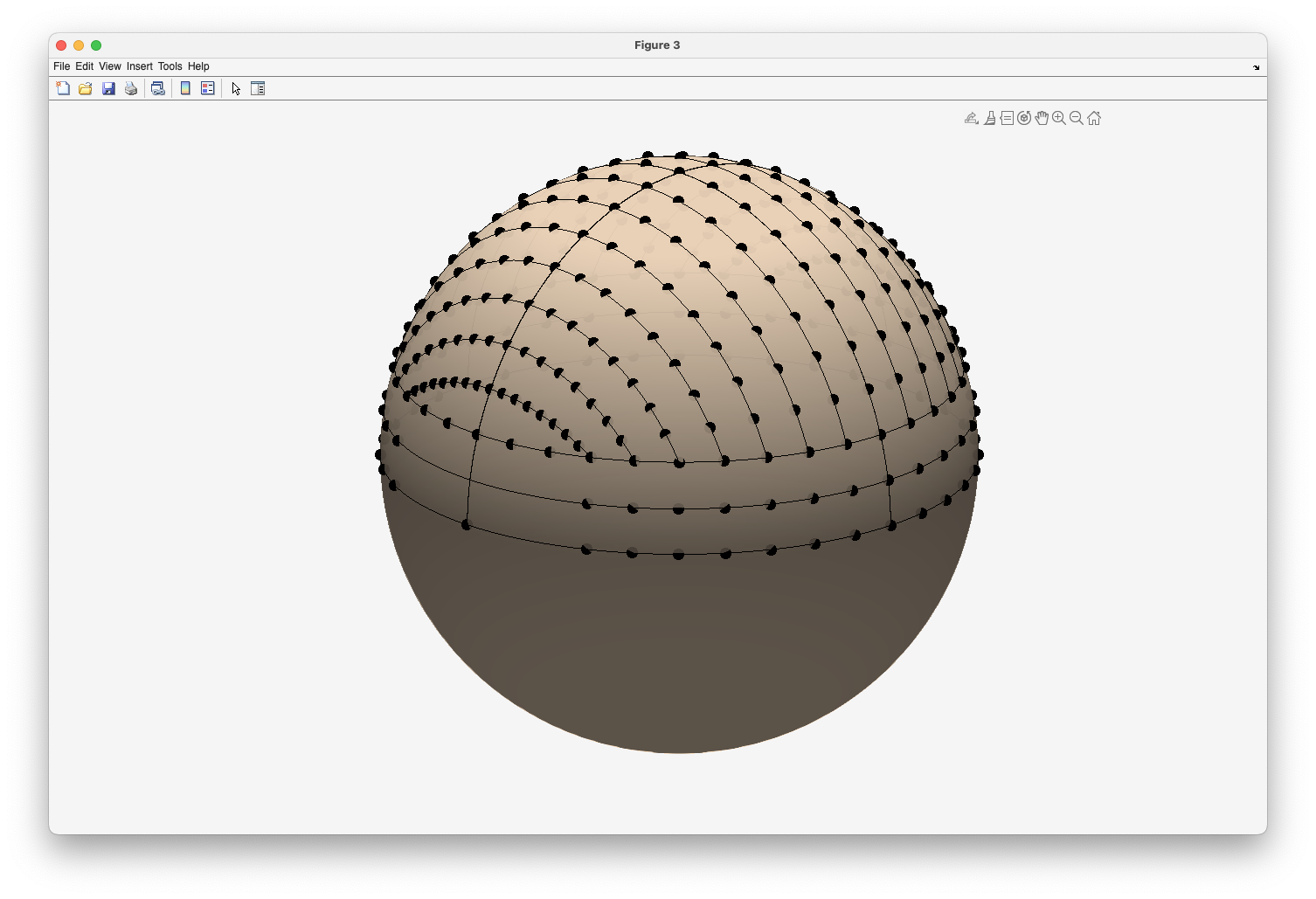

Subsequently, we call ft_electrodeplacement to automatically determine the electrode positions.

% this places a lot of electrodes, see https://doi.org/10.1016/s1388-2457(00)00527-7
cfg = [];
cfg.fiducial.nas = nas;
cfg.fiducial.ini = ini;
cfg.fiducial.lpa = lpa;
cfg.fiducial.rpa = rpa;
cfg.method = '1020';
cfg.feedback = 'yes';
elec = ft_electrodeplacement(cfg, headshape);

Note that the head is now rotated about 90 degrees around the z-axis and that it is looking towards the left of the screen, whereas previously we had rotated it so that the x-axis (going through the nose) was pointing towards the right.

In the next step, we use ft_sensorplacement, which reads the STL models for the sensor, the sensor holder, and for a “cutting tool” that will be used to make a hole in the helmet on the location where the sensor holder needs to be glued. The ft_sensorplacement function will translate the STL objects to each of the selected electrode locations on the head shape, rotate the STL object such that it is perpendicular to the surface, and then move it outward a little bit.

chansel = ft_channelselection({'eeg1020', '-Fpz', '-Oz'}, elec.label);

cfg = [];
cfg.elec = elec;
cfg.channel = chansel;
cfg.outwardshift = 5; % in mm

cfg.template = 'fieldline_sensor.stl';
[tmpcfg, sensor] = ft_sensorplacement(cfg, headshape);

cfg.template = 'fieldline_holder.stl';
[tmpcfg, holder] = ft_sensorplacement(cfg, headshape);

cfg.template = 'fieldline_hole.stl';
[tmpcfg, hole] = ft_sensorplacement(cfg, headshape);

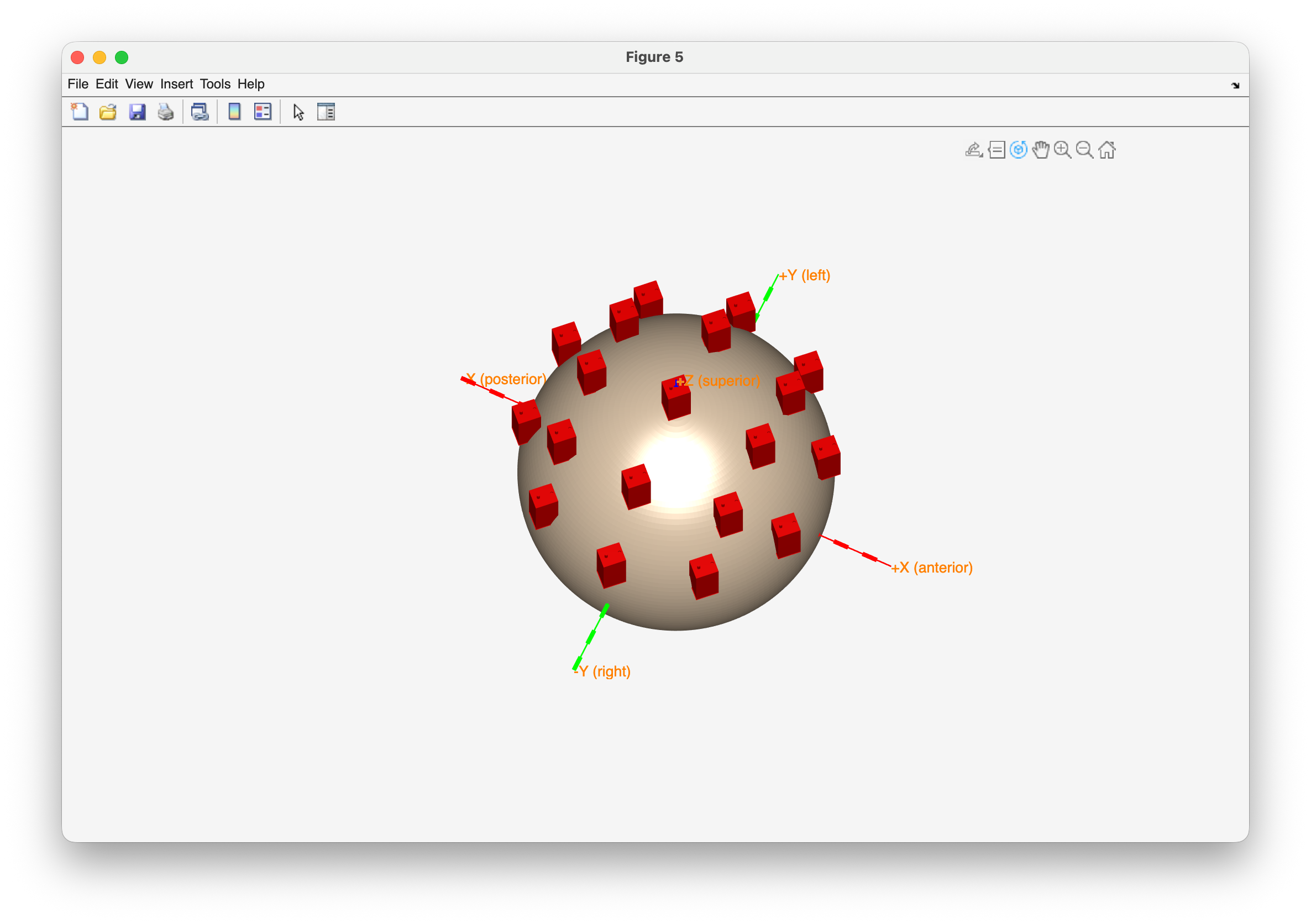

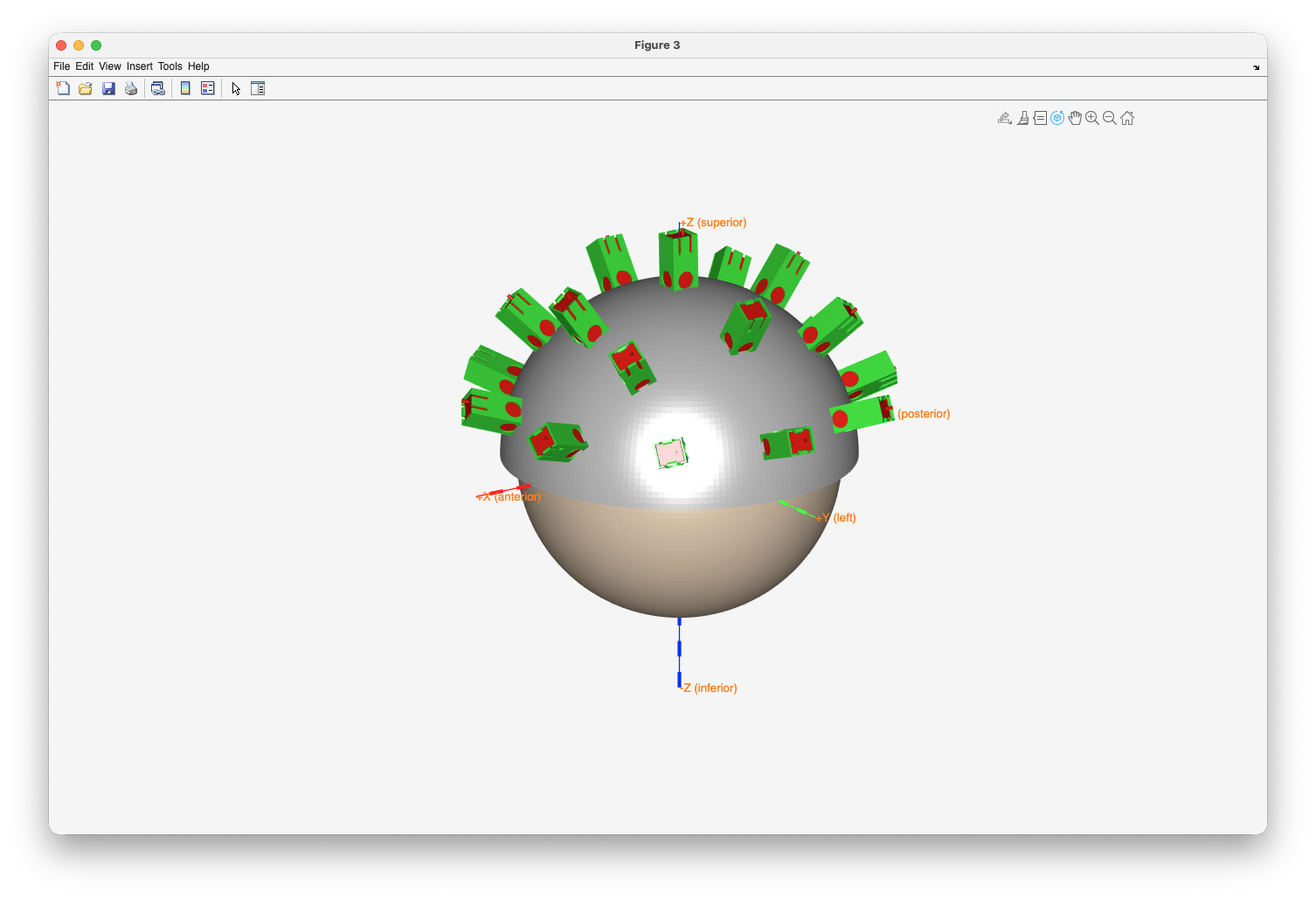

This returns a cell-array for each of the objects, which we can plot in MATLAB:

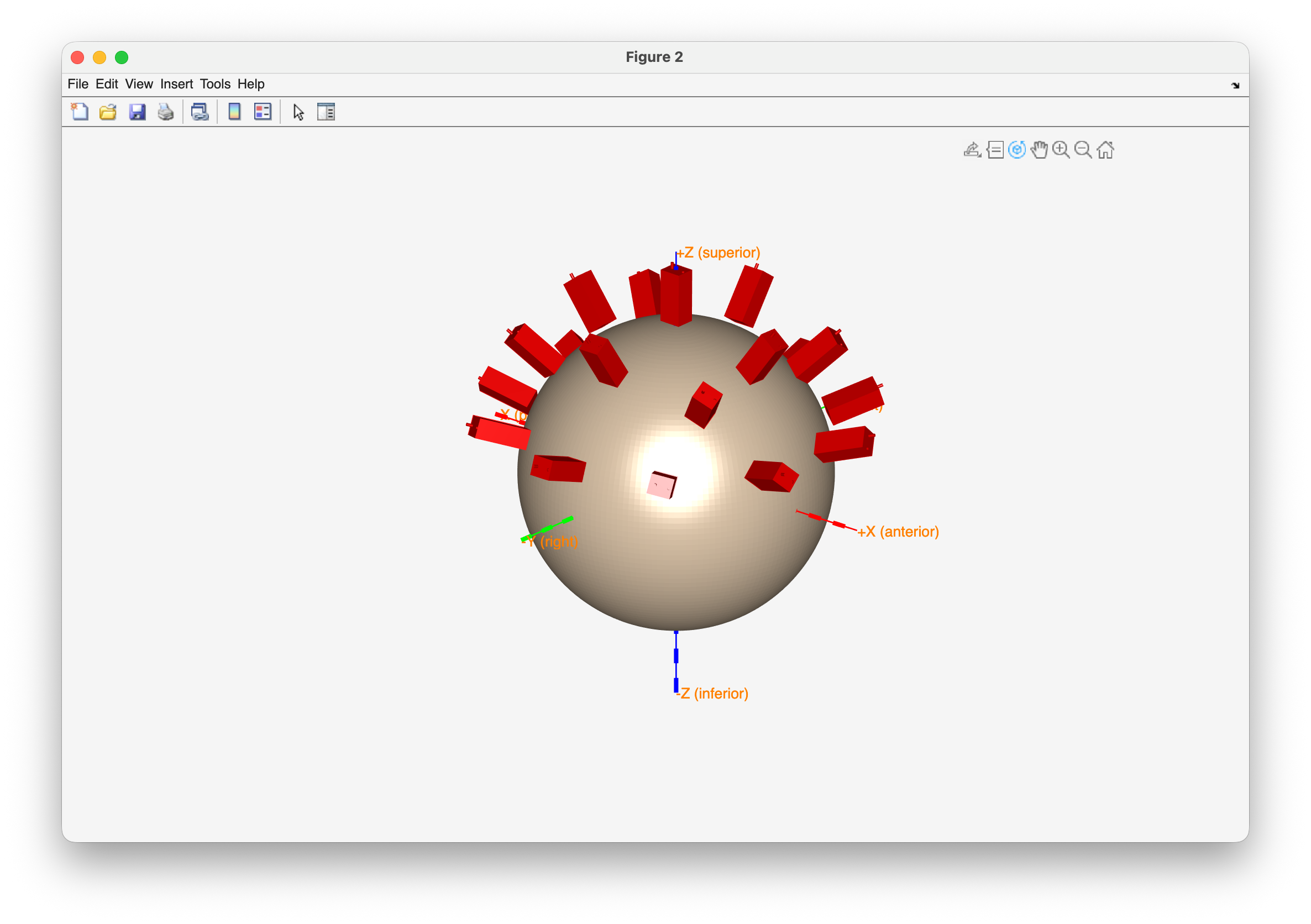

figure
ft_plot_headshape(headshape, 'facecolor', 'skin', 'facealpha', 1, 'axes', true);
ft_plot_mesh(helmet, 'facecolor', 'lightgray', 'facealpha', 0.5, 'edgecolor', 'none');
ft_plot_mesh(sensor, 'facecolor', 'r', 'facealpha', 1, 'edgecolor', 'none');
ft_plot_mesh(holder, 'facecolor', 'g', 'facealpha', 1, 'edgecolor', 'none');
% ft_plot_mesh(hole, 'facecolor', 'b', 'facealpha', 0.5, 'edgecolor', 'none');
% ft_plot_mesh(padding, 'facecolor', 'm', 'facealpha', 0.5, 'edgecolor', 'none');
ft_headlight

Subsequently we export the translated and rotated objects to STL files, so that we can combine them with the shell to make the 3D model of the complete helmet.

mkdir spherical

for i=1:numel(sensor)
    disp(chansel{i});
    filename = sprintf('spherical/sensor-%s.stl', chansel{i});
    ft_write_headshape(filename, sensor(i), 'fileformat', 'stl');
    filename = sprintf('spherical/holder-%s.stl', chansel{i});
    ft_write_headshape(filename, holder(i), 'fileformat', 'stl');
    filename = sprintf('spherical/hole-%s.stl', chansel{i});
    ft_write_headshape(filename, hole(i), 'fileformat', 'stl');
    filename = sprintf('spherical/padding-%s.stl', chansel{i});
    ft_write_headshape(filename, padding(i), 'fileformat', 'stl');
end

This results in 19 channels times 4 files, so 76 STL files on disk. In principle you only need the hole files, since the sensors don’t need to be printed (these are basically only dummies for visualisation purposes), and multiple sensor holders can be 3D printed from the original sensor STL file without translations and rotations.

In part 4 of this tutorial we will explain how to combine the different STL files into the final helmet design.

Flattened spherical helmet

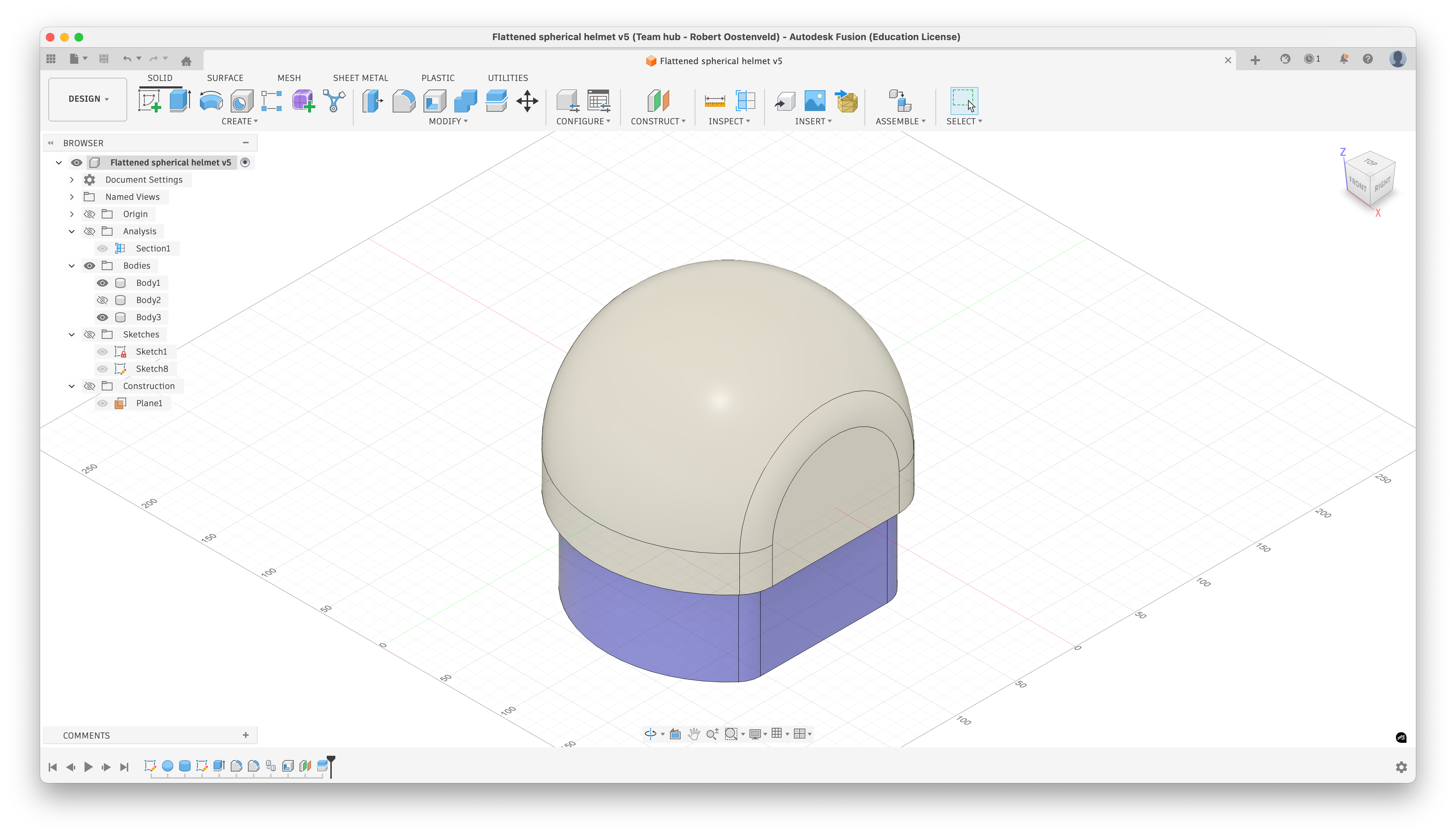

This is again a helmet that starts with a design in Fusion (or your 3D design software of choice). It consists of a sphere, that to the bottom is extended with a cylinder and subsequently flattened on the left and right hemisphere. As before, there is a STL model for the headshape and an STL model for the shell that forms the helmet.

The STL files are again available from our download server.

headshape = ft_read_headshape('flattenedspherical-head.stl')
helmet = ft_read_headshape('flattenedspherical-helmet.stl')

In the previous spherical helmet design, we had a hemisphere and hence the lowest sensors on the plane spanned by FPz-T7-T8-Oz needed to be above the mid-plane of the sphere. Now the head and helmet extend further down, so we can also place the anatomical landmarks a bit lower. You could also design the helmet such that it is tilted, i.e. higher up at the front and further down at the back, and place the anatomical landmarks correspondingly. But here we continue with a straight helmet, with the anatomical landmarks in the same plane with z = -10.

nas = [+100 0 -10];
ini = [-100 0 -10];
lpa = [ 0 +80 -10];
rpa = [ 0 -80 -10];

headshape.fid.pos = [
    nas
    ini
    lpa
    rpa
];

headshape.fid.label = {
    'nas'
    'ini'
    'lpa'
    'rpa'
};

figure
ft_plot_headshape(headshape, 'facecolor', 'skin_light', 'axes', true)
alpha 0.5 % slightly transparent
ft_headlight

You should check that the LPA and RPA landmarks are on the flat pieces that represent the temples, as it is easy to get it wrong and have them 90 degrees rotated relative to the model. Furthermore, you can see in the image that the landmarks are now slightly below the axes. That is in general not what we want, since the axes of the coordinate system pass through the fiducials. We could use ft_transform_geometry to move the head (and helmet) 10 mm up, and then give the fiducials a z-coordinate of 0 instead of -10. However, since it does not significantly affect the following steps, we will leave it like this and continue.

% specify the XYZ coordinate system as ALS, i.e. anterior-left-superior
% it is not CTF, since the axes don't go through the nasion and ears
headshape.coordsys = 'als';
helmet.coordsys = 'als';

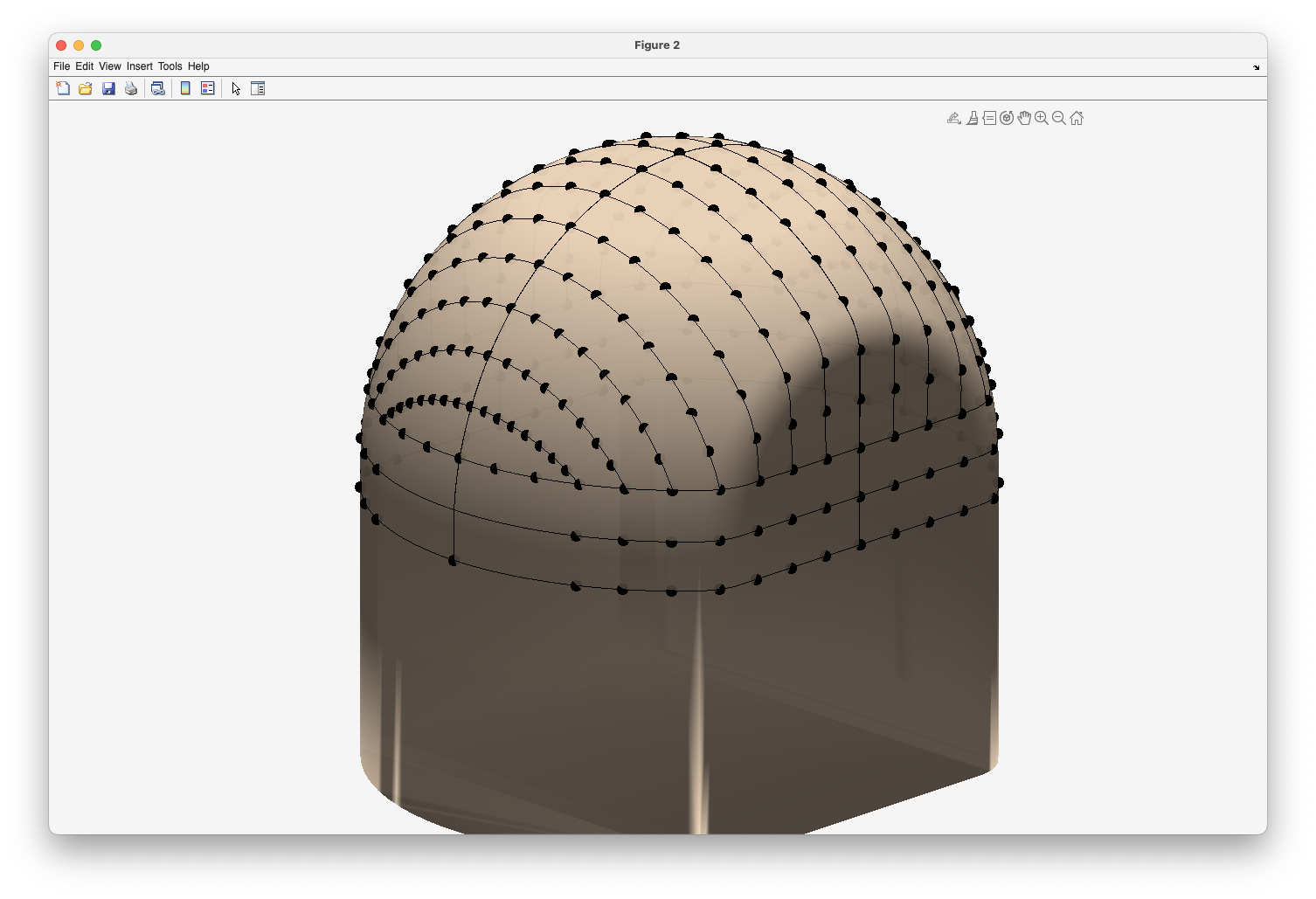

Again we can distribute the electrode positions over the head surface.

cfg = [];
cfg.fiducial.nas = nas;
cfg.fiducial.ini = ini;
cfg.fiducial.lpa = lpa;
cfg.fiducial.rpa = rpa;
cfg.method = '1020';
cfg.feedback = 'yes';
elec = ft_electrodeplacement(cfg, headshape);

We make the same selection of 19 positions and use those to place the OPM sensors.

chansel = ft_channelselection({'eeg1020', '-Fpz', '-Oz'}, elec.label);

cfg = [];
cfg.elec = elec;
cfg.channel = chansel;
cfg.outwardshift = 5; % in mm

cfg.template = 'fieldline_sensor.stl';
[tmpcfg, sensor] = ft_sensorplacement(cfg, headshape);

cfg.template = 'fieldline_holder.stl';
[tmpcfg, holder] = ft_sensorplacement(cfg, headshape);

cfg.template = 'fieldline_hole.stl';
[tmpcfg, hole] = ft_sensorplacement(cfg, headshape);

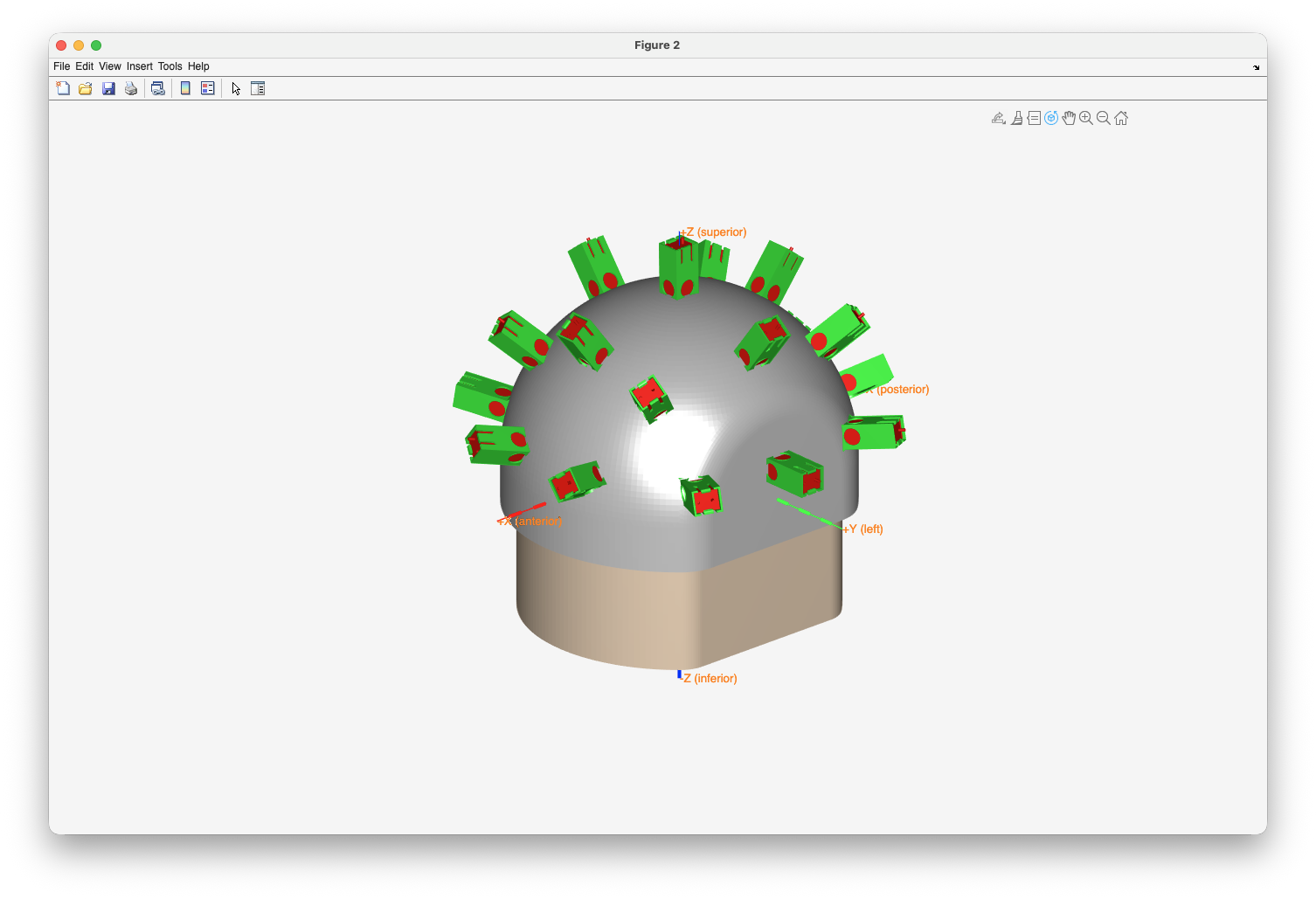

We use the same code as before to plot the headshape, helmet and sensors.

figure
ft_plot_headshape(headshape, 'facecolor', 'skin', 'facealpha', 0.5, 'axes', 1);
ft_plot_mesh(helmet, 'facecolor', 'lightgray', 'facealpha', 0.5, 'edgecolor', 'none');
ft_plot_mesh(sensor, 'facecolor', 'r', 'facealpha', 1, 'edgecolor', 'none');
ft_plot_mesh(holder, 'facecolor', 'g', 'facealpha', 1, 'edgecolor', 'none');
% ft_plot_mesh(hole, 'facecolor', 'b', 'facealpha', 0.5, 'edgecolor', 'none');
% ft_plot_mesh(padding, 'facecolor', 'm', 'facealpha', 0.5, 'edgecolor', 'none');
ft_headlight

Again we write the translated and rotated sensor positions to STL files.

for i=1:numel(sensor)
    disp(chansel{i});
    filename = sprintf('flattenedspherical-sensor-%s.stl', chansel{i});
    ft_write_headshape(filename, sensor(i), 'fileformat', 'stl');
    filename = sprintf('flattenedspherical-holder-%s.stl', chansel{i});
    ft_write_headshape(filename, holder(i), 'fileformat', 'stl');
    filename = sprintf('flattenedspherical-hole-%s.stl', chansel{i});
    ft_write_headshape(filename, hole(i), 'fileformat', 'stl');
end

In part 4 of this tutorial we will explain how to combine the different STL files into the final helmet design.

Individualized based on MRI

We start by reading the individual anatomical MRI, either from a NIFTI file or from DICOM files. With ft_determine_coordsys we can see that - although the axes are indicated as “unknown” - the x-axis goes through the nasion and the y-axis goes through the pre-auricular points, consistent with the CTF coordinate system.

mri = ft_read_mri('individual.nii');

ft_determine_coordsys(mri, 'interactive', 'no')
rotate3d

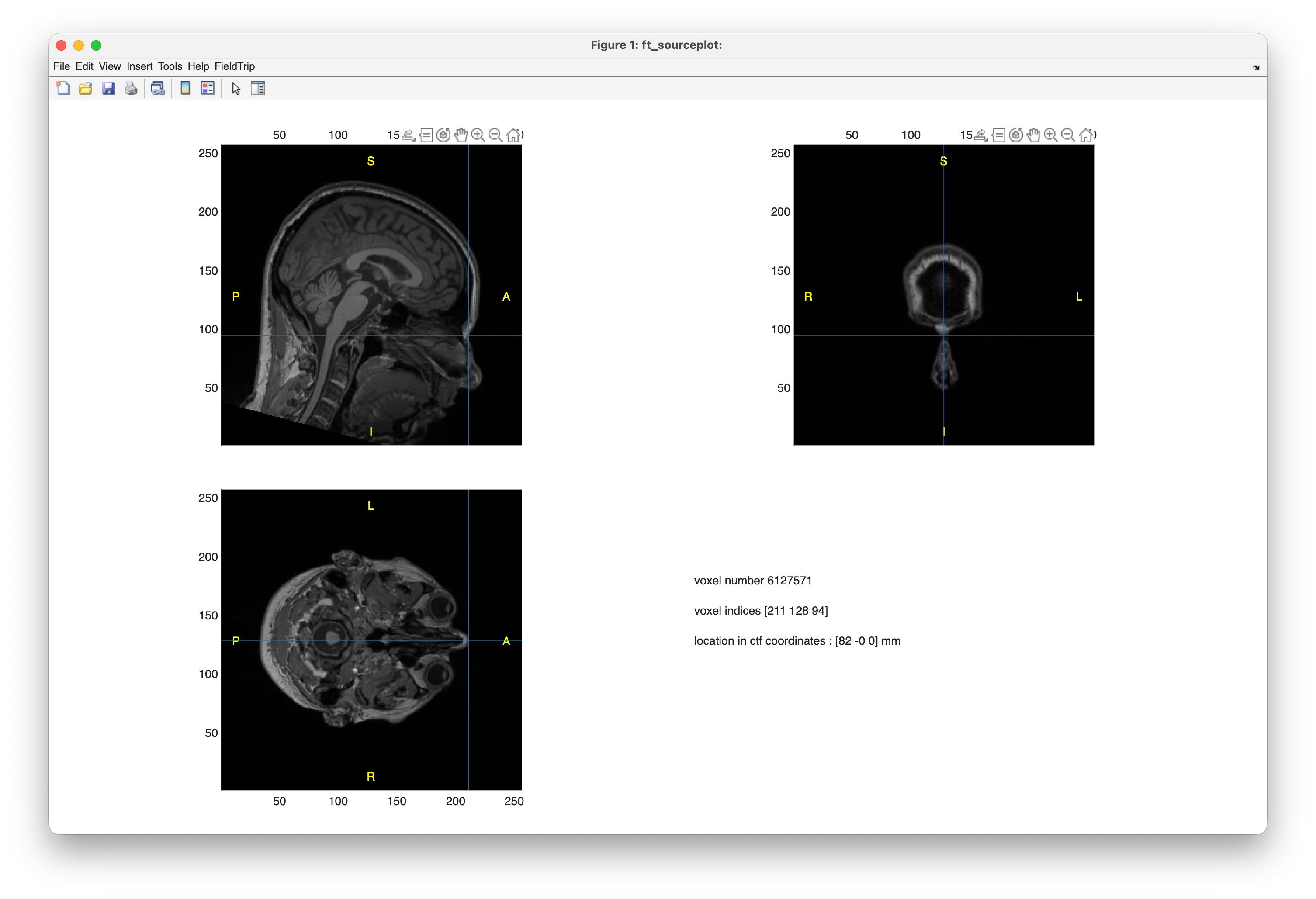

In the next step we have to determine the location of the anatomical landmarks. We will use the nasion and left and right pre-auricular points to align the MRI with the desired coordinate system (which is not strictly needed here, as it already appears to be aligned), but we need the anatomical landmarks and also the inion for the sensor placement.

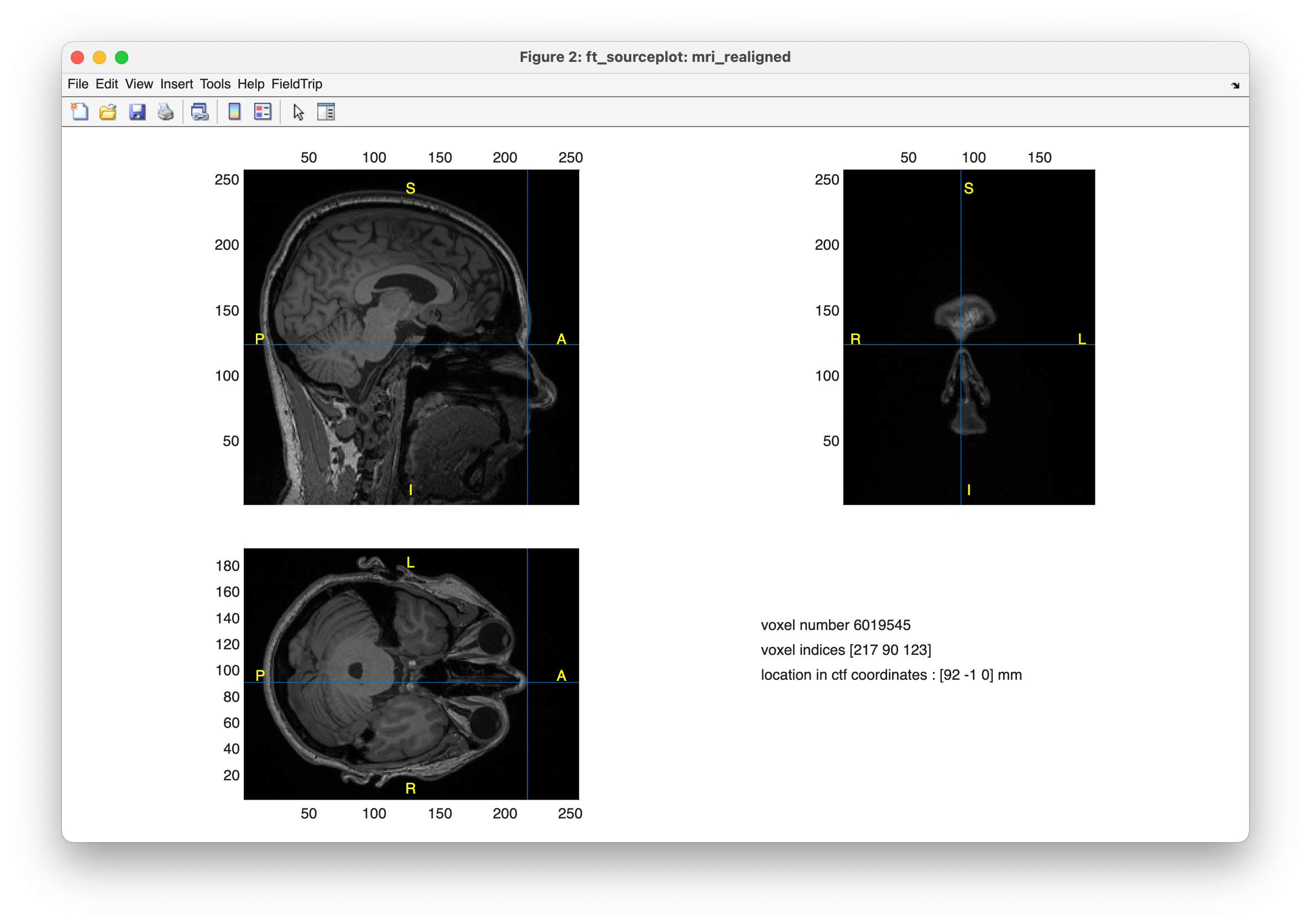

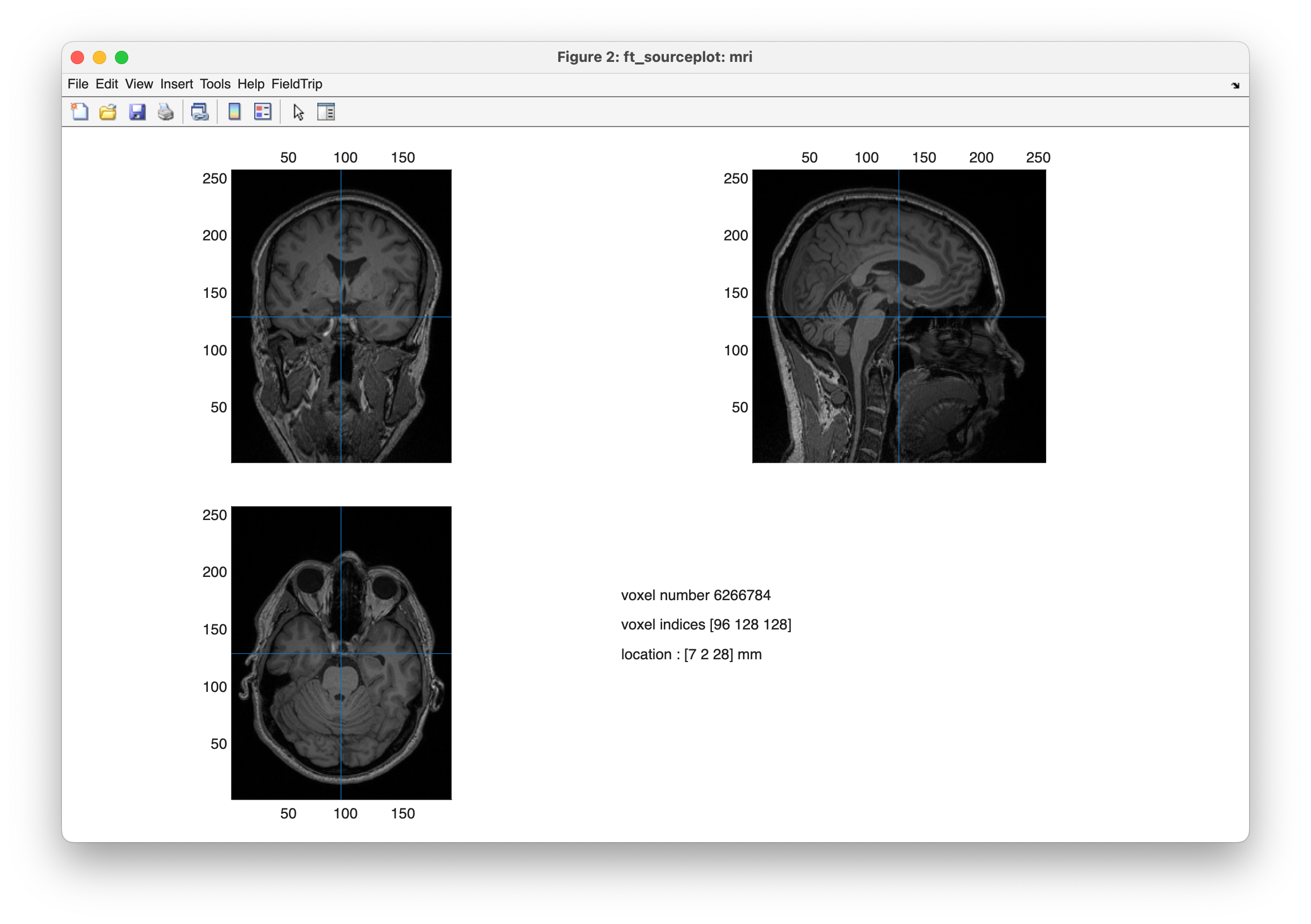

By clicking in the image, we can see the voxel indices which we write down and store in the script.

cfg = [];
cfg.method = 'ortho';
cfg.flip = 'no'; % important for identifying voxel indices
ft_sourceplot(cfg, mri);

nas_vox = [ 102 217 123 ];
ini_vox = [ 90   18 104 ];
lpa_vox = [ 20  135 103 ];
rpa_vox = [ 173 121  95 ];

Although the MRI already seemed to be aligned with the CTF coordinate system, we use three of the anatomical landmarks anyway to ensure that it is properly aligned.

cfg = [];
cfg.method = 'fiducial';
cfg.coordsys = 'ctf';
cfg.fiducial.nas = nas_vox;
cfg.fiducial.lpa = lpa_vox;
cfg.fiducial.rpa = rpa_vox;
mri_realigned = ft_volumerealign(cfg, mri);

We also want to know what the positions of the four landmarks are in head coordinates. We can check the position of each of the anatomical landmarks by using cfg.location in ft_sourceplot, where cfg.locationcoordinates allows us to specify whether the three numbers are to be interpreted as (x, y, z) in head coordinates, or as (i, j, k) in voxel coordinates. The function ft_transform_geometry allows us to apply a geometrical transformation on a Nx3 set of points or on a geometrical object like a mesh.

nas = ft_transform_geometry(mri.transform, nas_vox);
ini = ft_transform_geometry(mri.transform, ini_vox);
lpa = ft_transform_geometry(mri.transform, lpa_vox);
rpa = ft_transform_geometry(mri.transform, rpa_vox);

cfg = [];
cfg.method = 'ortho';
cfg.location = nas; % nas, ini, lpa, rpa
cfg.locationcoordinates = 'head';
ft_sourceplot(cfg, mri_realigned);

The axes of the coordinate system are not aligned with the voxels in the MRI volume. Furthermore, we don’t know for sure that the voxels are isotropic, i.e., uniform in size. For the subsequent image processing we want the voxels to be exactly 1x1x1 mm hence we reslice the MRI.

cfg = [];
mri_resliced = ft_volumereslice(cfg, mri_realigned);

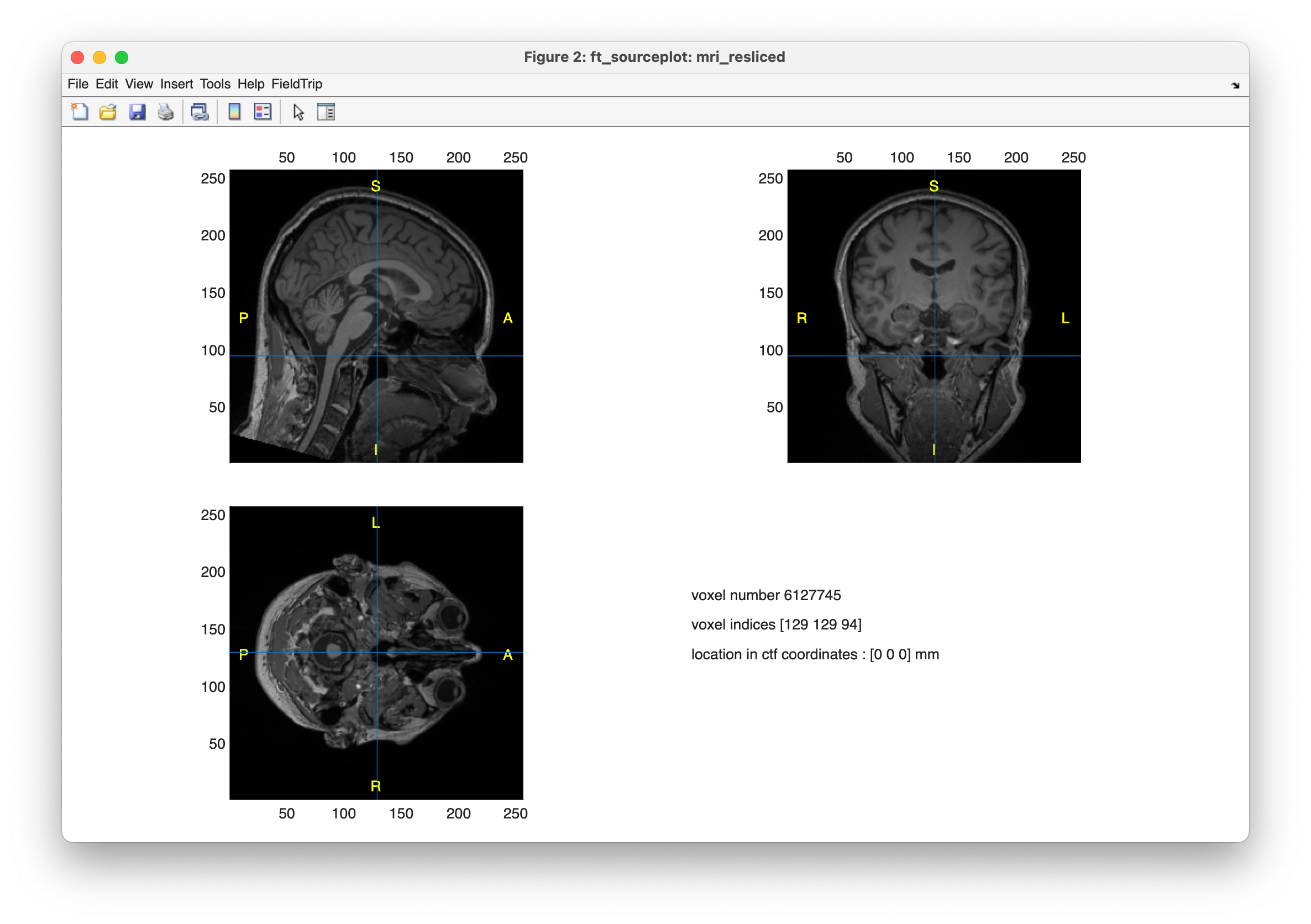

cfg = [];
cfg.method = 'ortho';
cfg.location = [0 0 0];
cfg.locationcoordinates = 'head';
ft_sourceplot(cfg, mri_resliced);

Looking at the resliced image, we see that the head does not fit so well within the “box” that was automatically fitted around it. The cfg structure in the output of the function usually contains the details used in the computation, so we can take that as starting point. We can modify the range and shift the box to the back (and hence the head to the front).

disp(mri_resliced.cfg)

cfg = [];
cfg.xrange = [ -97.5000 157.5000] - 30;
cfg.yrange = [-127.5000 127.5000];
cfg.zrange = [ -87.5000 167.5000] - 5;
mri_resliced = ft_volumereslice(cfg, mri_realigned);

cfg = [];
cfg.method = 'ortho';
cfg.location = [0 0 0];
cfg.locationcoordinates = 'head';
ft_sourceplot(cfg, mri_resliced);

We plot it again, and repeat it until we are happy with what we see.

Subsequently, we proceed by segmenting the scalp and by creating a mesh that describes the outline of the scalp.

cfg = [];
cfg.output = 'scalp';
mri_segmented = ft_volumesegment(cfg, mri_resliced);

cfg = [];
cfg.method = 'projectmesh';
cfg.numvertices = 4000;
headshape = ft_prepare_mesh(cfg, mri_segmented);

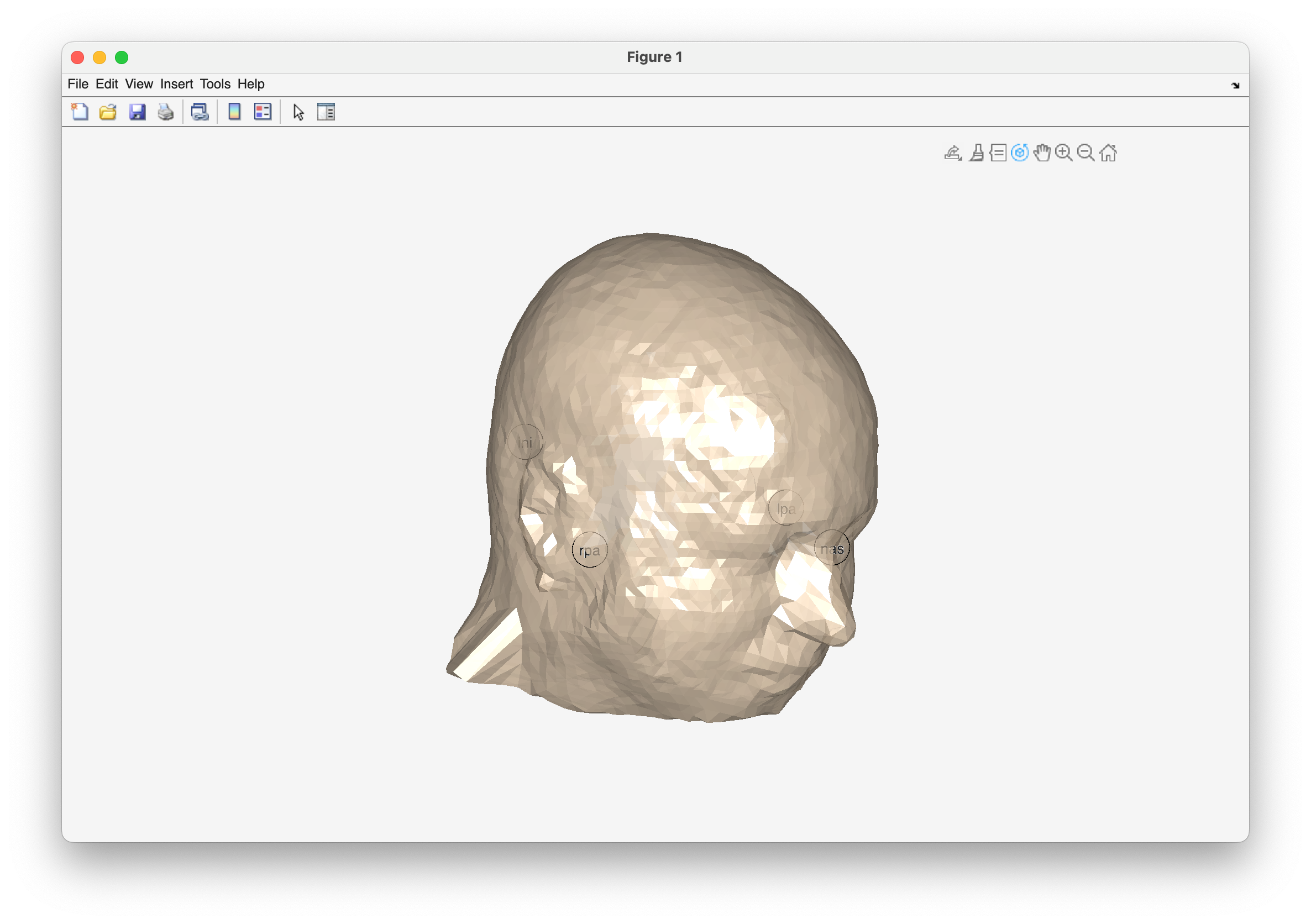

If we add the previously determined anatomical landmarks to the headshape structure, the ft_plot_headshape function will add those to the figure.

headshape.fid.pos = [
    nas
    lpa
    rpa
    ini
];

headshape.fid.label = {
    'nas'
    'lpa'
    'rpa'
    'ini'
};

figure
ft_plot_headshape(headshape, 'facecolor', 'skin', 'facealpha', 0.7, 'fidmarker', 'o', 'fidcolor', 'k', 'fidlabel', true, 'fidsize', 24)
ft_headlight

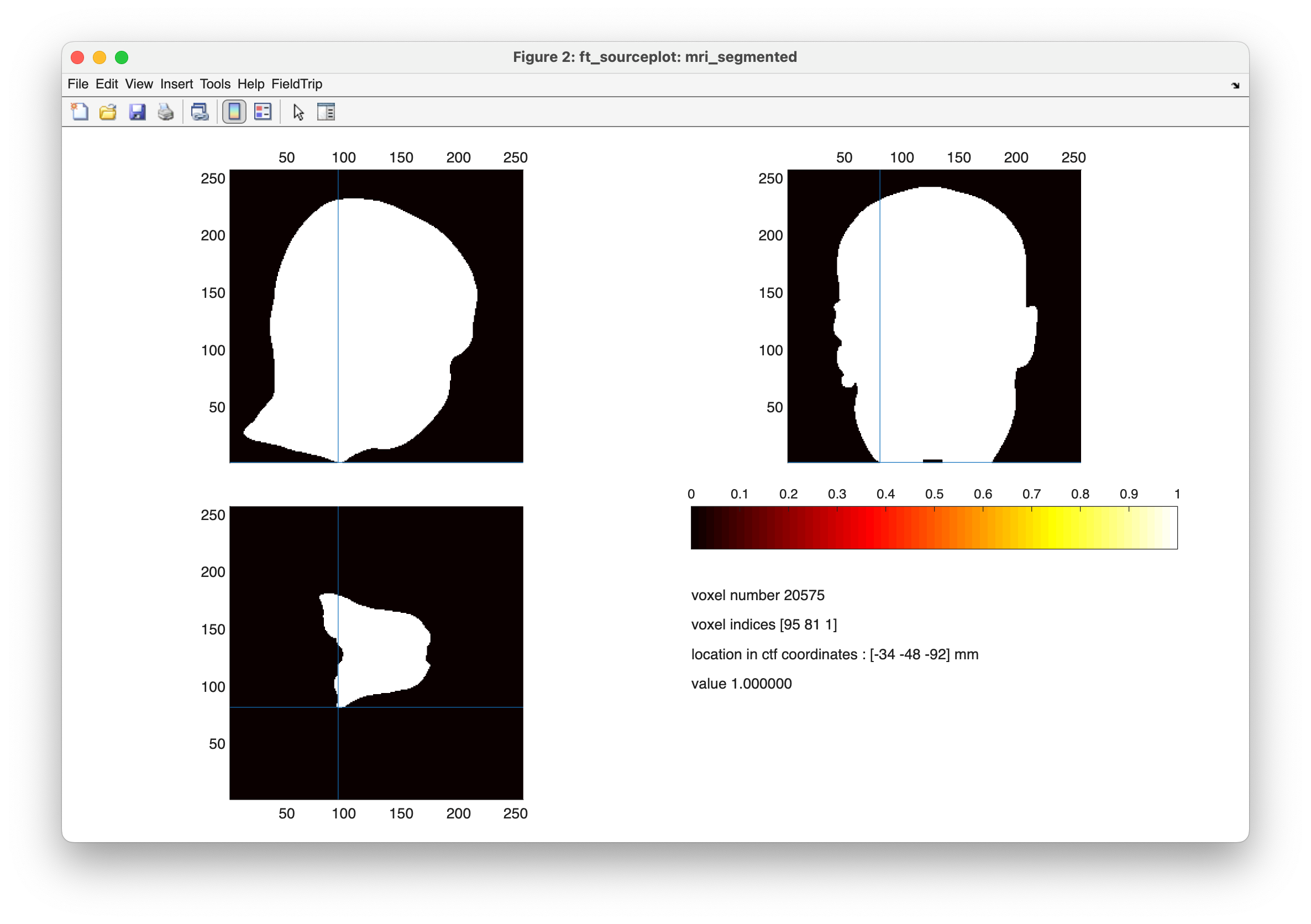

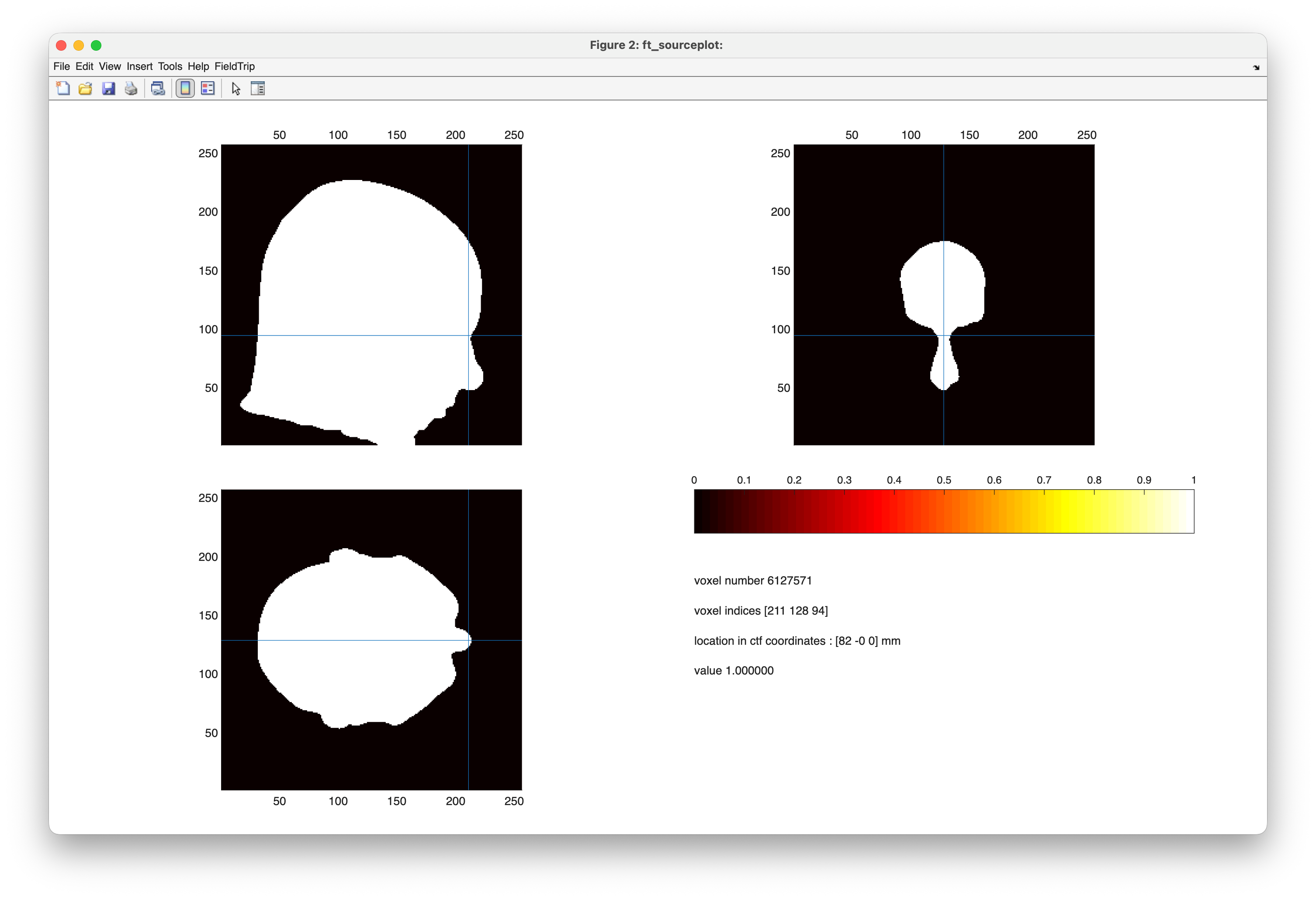

The segmented scalp is represented as a binary array, which when plotted shows as a black-and-white image. We can use tools from the MATLAB Image Processing Toolbox to adjust the segmentation.

cfg = [];
cfg.funparameter = 'scalp';
ft_sourceplot(cfg, mri_segmented)

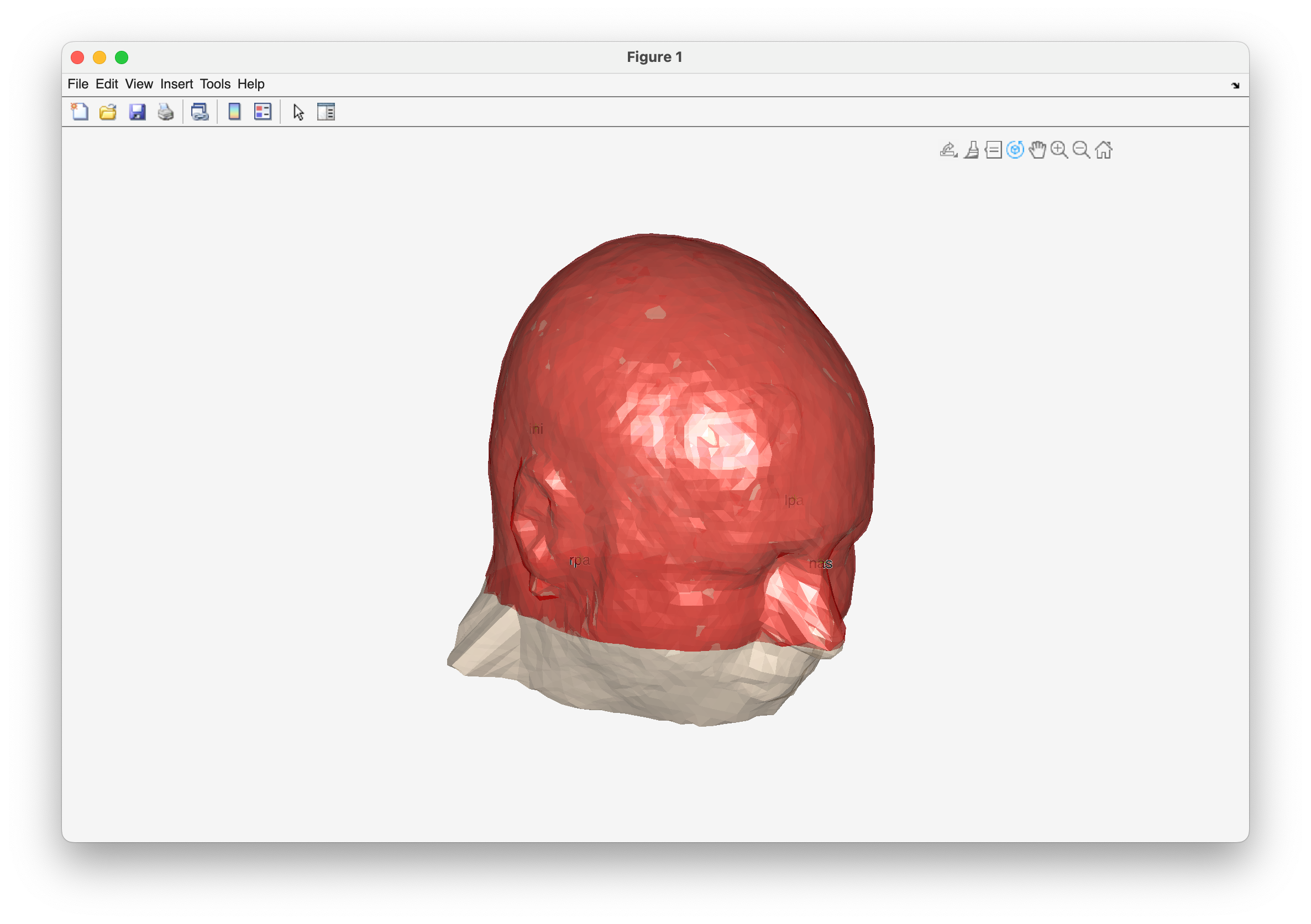

We need a helmet around the head that gives a little bit of space, so we will “inflate” the scalp segmentation by one voxel (which is 1 mm) to make an air gap. Furthermore, we “inflate” the air gap again with 5 voxels to make a 5 mm thick shell all around the head.

Since we don’t need the helmet shell to go all the way down, we mark the lowest 50 slices of the MRI as “not-scalp”. Then we use the MATLAB imdilate function to dilate or inflate the binary image.

mri_segmented.scalp(:,:,1:50) = 0;
mri_segmented.airgap = imdilate(mri_segmented.scalp,  strel('sphere', 1));
mri_segmented.helmet = imdilate(mri_segmented.airgap, strel('sphere', 5));

The mri_segmented structure now contains three binary volumes that largely overlap. For visualisation purposes we can change those into a single one with an indexed representation, i.e. where the tissues are not binary, but marked as 1, 2, 3. See ft_datatype_segmentation for details.

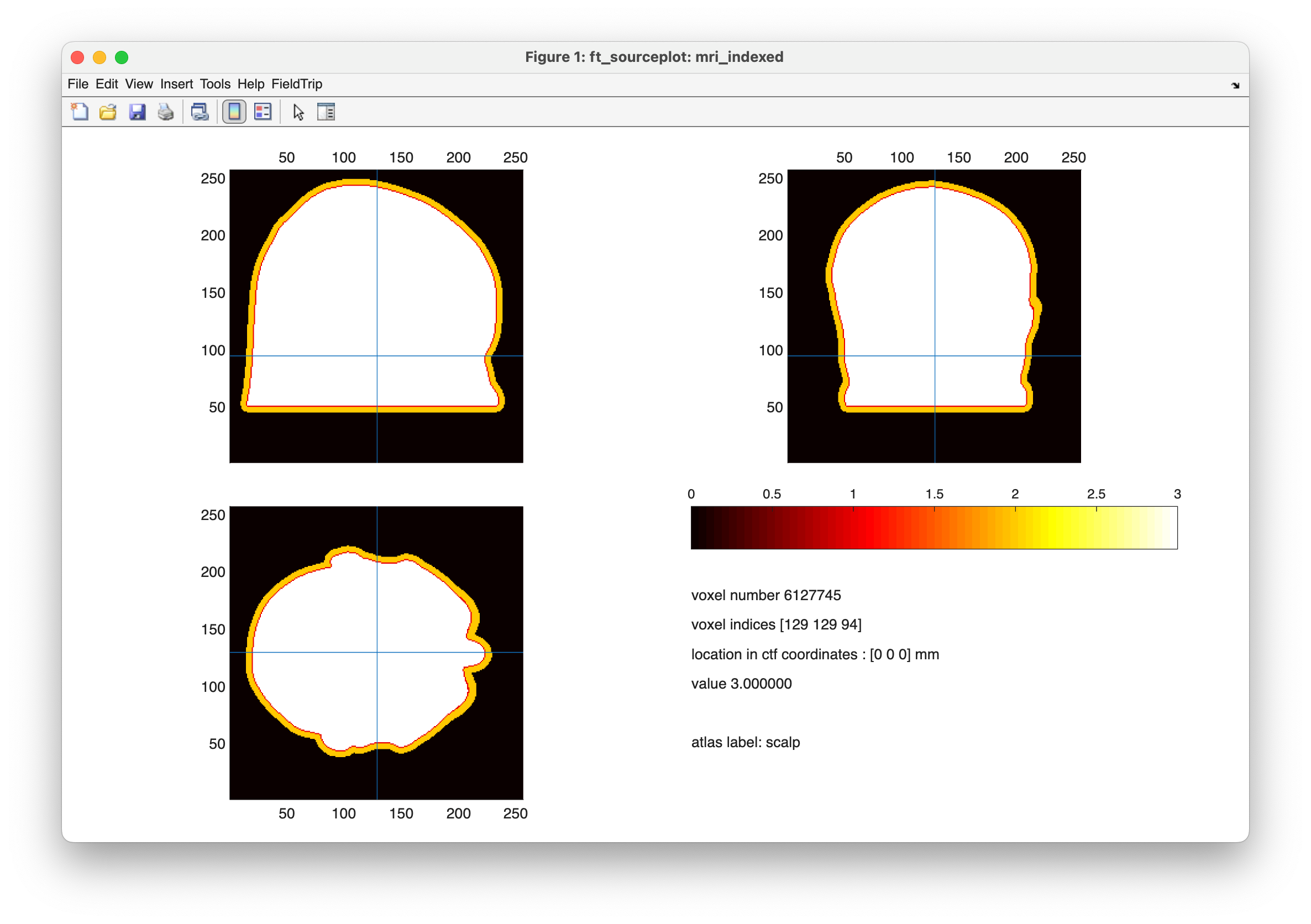

mri_indexed = ft_checkdata(mri_segmented, 'segmentationstyle', 'indexed');

cfg = [];
cfg.funparameter = 'tissue';
cfg.location = [0 0 0];
cfg.locationcoordinates = 'head';
cfg.atlas = mri_indexed;
ft_sourceplot(cfg, mri_indexed)

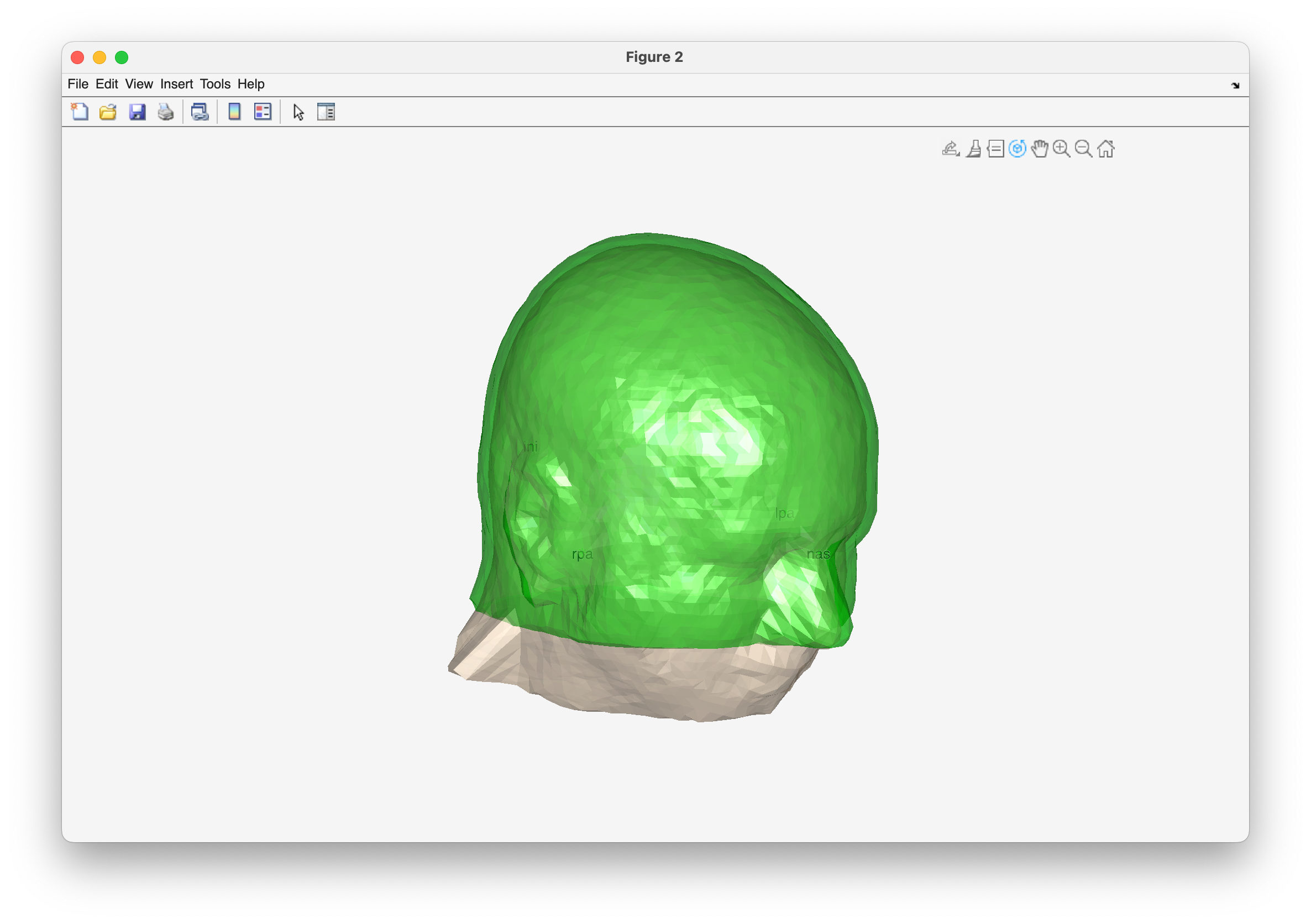

From the segmented air gap and helmet, we construct surface meshes that describe the inside of the helmet (i.e. the outside of the air gap volume) and the outside of the helmet.

cfg = [];
cfg.method = 'projectmesh';
cfg.numvertices = 4000;

cfg.tissue = 'airgap'; % this makes a surface from the outside of the "airgap" part
tmp = removefields(mri_segmented, {'scalp', 'helmet'}); % FIXME this is a hack that should be resolved
inside = ft_prepare_mesh(cfg, tmp);

cfg.tissue = 'helmet';
tmp = removefields(mri_segmented, {'scalp', 'airgap'}); % FIXME this is a hack that should be resolved
outside = ft_prepare_mesh(cfg, tmp);

We can plot the meshes that describe the inside and outside of the helmet.

figure
ft_plot_headshape(headshape, 'facecolor', 'skin', 'facealpha', 0.5, 'edgecolor', 'none');
ft_plot_mesh(inside, 'facecolor', 'r', 'facealpha', 0.5, 'edgecolor', 'none');
ft_headlight
rotate3d

figure
ft_plot_headshape(headshape, 'facecolor', 'skin', 'facealpha', 0.5, 'edgecolor', 'none');
ft_plot_mesh(outside, 'facecolor', 'g', 'facealpha', 0.5, 'edgecolor', 'none');
ft_headlight
rotate3d

You can see that they extend all the way to the nose, and that the bottom is closed; that is something we will fix later by editing the mesh in Fusion.

The next step is to determine the desired position of the sensors. As before, we will here use the 10-20 EEG electrode placement scheme.

cfg = [];
cfg.fiducial.nas = nas;
cfg.fiducial.ini = ini;
cfg.fiducial.lpa = lpa;
cfg.fiducial.rpa = rpa;
cfg.method = '1020';
elec = ft_electrodeplacement(cfg, headshape);

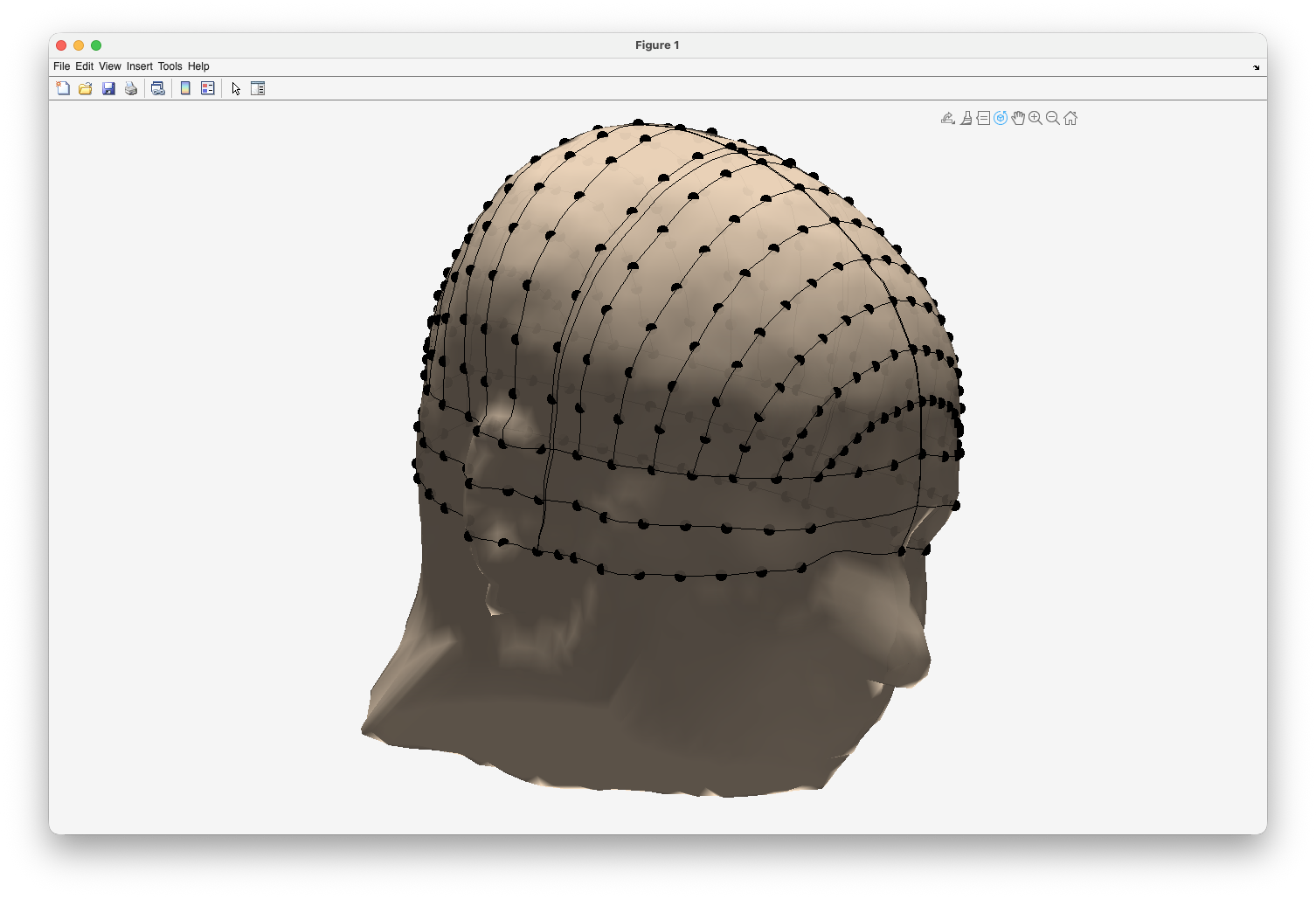

We take a subset of 19 electrode positions and use those to position the STL model of the sensors, the sensor holders, and the holes relative to the headshape and helmet.

chansel = ft_channelselection({'eeg1020', '-Fpz', '-Oz'}, elec.label);

cfg = [];
cfg.elec = elec;
cfg.channel = chansel;
cfg.outwardshift = 10;

cfg.template = 'fieldline_sensor.stl';
[tmpcfg, sensor] = ft_sensorplacement(cfg, headshape);

cfg.template = 'fieldline_holder.stl';
[tmpcfg, holder] = ft_sensorplacement(cfg, headshape);

cfg.template = 'fieldline_hole.stl';
[tmpcfg, hole] = ft_sensorplacement(cfg, headshape);

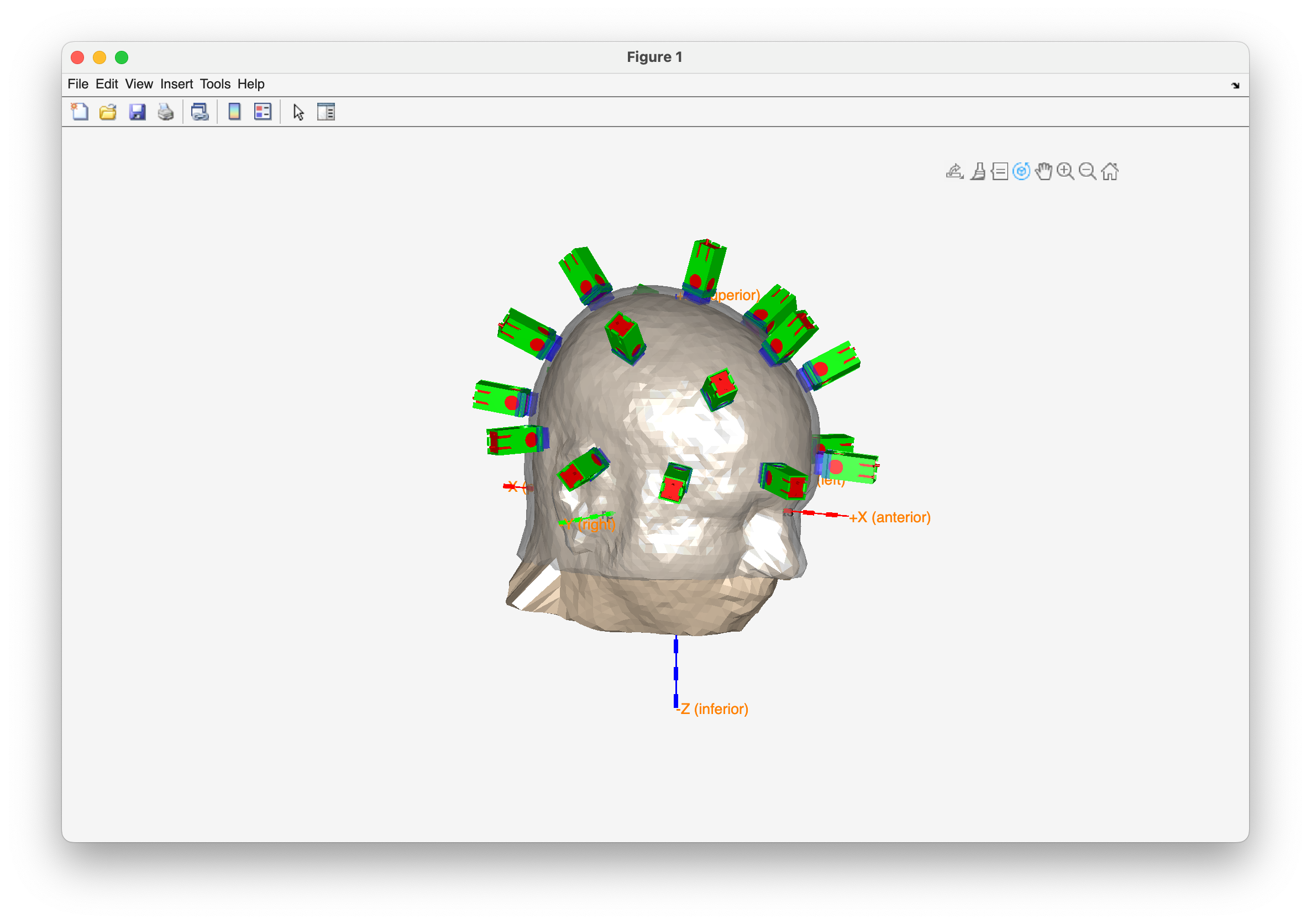

We can plot the head with the outside of the helmet and all STL objects in one figure to check their spatial alignment.

figure
ft_plot_headshape(headshape, 'facecolor', 'skin', 'facealpha', 1, 'axes', 1);
ft_plot_mesh(outside, 'facecolor', 'lightgray', 'facealpha', 0.5, 'edgecolor', 'none');
ft_plot_mesh(sensor, 'facecolor', 'r', 'facealpha', 1, 'edgecolor', 'none');
ft_plot_mesh(holder, 'facecolor', 'g', 'facealpha', 1, 'edgecolor', 'none');
% ft_plot_mesh(hole, 'facecolor', 'b', 'facealpha', 0.5, 'edgecolor', 'none');
% ft_plot_mesh(padding, 'facecolor', 'm', 'facealpha', 0.5, 'edgecolor', 'none');
ft_headlight

If we are happy with the sensor distribution, we can export all geometrical objects to STL files for postprocessing (see part 4).

mkdir individual

ft_write_headshape('individual/helmet-inside.stl', inside, 'fileformat', 'stl');
ft_write_headshape('individual/helmet-outside.stl', outside, 'fileformat', 'stl');

for i=1:numel(sensor)
disp(chansel{i});
    filename = sprintf('individual/sensor-%s.stl', chansel{i});
    ft_write_headshape(filename, sensor(i), 'fileformat', 'stl');
    filename = sprintf('individual/holder-%s.stl', chansel{i});
    ft_write_headshape(filename, holder(i), 'fileformat', 'stl');
    filename = sprintf('individual/hole-%s.stl', chansel{i});
    ft_write_headshape(filename, hole(i), 'fileformat', 'stl');
    filename = sprintf('individual/padding-%s.stl', chansel{i});
    ft_write_headshape(filename, padding(i), 'fileformat', 'stl');
end

In part 4 of this tutorial we will explain how to combine the different STL files into the final helmet design.

Individualized based on 3D scan

FIXME for this we need another subject that can be 3D scanned while wearing a swimming cap

Adapted to percentile of population

Rather than making an individualized helmet for each subject, you can also make a helmet that fits your whole population, or a large fraction of your population. This is of course what the OPM companies try to achieve with their helmets, but if you are working with a specific population, for example 4-year-olds, then the OPM companies might not have the right size helmet for you. The following section shows how a series of anatomical MRIs can be processed and combined to make a helmet that will fit a certain percentile of your population - in this case 90%.

This approach does assume that you have imaging data available for your population. If you don’t have the scans for your specific subjects (which is quite likely, especially if they are babies or kids), then you may be able to use an existing database with age-matched anatomical MRI data, for example the Neurodevelopmental MRI Database from John E. Richards.

In this case we are not going to use a large database with MRIs, but rather a small set to demonstrate the principle. This set of MRIs was constructed by taking an individual subject’s MRI and scaling, rotating and translating that, to create some variability in the head size and in the position relative to the MRI scanner field-of-view.

As before, the data is available from our download server.

We have prepared 10 different anatomical MRIs:

>> ls population/*.nii
population/subject001.nii
population/subject002.nii
...
population/subject010.nii

Since they all need to be aligned to each other, we have also prepared 10 corresponding files that contain the anatomical landmarks:

>> ls population/*.mat
population/fiducial001.mat
population/fiducial002.mat
...
population/fiducial010.mat

The anatomical MRIs are not that large, so we start by reading them all in memory.

nsubj = 10;

mri = cell(1,nsubj);
fiducial = cell(1,nsubj);

for i=1:nsubj
    fprintf('------------------------------- %d -------------------------------\n', i);
    mrifile = sprintf('population/subject%03d.nii', i);
    fidfile = sprintf('population/fiducial%03d.mat', i);
    mri{i} = ft_read_mri(mrifile);
    mri{i}.coordsys = 'ctf';
    fiducial{i} = load(fidfile);
end

There are two cell-arrays, one with the MRIs and the other with the anatomical landmarks.

The individual subjects’ MRIs have all been aligned to the CTF coordinate system with the x-axis going through the nose. We can confirm this with ft_determine_coordsys.

ft_determine_coordsys(mri{1}, 'interactive', 'no')

Note however that the fiducial locations are not identical, since some heads are smaller than others.

>> fiducial{1}
struct with fields:
    nas: [82.8648 -2.8422e-14 0]
    ini: [-94.3201 1.0090 29.7481]
    lpa: [2.9110 68.1849 -1.4211e-14]
    rpa: [-2.9110 -68.1849 -7.1054e-15]

>> fiducial{2}
struct with fields:
    nas: [80.3743 2.8422e-14 1.4211e-14]
    ini: [-91.2260 1.1314 32.6141]
    lpa: [2.2625 75.9092 2.1316e-14]
    rpa: [-2.2625 -75.9092 7.1054e-15]

For subject 1 the head is slightly larger than for subject 2. The nasion is in both cases along the x-axis, since its y- and z-value are zero (up to some numerical precision error).

We can check the position of the nasion, or of any of the other anatomical landmarks.

cfg = [];
cfg.method = 'ortho';
cfg.location = fiducial{3}.nas;
cfg.locationcoordinates = 'head';
ft_sourceplot(cfg, mri{1});

We reslice all of the MRIs so that the voxels are isotropic and aligned with the head coordinate system. Furthermore, as before, we segment the MRIs to get the head or scalp surface.

mri_resliced = {};
mri_segmented = {};

for i=1:nsubj
    fprintf('------------------------------- %d -------------------------------\n', i);
    cfg = [];
    cfg = [];
    cfg.xrange = [ -97.5000 157.5000] - 20;
    cfg.yrange = [-127.5000 127.5000];
    cfg.zrange = [ -87.5000 167.5000] - 10;
    mri_resliced{i} = ft_volumereslice(cfg, mri{i});

    cfg = [];
    cfg.output = 'scalp';
    mri_segmented{i} = ft_volumesegment(cfg, mri_resliced{i});
end

We can check the segmentation, again by specifically looking at the cross-section of one of the anatomical landmarks.

cfg = [];
cfg.method = 'ortho';
cfg.location = fiducial{1}.nas;
cfg.funparameter = 'scalp';
ft_sourceplot(cfg, mri_segmented{1});

Now that we know which voxels correspond to the head, we can combine the binary segmentations which have the value of 0 for air and 1 for the head or scalp. To do that, we simply copy the one from subject 1, and for each of the subsequent subjects we add the segmentation. The consequence is that for a voxel that is part of the scalp segmentation in all 10 subjects, the summed value will be 10, whereas if a voxel is part of the scalp segmentation in half of the subjects, the summed value is 5. After summing them, we divide by the total number of subjects to get for each voxel the fraction of subjects that the voxel is part of the scalp segmentation.

mri_averaged = rmfield(mri_segmented{1}, 'cfg');
for i=2:nsubj
    mri_averaged.scalp = mri_averaged.scalp + mri_segmented{i}.scalp;
end
mri_averaged.scalp = mri_averaged.scalp/nsubj;

cfg = [];
cfg.method = 'ortho';
cfg.location = [0 0 0];
cfg.funparameter = 'scalp';
ft_sourceplot(cfg, mri_averaged);

To determine the volume that would accommodate 90% of the participants, we have to determine which voxels are less than 10% probable to be part of the scalp. I.e., the outermost voxels with low scalp probabilities are removed, whereas if the scalp probability is 10% or higher, we retain the voxels.

mri_90percentile       = mri_averaged;
mri_90percentile.scalp = mri_averaged.scalp>=0.1;

This again results in a binary or boolean volume with a head outline that should fit 90% of our participants.

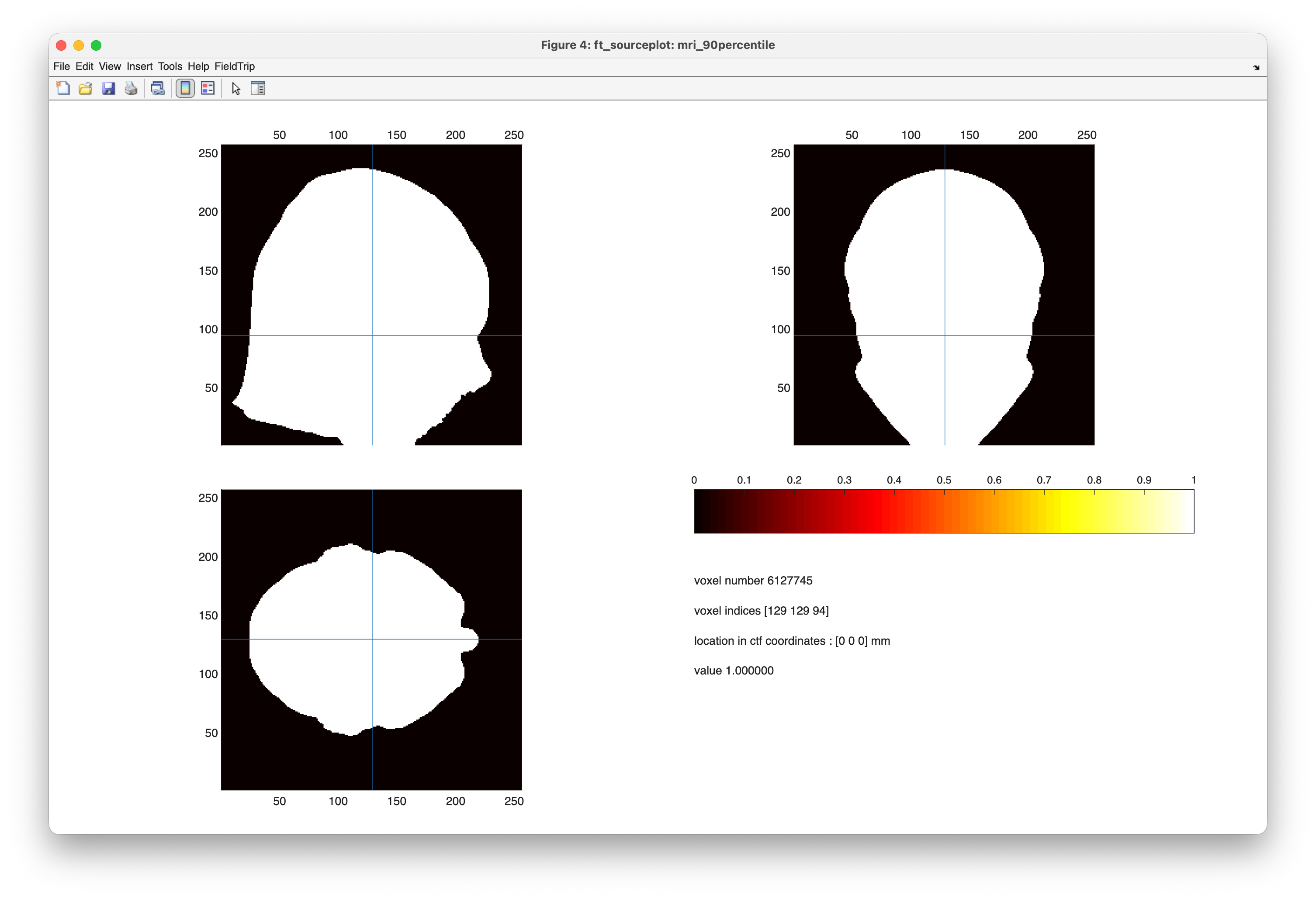

cfg = [];
cfg.method = 'ortho';
cfg.location = [0 0 0];
cfg.funparameter = 'scalp';
ft_sourceplot(cfg, mri_90percentile);

We can use a similar trick to make the outline of the scalp perfectly symmetric. We flip the segmented scalp along the 2nd dimension (the y-axis), and combine it with the original using a logical “or” operation.

% make it perfectly symmetric
mri_90percentile.scalp =  mri_90percentile.scalp | flip(mri_90percentile.scalp, 2);

From here on the code is largely the same as for processing the individual anatomical MRI, so we make the inside and outside of the helmet using imdilate.

% we now do the same as for the individual MRI
mri_segmented = mri_90percentile;

% we still need to make the headshape mesh, so don't modify the scalp segmentation directly
tmp = mri_segmented.scalp;
tmp(:,:,1:50) = 0;

mri_segmented.airgap = imdilate(tmp,                  strel('sphere', 1));
mri_segmented.helmet = imdilate(mri_segmented.airgap, strel('sphere', 5));

And as before we make the meshes for the headshape, the inside, and the outside of the helmet.

cfg = [];
cfg.method = 'projectmesh';
cfg.numvertices = 4000;

cfg.tissue = 'scalp';
headshape = ft_prepare_mesh(cfg, mri_segmented);

cfg.tissue = 'airgap'; % this makes a surface from the outside of the "airgap" part
tmp = removefields(mri_segmented, {'scalp', 'helmet'}); % FIXME this is a hack that should be resolved
inside = ft_prepare_mesh(cfg, tmp);

cfg.tissue = 'helmet';
tmp = removefields(mri_segmented, {'scalp', 'airgap'}); % FIXME this is a hack that should be resolved
outside = ft_prepare_mesh(cfg, tmp);

Now that we have the headshape and the inside and outside of the helmet, again accommodating for a 1mm gap on the insider of the helmet, we have to distribute the sensors over the headshape and helmet. Since all participants have different head sizes, their anatomical landmarks are also at different locations.

figure
ft_plot_axes([], 'unit', 'mm', 'coordsys', 'als');
for i=1:nsubj
    ft_plot_mesh(fiducial{i}.nas, 'vertexcolor', 'k');
    ft_plot_mesh(fiducial{i}.lpa, 'vertexcolor', 'k');
    ft_plot_mesh(fiducial{i}.rpa, 'vertexcolor', 'k');
    ft_plot_mesh(fiducial{i}.ini, 'vertexcolor', 'k');
end

As for the segmentations, we can compute the average location of all anatomical landmarks.

nas_avg = fiducial{1}.nas;
ini_avg = fiducial{1}.ini;
lpa_avg = fiducial{1}.lpa;
rpa_avg = fiducial{1}.rpa;

for i=2:nsubj
    nas_avg = nas_avg + fiducial{i}.nas;
    ini_avg = ini_avg + fiducial{i}.ini;
    lpa_avg = lpa_avg + fiducial{i}.lpa;
    rpa_avg = rpa_avg + fiducial{i}.rpa;
end

nas_avg = nas_avg/nsubj;
ini_avg = ini_avg/nsubj;
lpa_avg = lpa_avg/nsubj;
rpa_avg = rpa_avg/nsubj;

% average the position of left and right ear
tmp1 = (lpa_avg + [1 -1 1] .* rpa_avg)/2;
tmp2 = (rpa_avg + [1 -1 1] .* lpa_avg)/2;
% now we can safely overwrite them
lpa_avg = tmp1;
rpa_avg = tmp2;

% the nose and inion should be exactly on the y=0 plane
nas_avg(2) = 0;
ini_avg(2) = 0;

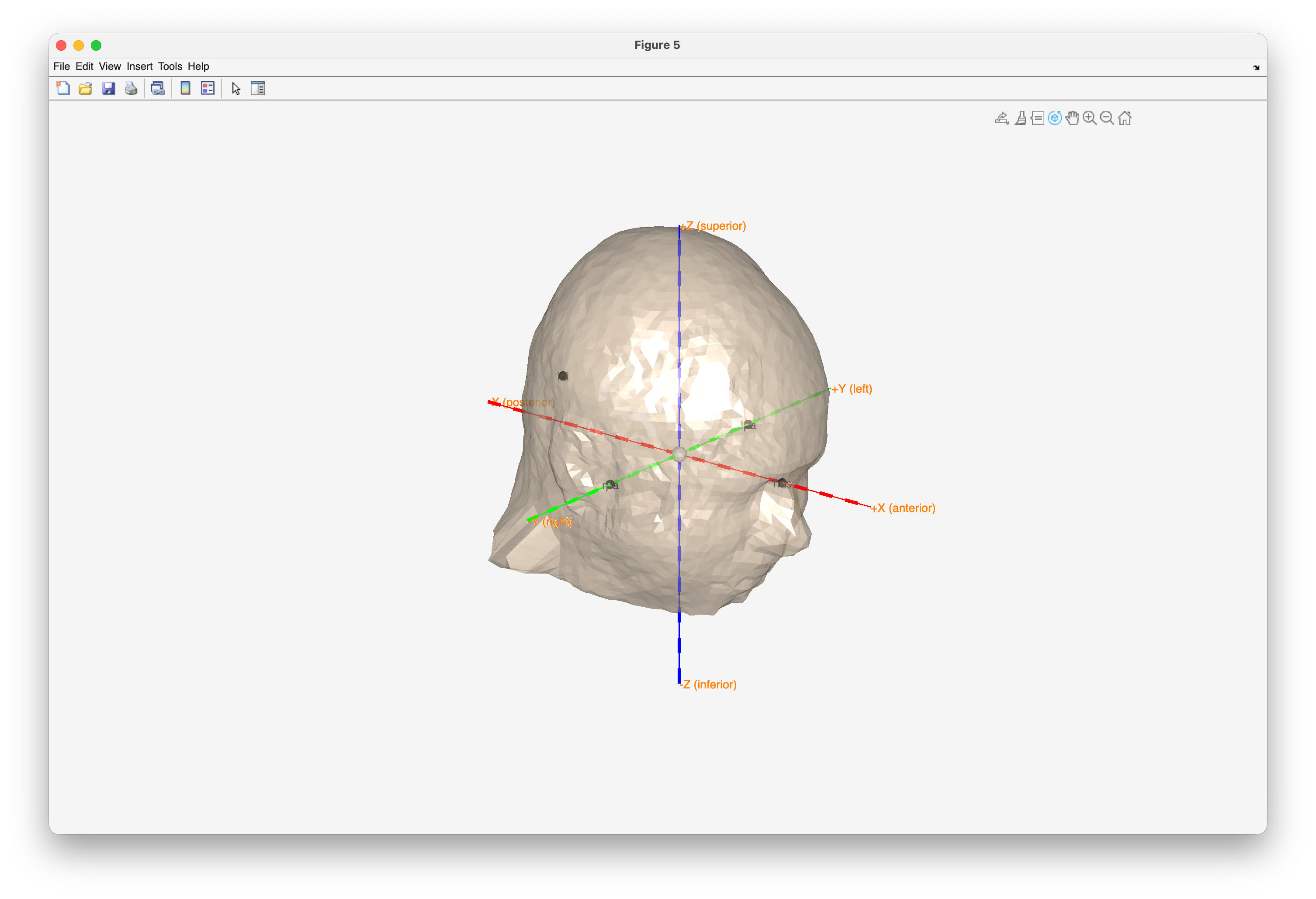

We can plot the averaged anatomical landmark positions together with the population headshape.

headshape.fid.pos = [
    nas_avg
    ini_avg
    lpa_avg
    rpa_avg
    ];

headshape.fid.label = {
    'nas'
    'ini'
    'lpa'
    'rpa'
    };

figure
ft_plot_headshape(headshape, 'axes', 'on', 'facecolor', 'skin', 'facealpha', 0.5, 'fidmarker', '.', 'fidcolor', 'k', 'fidlabel', true, 'fidsize', 24)
ft_headlight

If you look carefully, you will see that the landmarks are not on the scalp surface, but slightly inside.

Although the ft_electrodeplacement function will project them on the surface, the projected nasion landmark will not be on the nasion but on the nearest surface point, which happens to be on the side of the nose. This subsequently causes the 10-20 placement scheme to fail. We can shift all anatomical landmarks outward a little bit to ensure that the projections onto the surface are correct.

cfg = [];
cfg.fiducial.nas = nas_avg + [+10 0 0];
cfg.fiducial.ini = ini_avg + [-10 0 0];
cfg.fiducial.lpa = lpa_avg + [0 +10 0];
cfg.fiducial.rpa = rpa_avg + [0 -10 0];
cfg.method = '1020';
elec = ft_electrodeplacement(cfg, headshape);

From this point on the code is the same as above, so we use ft_sensorplacement to rotate and translate the STL models to the desired sensor positions, we can visualize the result, and export it to STL files for postprocessing.

Part 2 - sensor distributions

10-20 distribution

In all examples above we used the ft_electrodeplacement function to determine the positions of the extended 10-20 system on the scalp, took a subset of those positions, and rotated and translated the sensors, sensor holders, etcetera to those positions. This is a very powerful and flexible way, since there are more than 300 locations in the 5% electrode placement scheme.

The selection was made using the ft_channelselection helper function, which knows some default channel groups like ‘eeg1020’. Furthermore, we excluded FPz and Oz, since we already have their close neighbours on both sides.

chansel = ft_channelselection({'eeg1020', '-Fpz', '-Oz'}, elec.label);

We could also have specified it as follows

chansel = {'Fp1', 'Fp2', 'F7', 'F3', 'Fz', 'F4', 'F8', 'T7', 'C3', 'Cz', 'C4', 'T8', 'P7', 'P3', 'Pz', 'P4', 'P8', 'O1', 'O2'};

and similarly you can make your own list, for example by hand-picking locations from a 2D representation of all positions.

cfg = [];
cfg.layout = 'eeg1005';
cfg.channel = {'all'}; % modify this to your selection
cfg.skipcomnt = 'yes';
cfg.skipscale = 'yes';
cfg.feedback = 'yes';

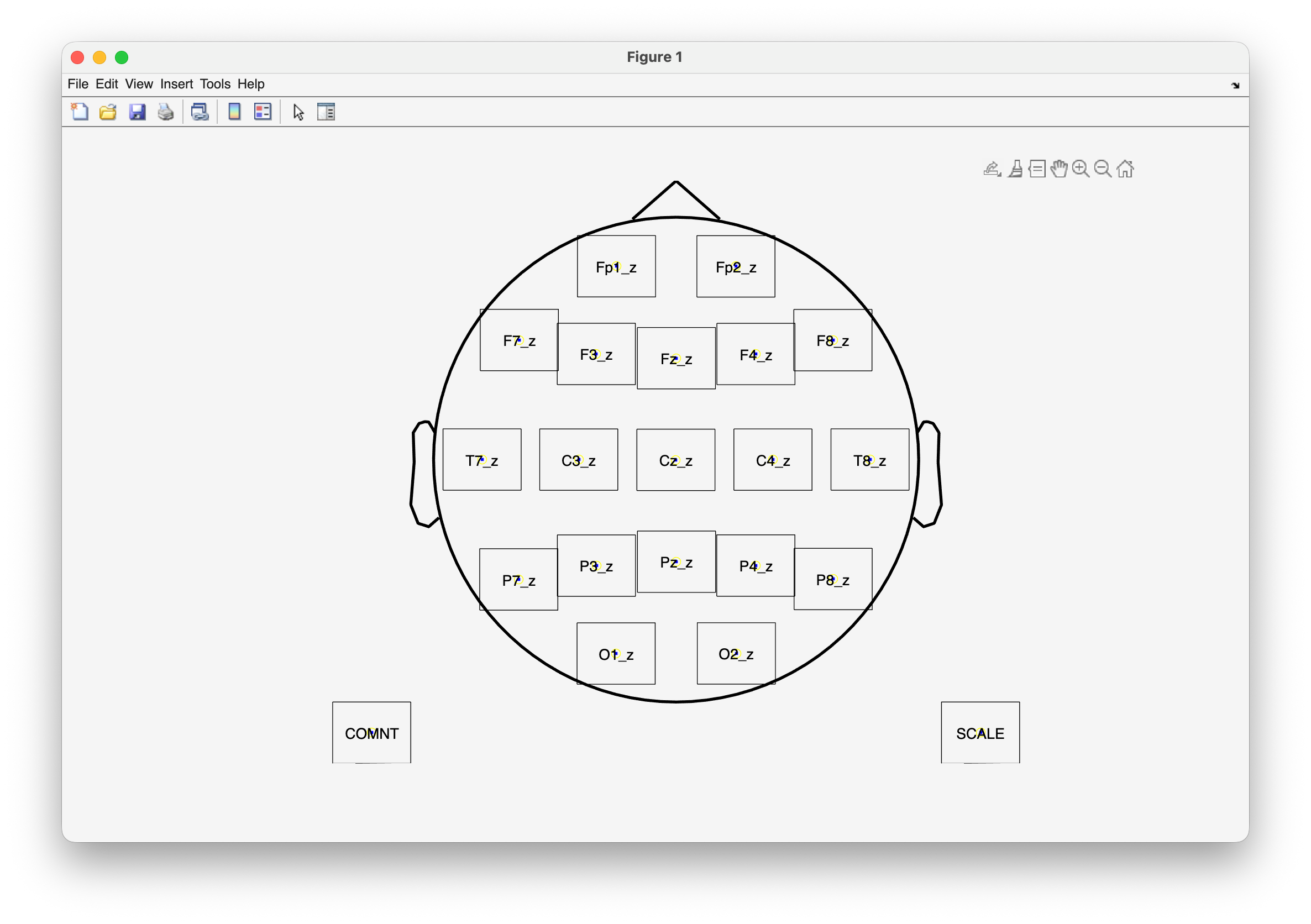

layout = ft_prepare_layout(cfg);

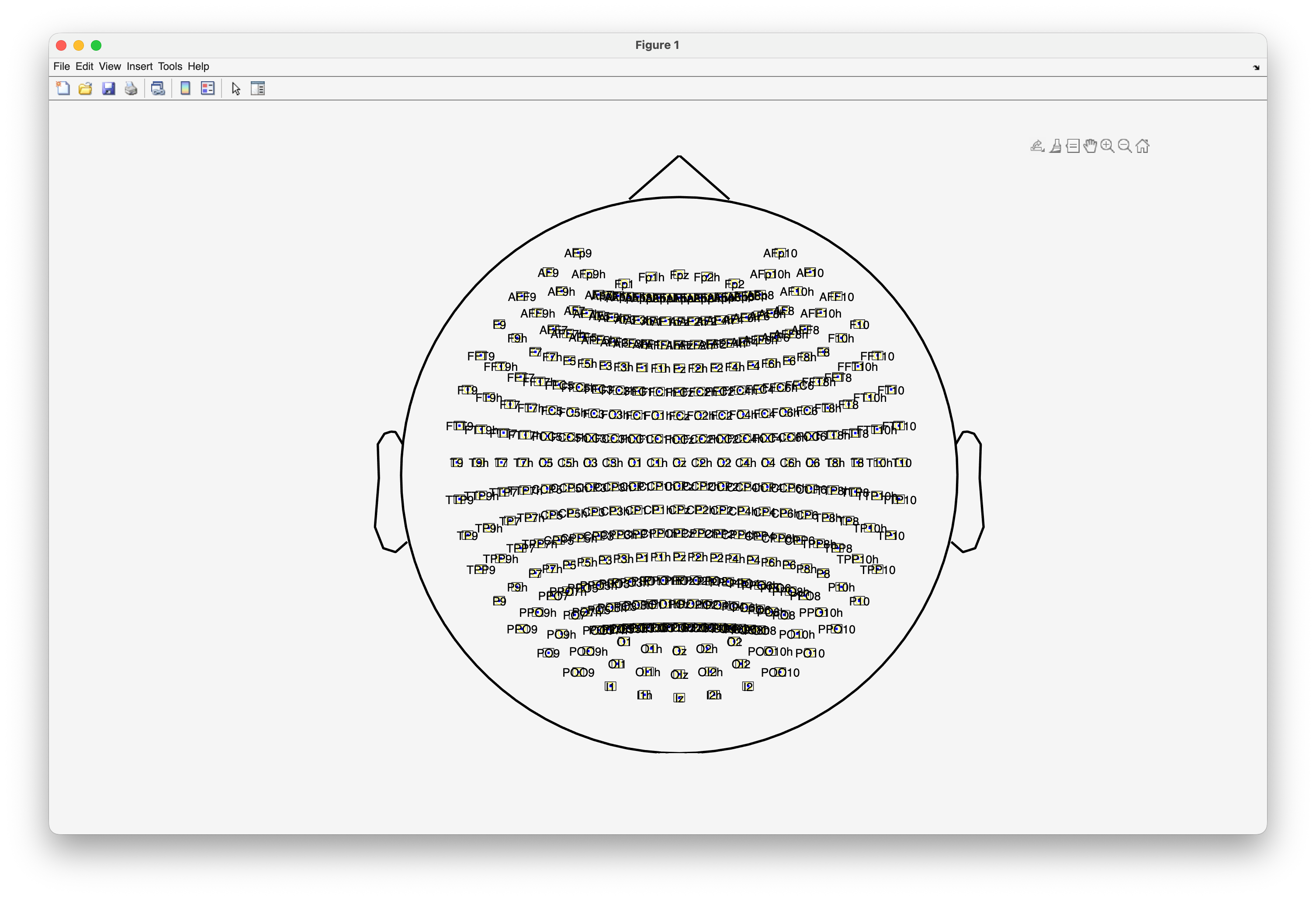

With the cfg.feedback option this creates a figure, but you could also use ft_plot_layout to have more control over the figure. Note that in this simple 2D layout the anatomical location of the electrodes is not correct with respect to the schematic nose and ears, as T9 and T10 should be in front of the ears, more or less on the same location as LPA and RPA.

Equidistant

We can also use ft_electrodeplacement to make an approximate equidistant arrangement of an arbitrary number of OPM sensor locations. We can demonstrate this on the spherical headshape, but it works just as well on a realistic individual or population-based headshape.

headshape = ft_read_headshape('spherical-head.stl');
headshape.coordsys = 'ctf';

The mesh describing the sphere has over 28k triangles. To speed up the plotting, we can reduce the number of triangles while still retaining the overall spherical shape.

[headshape.tri, headshape.pos] = reducepatch(headshape.tri, headshape.pos, 800);

As before, we specify the position of the anatomical landmarks to distribute the electrode positions.

nas = [+100 0 0];
ini = [-100 0 0];
lpa = [0 +100 0];
rpa = [0 -100 0];

cfg = [];
cfg.fiducial.nas = nas;
cfg.fiducial.ini = ini;
cfg.fiducial.lpa = lpa;
cfg.fiducial.rpa = rpa;
cfg.method = 'equidistant';
cfg.maxiter = 500;
cfg.feedback = 'yes';
elec = ft_electrodeplacement(cfg, headshape);

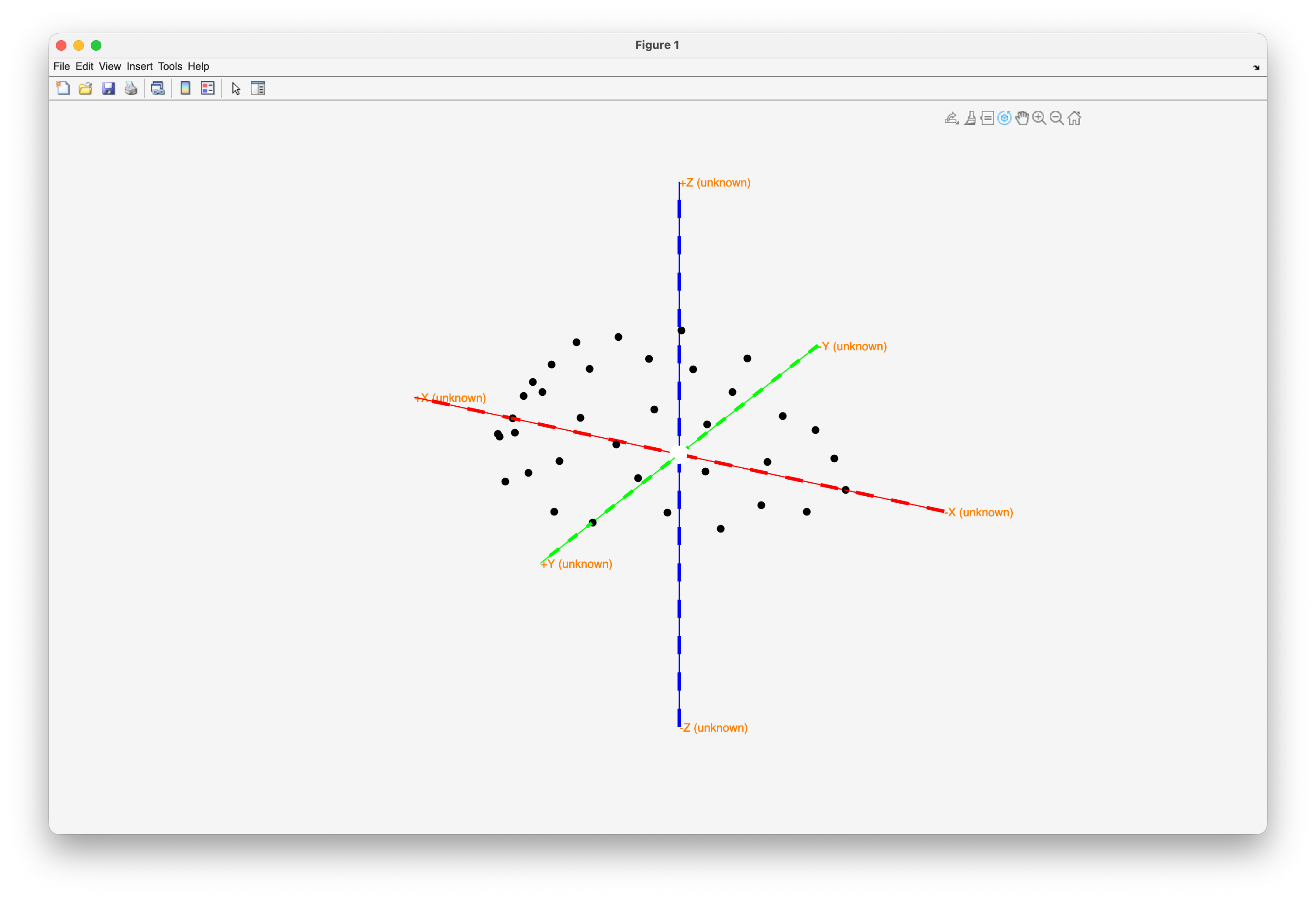

This results in an iteratively updating figure that shows the electrode positions over the left hemisphere. The positions are repeatedly updated to make the distance between them as equal as possible. There are a number of positions that remain fixed, which correspond to Fpz, Oz, T7 and T8. During optimization the electrodes are not allowed to go below the sideline over the ear, or across the midline. After optimization, the positions are copied to the right hemisphere and labels are assigned.

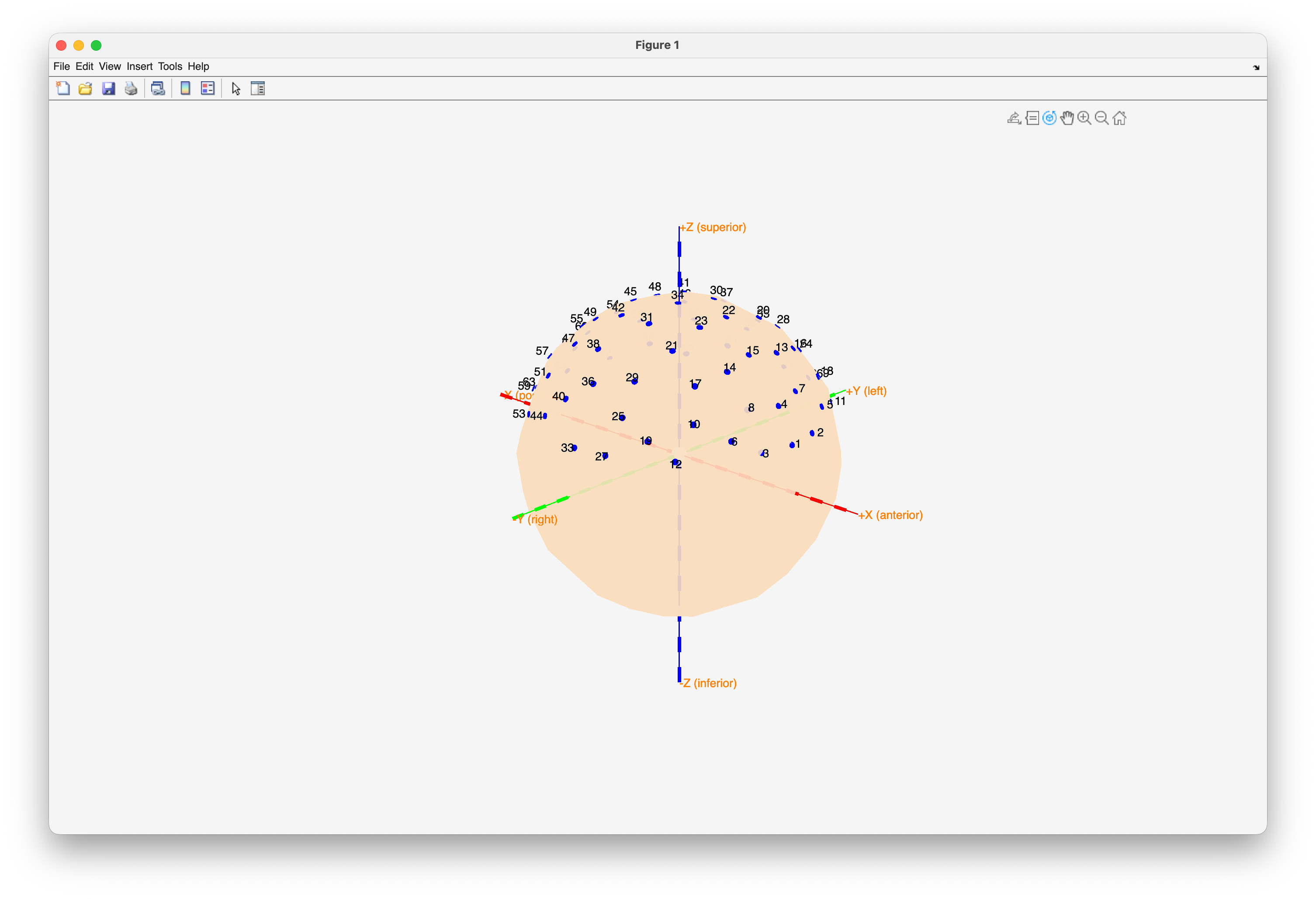

We can plot the positions together with their labels using ft_plot_sens. The position labeled with “1” corresponds to the “Fpz” position in the 10-20 system.

The total number of positions must be specified by you. The number of positions along the midline (running over the vertex) and over the sideline (above the ear) can also be specified.

After determining the equidistant positions, you would proceed just as before with the ft_sensorplacement function to place the OPM sensors, sensor holders, etcetera.

From a template

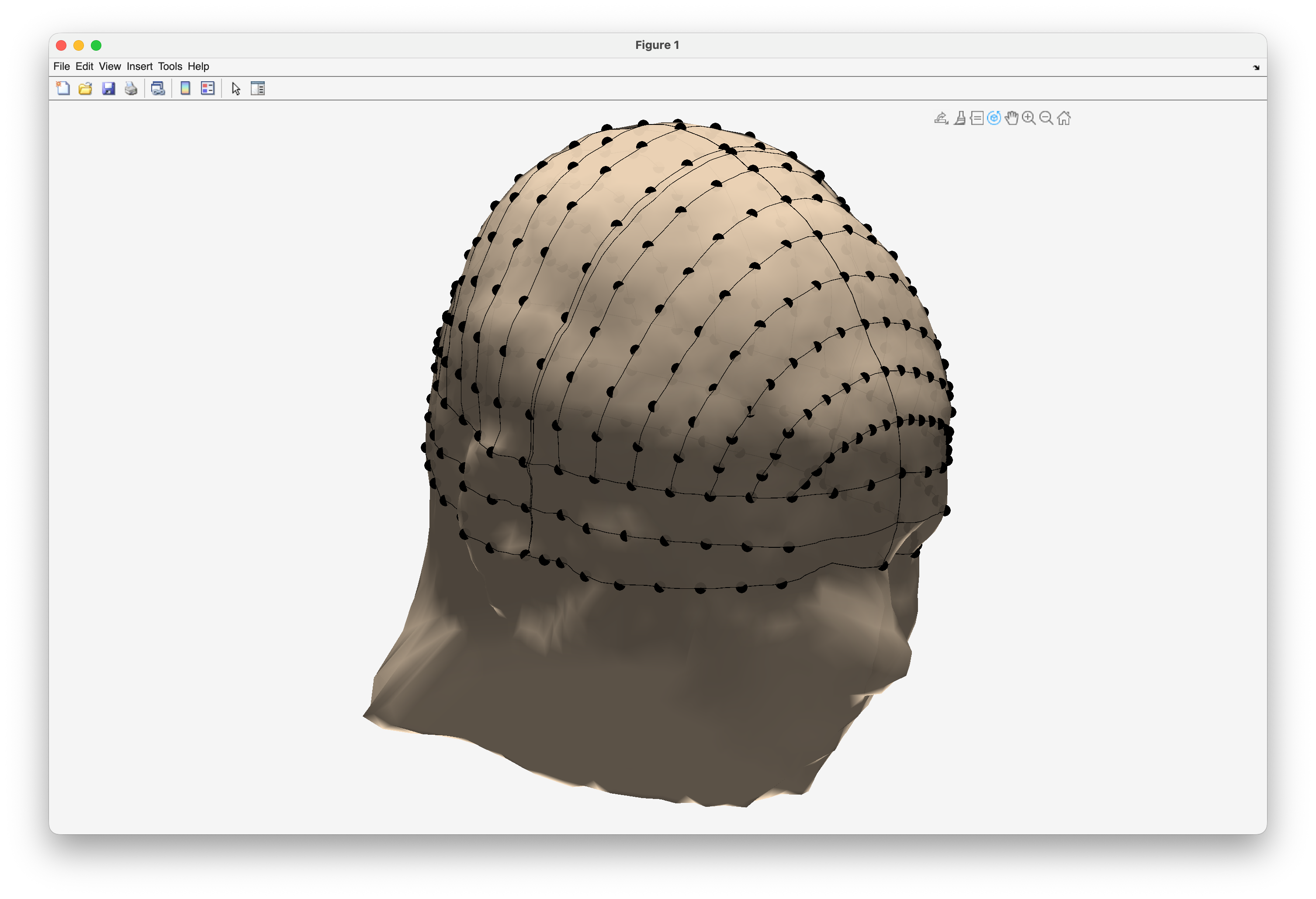

The two sections above demonstrate how we can construct sensor positions on basis of distributing electrode positions. We could similarly start with template electrode locations from FieldTrip, or from other software like EEGLAB. The ft_electroderealign function can be used to translate, rotate and scale the electrodes such that they fit on your head surface.

Again, after determining the positions from the template, you would proceed just as before with the ft_sensorplacement function to place the OPM sensors, sensor holders, etcetera.

Interactive manual specification

If you have a headshape, you can also use the “headshape” method in ft_electrodeplacement This will show the headshape and allows you to click to manually specify where the positions are to be placed. This approach is described in more detail in the tutorial on electrode placement.

Part 3 - sensor orientation and rotation

Besides determining where to place the sensors on the head or helmet, we also need to decide how the sensors should be oriented. By default ft_sensorplacement will orient the sensors (and sensor holders, etc.) perpendicular to the headshape surface. This defines two of the three rotations, but still leaves the rotation around the (radial) axis to be determined.

Let’s first have a look at the sensor holder and how it is defined in 3D space.

sensor = ft_read_headshape('fieldline_sensor.stl');
holder = ft_read_headshape('fieldline_holder.stl');

figure
ft_plot_mesh(sensor, 'facecolor', 'r', 'edgecolor', 'none')
ft_plot_mesh(holder, 'facecolor', 'lightgray', 'edgecolor', 'none')
ft_plot_axes([], 'unit', 'mm')
ft_headlight

axis on; grid on
xlabel('x')
ylabel('y')
zlabel('z')

The sensor is 15x13x35 mm, where the 15 mm length corresponds to x, the 13 mm to x, and the 35 mm length to z. The sensor is “decorated” with a small piece of the cable sticking out and a small dent corresponding to a screw hole. The cable is on the -x side, the screw hole is on the +x side. The bottom of the sensor holder is flush with the z=0 plane. The sensor itself is 1 mm shifted upwards, in the positive z-direction.

The ft_sensorplacement function operates by shifting the object that is specified in cfg.template (so for example the sensor, or the sensor holder) with cfg.outwardshift in the positive z-direction. Subsequently the object is rotated so that it is perpendicular to the surface, and finally it is translated to its final position.

In general the orientation and rotation are determined by a rotation around the z-axis, followed by a rotation around the y- and x-axis. Since rotations are not commutative, the order in which they are applied matters. These rotations can be specified as cfg.rotz, cfg.roty and cfg.rotx, respectively. Note that ft_sensorplacement also returns the cfg structure as it was used in the placement, so if you did not explicitly specify the rotations in the input cfg, the output cfg will have the rotations, which allows you to change them and re-run the placement.

Sensor orientation relative to the head

By default the sensor is oriented perpendicular to the headshape, and no explicit rotation around its z-axis is done.

headshape = ft_read_headshape('spherical-head.stl')

nas = [+100 0 0];
ini = [-100 0 0];
lpa = [0 +100 0];
rpa = [0 -100 0];

cfg = [];
cfg.fiducial.nas = nas;
cfg.fiducial.ini = ini;
cfg.fiducial.lpa = lpa;
cfg.fiducial.rpa = rpa;
cfg.method = '1020';
cfg.feedback = 'no';
elec = ft_electrodeplacement(cfg, headshape);

chansel = ft_channelselection({'eeg1020', '-Fpz', '-Oz'}, elec.label);

cfg = [];
cfg.elec = elec;
cfg.channel = chansel;
cfg.outwardshift = 2; % two mm away from the surface
cfg.template = 'fieldline_sensor.stl';
[outcfg, sensor] = ft_sensorplacement(cfg, headshape);

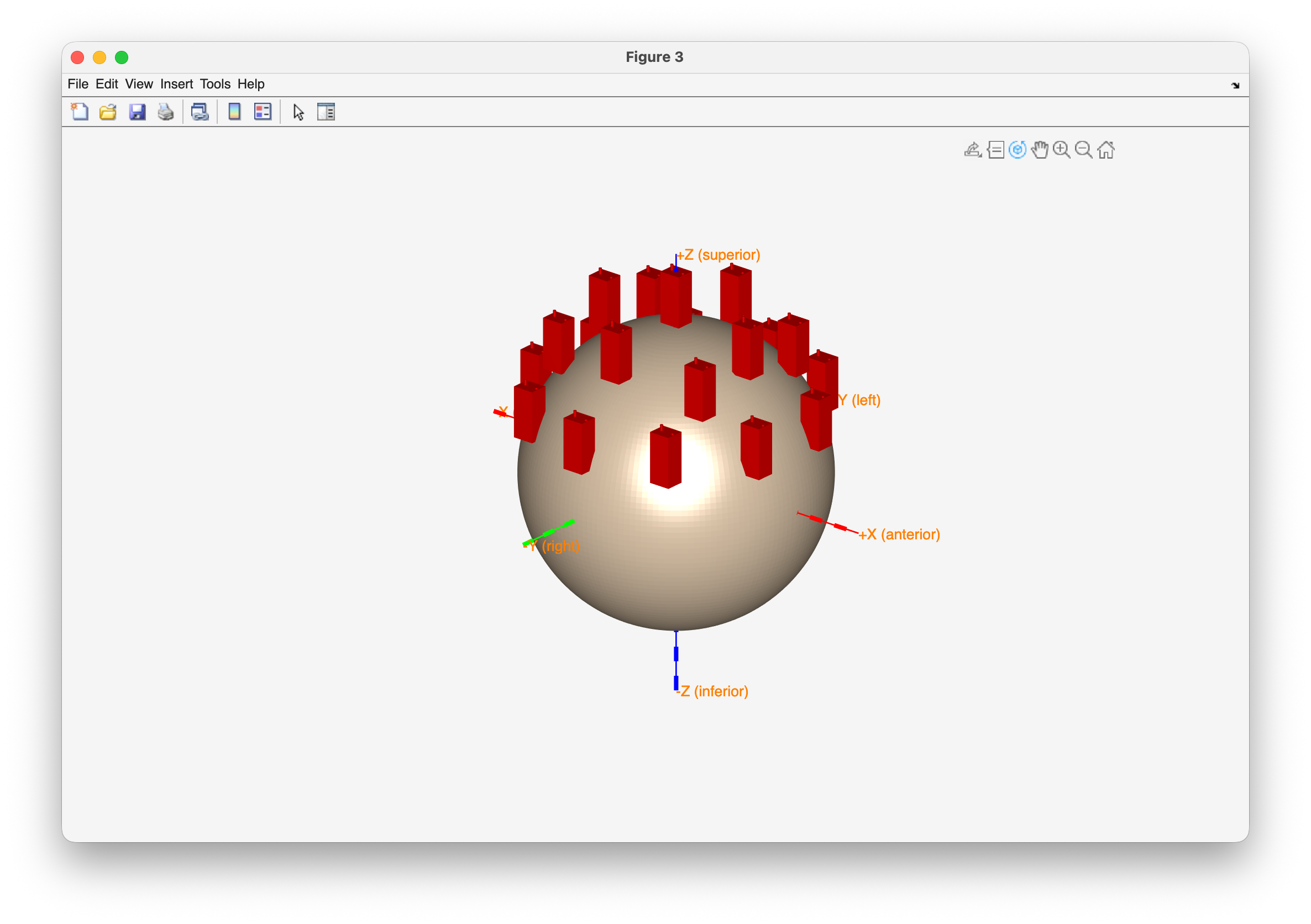

figure
ft_plot_headshape(headshape, 'facecolor', 'skin', 'facealpha', 1, 'axes', 1);
ft_plot_mesh(sensor, 'facecolor', 'r', 'facealpha', 1, 'edgecolor', 'none');
ft_headlight

The output configuration contains the rotations around the three axes that were used.

>> disp(outcfg)
    ...
    rotx: [19×1 double]
    roty: [19×1 double]
    rotz: [19×1 double]

We could explicitly specify that we don’t want any rotations at all with

cfg = [];
cfg.rotx = zeros(19,1);
cfg.roty = zeros(19,1);
cfg.rotz = zeros(19,1);
cfg.elec = elec;
cfg.channel = chansel;
cfg.outwardshift = 2; % two mm away from the surface
cfg.template = 'fieldline_sensor.stl';
[tmpcfg, sensor] = ft_sensorplacement(cfg, headshape);

figure
ft_plot_headshape(headshape, 'facecolor', 'skin', 'facealpha', 1, 'axes', 1);
ft_plot_mesh(sensor, 'facecolor', 'r', 'facealpha', 1, 'edgecolor', 'none');
ft_headlight

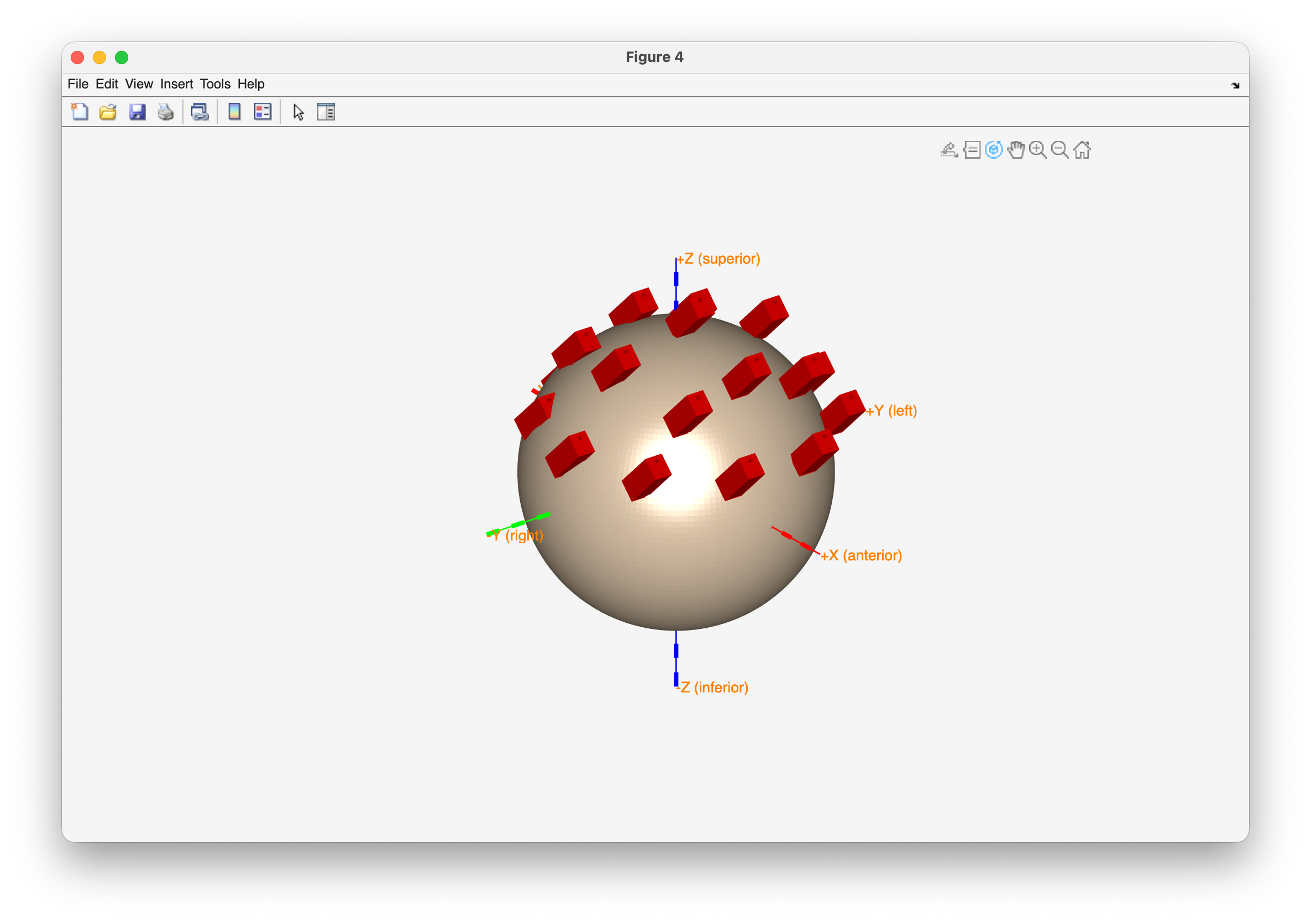

or that we want to rotate all sensors in a particular direction.

cfg = [];
cfg.rotx = zeros(19,1);
cfg.roty = ones(19,1) * 45; % degrees
cfg.rotz = zeros(19,1);
cfg.elec = elec;
cfg.channel = chansel;
cfg.outwardshift = 2; % two mm away from the surface
cfg.template = 'fieldline_sensor.stl';
[tmpcfg, sensor] = ft_sensorplacement(cfg, headshape);

figure
ft_plot_headshape(headshape, 'facecolor', 'skin', 'facealpha', 1, 'axes', 1);
ft_plot_mesh(sensor, 'facecolor', 'r', 'facealpha', 1, 'edgecolor', 'none');
ft_headlight

In the individual helmet design we identified that the sensors close to the ears had an orientation that was suboptimal, due to the low resolution mesh having a bump close to the ear, and due to some compression of the soft tissue by the sound-isolating headphone. We can identify the two sensors on T7 and T8, and change those accordingly:

selT7 = find(strcmp(tmpcfg.channel, 'T7'));
selT8 = find(strcmp(tmpcfg.channel, 'T8'));

cfg = [];
cfg.rotx = outcfg.rotx;
cfg.roty = outcfg.roty;
cfg.rotz = outcfg.rotz;
% do not rotate these around the y-axis, which connects the ears
cfg.rotz(selT7) = 0;
cfg.rotz(selT8) = 0;
% rotate plusminus 90 degrees around the x-axis, which goes to the nose
cfg.rotx(selT7) = +90;
cfg.rotx(selT8) = -90;
% ... the remainder would be the same as before

As an alternative to specifying the rotations, you can specify the orientation of each of the electrodes in the input elec structure. This is similar to specifying the coil orientation for MEG sensor arrays, and for electrodes also used in ft_plot_sens when you show the electrode as a disc. The following takes the line connecting the point (0,0,40), which is more or less in between T7 and T8, and each of the electrodes, and uses that line to determine the orientation of each electrode.)

for i=1:numel(elec1020.label)
    elec.elecori(i,:) = elec.elecpos(i,:) - [0 0 40];
    elec.elecori(i,:) = elec.elecori(i,:) / norm(elec.elecori(i,:)); % unit length
end

Sensor rotation around its axis

Bi-axial OPM sensors typically record the signal in one radial direction (i.e., perpendicular to the surface) and one tangential direction, which is also the most optimal configuration (see Schoffelen et al. 2025 Optimal configuration of on-scalp OPMs with fixed channel counts). For the tangential direction you have to choose how to rotate the sensor around its axes. An optimal sampling of the environmental noise (useful for noise suppression) is obtained with alternating directions of neighbouring sensors, where the tangential axis of a sensor is 90 degrees rotated relative to that of its neighbours.

We can use the rotation around the z-axis to determine how sensors are rotated around their own radial axis:

cfg = [];
cfg.rotx = zeros(19,1);
cfg.roty = zeros(19,1);
cfg.rotz = ones(19,1) * 45; % degrees
cfg.elec = elec;
cfg.channel = chansel;
cfg.outwardshift = 2; % two mm away from the surface
cfg.template = 'fieldline_sensor.stl';
[tmpcfg, sensor] = ft_sensorplacement(cfg, headshape);

figure
ft_plot_headshape(headshape, 'facecolor', 'skin', 'facealpha', 1, 'axes', 1);
ft_plot_mesh(sensor, 'facecolor', 'r', 'facealpha', 1, 'edgecolor', 'none');
ft_headlight

Of course this is best combined with first determining the overall orientation (rotation around x and y), then plotting, and then writing down how much you want each sensor to be rotated around its own axis.

% this is what you would write down by hand
correction = {
    'Cz'    0 0   0
    'T7'    0 0 -30
    'T8'    0 0 +30
    };

cfg = [];
cfg.elec = elec1020;
cfg.channel = chansel;  % subset of 19 locations
cfg.rotx = outcfg.rotx; % 19x1 vector
cfg.roty = outcfg.roty; % 19x1 vector
cfg.rotz = outcfg.rotz; % 19x1 vector

% chansel is a cell-array with the selected locations of the 1020 system at which sensors are placed
for i=1:size(correction,1)
  lab = correction{i,1};
  dx  = correction{i,2};
  dy  = correction{i,3};
  dz  = correction{i,4};
  cfg.rotx(strcmp(chansel, lab)) = cfg.rotx(strcmp(chansel, lab)) + dx;
  cfg.roty(strcmp(chansel, lab)) = cfg.roty(strcmp(chansel, lab)) + dy;
  cfg.rotz(strcmp(chansel, lab)) = cfg.rotz(strcmp(chansel, lab)) + dz;
end

% ... the remainder would be the same as before

To get a nice distribution of sensor positions, orientations relative to the scalp, and rotations around their own axis, you will probably want to iterate multiple times and plot them in between.

Plotting sensors together with their label

You can use the following piece of code to identify which of the sensors needs to be rotated. It plots the OPM sensors together with the electrode positions on which they are based, with (very large) the label that corresponds to each of the positions.

figure
ft_plot_headshape(headshape, 'facecolor', 'skin', 'facealpha', 1, 'axes', 1);
ft_plot_mesh(sensor, 'facecolor', 'r', 'facealpha', 0.5, 'edgecolor', 'none');
ft_headlight

chanindx = match_str(elec.label, chansel);
ft_plot_sens(elec, 'chanindx', chanindx, 'label', 'label', 'fontsize', 30)

Part 4 - putting the helmet design together

Throughout this tutorial we are using Autodesk Fusion, which is the software we are most familiar with. You can sign up as a student or educator and get an educational license for free, or you can sign up for a free personal license. However, you can also use SolidWorks, FreeCAD, Blender, or other 3D design software. The required characteristics of the software are that it should be able to read and write STL files, and that it should be able to combine different geometries by means of (Boolean) addition and subtraction. For example, we have the STL file of the basic helmet shape from an MRI and the software should be able to cut off the lower part to accommodate the face, ears and neck. Furthermore, it should be able to remove material from the helmet shell based on the cutting tool “holes” that are defined as STL files.

FIXME here I should add screenshots and an explanation of the process in Fusion

Part 5 - making the grad structure and layout

To reconstruct the sources underlying the MEG recordings and for some of the denoising algorithms (specifically ft_denoise_hfc, ft_denoise_amm, and ft_denoise_sss) you need the specification of the sensor definition. Although OPMs are commonly magnetometers, in FieldTrip we refer to this sensor definition as the grad structure. If you read in data from a SQUID MEG recording, you will get the grad structure in the raw data representation.

If you read in data from an OPM MEG recording (for example a fif file), you might also get the grad structure in the raw data representation. In some cases the sensor positions are known to the OPM system (for example with the FieldLine smart helmet) or have been added by postprocessing the recording with custom software to add the sensor localization (for example with the QuSpin Halo).

If you use a custom designed and 3D-printed OPM helmet, the OPM acquisition software will record the MEG signals just fine, but does not know where the sensors are or what their orientation is. Hence you have to construct a grad structure to complement the subsequent analysis.

Grad for source modelling

To demonstrate this, we will again start with the spherical configuration

headshape = ft_read_headshape('spherical-head.stl');
headshape.coordsys = 'ctf';

nas = [+100 0 0];
ini = [-100 0 0];
lpa = [0 +100 0];
rpa = [0 -100 0];

cfg = [];
cfg.fiducial.nas = nas;
cfg.fiducial.ini = ini;
cfg.fiducial.lpa = lpa;
cfg.fiducial.rpa = rpa;
cfg.method = '1020';
cfg.feedback = 'no';
elec = ft_electrodeplacement(cfg, headshape);

chansel = ft_channelselection({'eeg1020', '-Fpz', '-Oz'}, elec.label);

cfg = [];
cfg.elec = elec;
cfg.channel = chansel;
cfg.template = 'fieldline_sensor.stl';
cfg.outwardshift = 2; % two mm away from the surface
[outcfg, sensor] = ft_sensorplacement(cfg, headshape);

Note that we shift the sensor 2 mm away from the headshape.

We now repeat the placement, but rather than reading the 15x13x35 mm sensor geometry from the STL file, we specify a single OPM sensor that consists of three channels corresponding to the x, y, and z-direction.

opm_single = [];
opm_single.label = {
    'x'
    'y'
    'z'
};
opm_single.coilpos = [
    0 0 0
    0 0 0
    0 0 0
];
opm_single.coilori = [
    1 0 0
    0 1 0
    0 0 1
];
opm_single.tra = eye(3);

We copy the OPM sensor for each of the channels and rotate and translate it as before.

cfg = [];
cfg.elec = elec;
cfg.channel = chansel;
cfg.template = opm_single;
cfg.outwardshift = 2 + 1 + 5; % IMPORTANT see below
[outcfg, opm_all] = ft_sensorplacement(cfg, headshape);

In the previous call we moved the sensor 2 mm away from the headshape. The STL design of the sensor holder has its bottom flush with the z=0 plane, and the STL design of the sensor itself has the sensor 1 mm shifted along the +z direction since there is a 1 mm rim to keep the sensor in place in the holder. Finally, the sensitive spot in the sensor is not at the bottom, but has an offset of 5 mm away from the bottom. Consequently, the outwardshift needs to be specified as 2+1+5.

Whereas we start with 19 sensors, since each sensor in this example is assumed to have three sensitive axes, each sensor contributes three channels to the grad structure. Each channel has a coilpos, coilori and label, as described in this frequently asked question. Note that FieldTrip uses the phrase “coils” just as for SQUID sensors, even though the OPM does not have coils.

The output opm_all is a structure array with 19 OPM sensors, where each sensor represents three channels. We combine all of them into a single grad structure.

grad = [];
grad.label = {};
grad.coilpos = zeros(0,3);
grad.coilori = zeros(0,3);
for i=1:length(chansel)
    lab{1} = [outcfg.channel{i} '_' all_opm(i).label{1}]; % _x
    lab{2} = [outcfg.channel{i} '_' all_opm(i).label{2}]; % _y
    lab{3} = [outcfg.channel{i} '_' all_opm(i).label{3}]; % _z
    grad.label = cat(1, grad.label, lab(:));
    grad.coilpos = cat(1, grad.coilpos, all_opm(i).coilpos);
    grad.coilori = cat(1, grad.coilori, all_opm(i).coilori);
end
grad.tra = eye(length(grad.label));

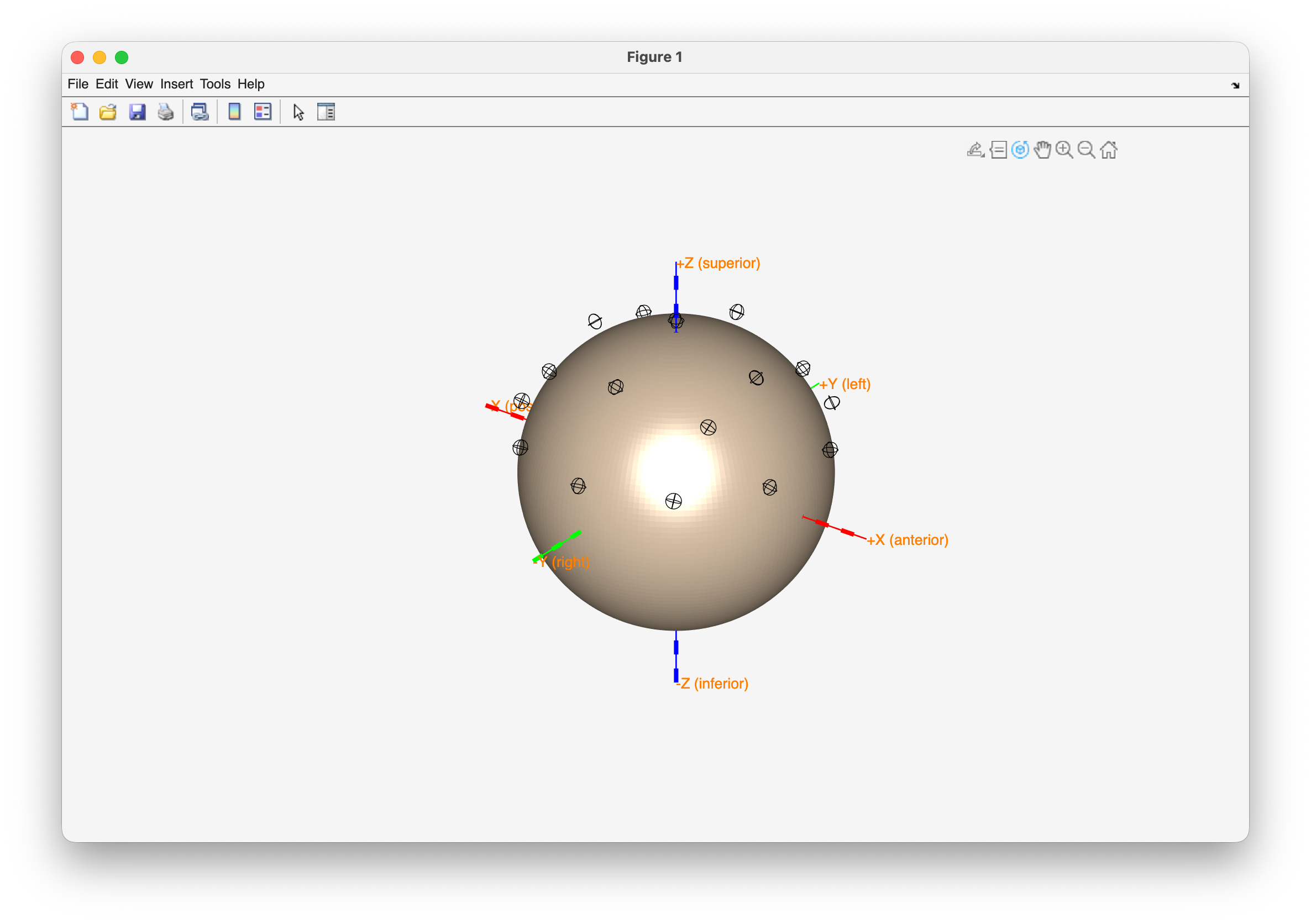

We can plot the resulting OPM sensor positions for all channels with ft_plot_sens.

figure
ft_plot_headshape(headshape, 'facecolor', 'skin', 'facealpha', 1, 'axes', 1);
ft_plot_sens(grad);
ft_headlight

or only with the z-oriented channels, including their labels.

ft_plot_sens(grad, 'chanindx', endsWith(grad.label, 'z'), 'label', 'label')

Layout for plotting

For 2D visualisation of the topographic distribution of the ERFs or TFRs you need a layout that maps the 3D sensor positions onto a 2D plane. For that you can use the grad structure, as explained in the layout tutorial.

Here is a short piece of code to make a simple layout.

cfg = [];
cfg.grad = grad; % this contains x, y, and z channels
cfg.channel = grad.label(endsWith(grad.label, 'z'));
cfg.rotate = 90;
cfg.feedback = 'yes';
layout = ft_prepare_layout(cfg);

More elaborate options are explained in the layout tutorial, and you may want to put some effort in making a really nice layout with a helmet shaped mask and outline, as you can see for some of the template layouts.

The layout above only includes the radially oriented channels, i.e., the channels in the z-direction, as the field distribution on these is the easiest to interpret. It is in principle possible to make layouts for all sensor orientations:

cfg = [];
cfg.grad = grad; % this contains x, y, and z channels
cfg.rotate = 90;
cfg.feedback = 'no';

cfg.channel = grad.label(endsWith(grad.label, 'x'));
layout_x = ft_prepare_layout(cfg);

cfg.channel = grad.label(endsWith(grad.label, 'y'));
layout_y = ft_prepare_layout(cfg);

cfg.channel = grad.label(endsWith(grad.label, 'z'));
layout_z = ft_prepare_layout(cfg);

cfg = [];
layout_xyz = ft_appendlayout(cfg, layout_x, layout_y, layout_z);

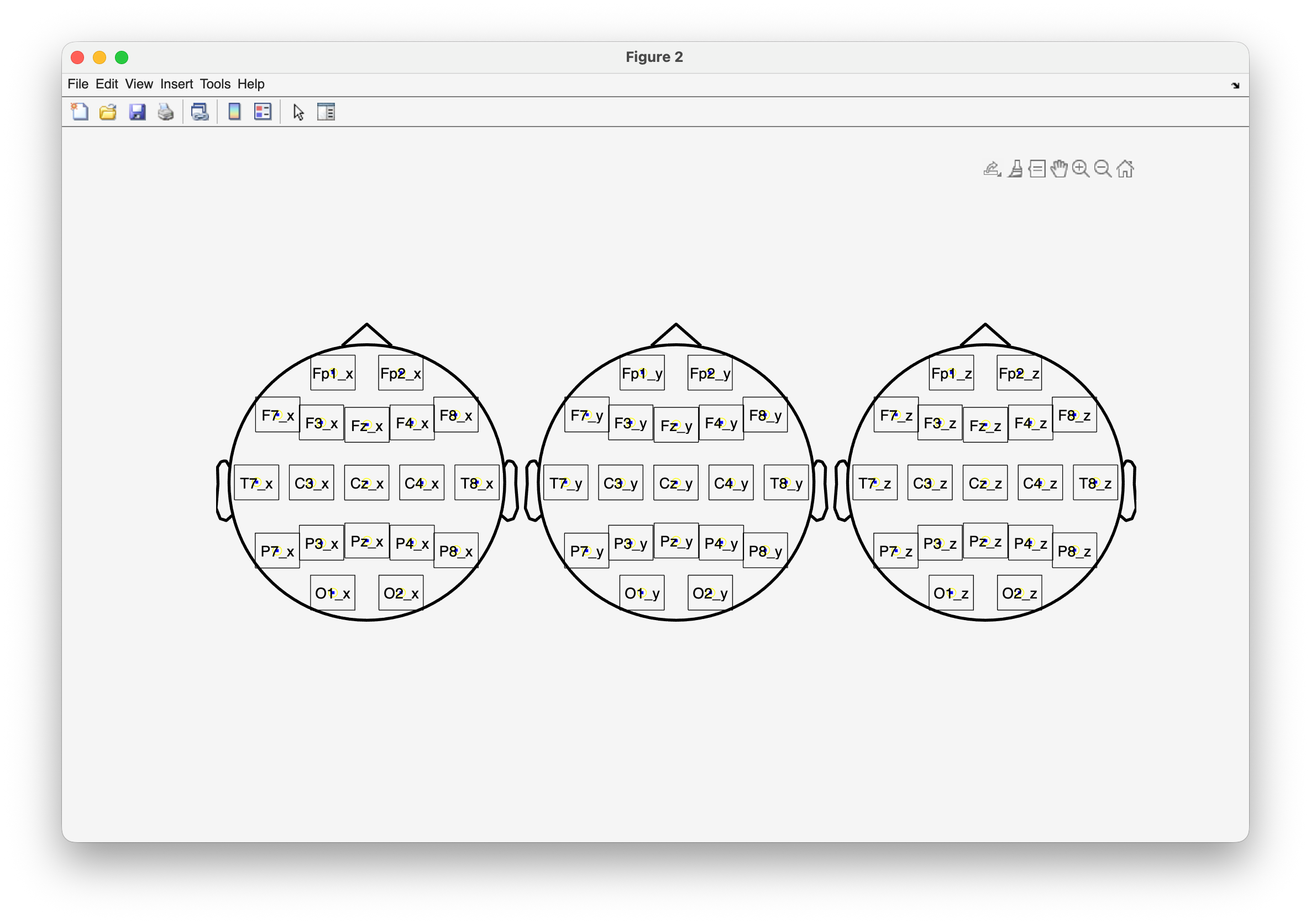

figure
ft_plot_layout(layout_xyz)

Summary and conclusion

This tutorial explains how to design 3D‑printable OPM helmets. We started by creating helmet shells from spherical geometric templates, from individual MRIs, or for population averages. We then looked at different ways of distributing OPM sensors using extended 10–20, equidistant, or interactive placement. In part 3 we looked at optimizing sensor orientations and rotations (important for bi‑ and tri-axial sensors) and in part 4 we assembled the actual helmet to be 3D printed by combining the shell, the holes and the sensor holders. Finally in the last part we constructed the grad structure for source modelling, and the layout for topographic plotting.

Throughout this tutorial we have mostly been working with a relatively simple geometry and with a small number of sensors to keep the procedure simple and fast. However, by combining part 1, 2, and 3 in a smart way, you can design arbitrarily complex OPM helmets for many sensors.

Not covered in this tutorial is how to do the actual 3D printing; for that we recommend that you team up with someone who has experience with that, or that you involve your technical support group or a 3D printing company. Important in the 3D design is that tolerances are considered (i.e. how tight is the fit of the components), that additional features of the helmet are added, like holes for the ears, or slits to attach a chin strap, and that sharp edges are avoided where possible by using fillets.

Also not covered in this tutorial is how to do the coregistration of the OPM sensors with the anatomical MRI or how to preprocess and analyze the OPM data in sensor and source space; for that we have separate tutorials.

See also these tutorials

• Coregistration of Optically Pumped Magnetometer (OPM) data
• OPM helmet design
• Preprocessing of Optically Pumped Magnetometer (OPM) data

See also these “getting started” pages with vendor specific details

• Getting started with Cerca OPM data
• Getting started with FieldLine OPM data
• Getting started with OPM data recorded at the FIL
• Getting started with QuSpin OPM data
